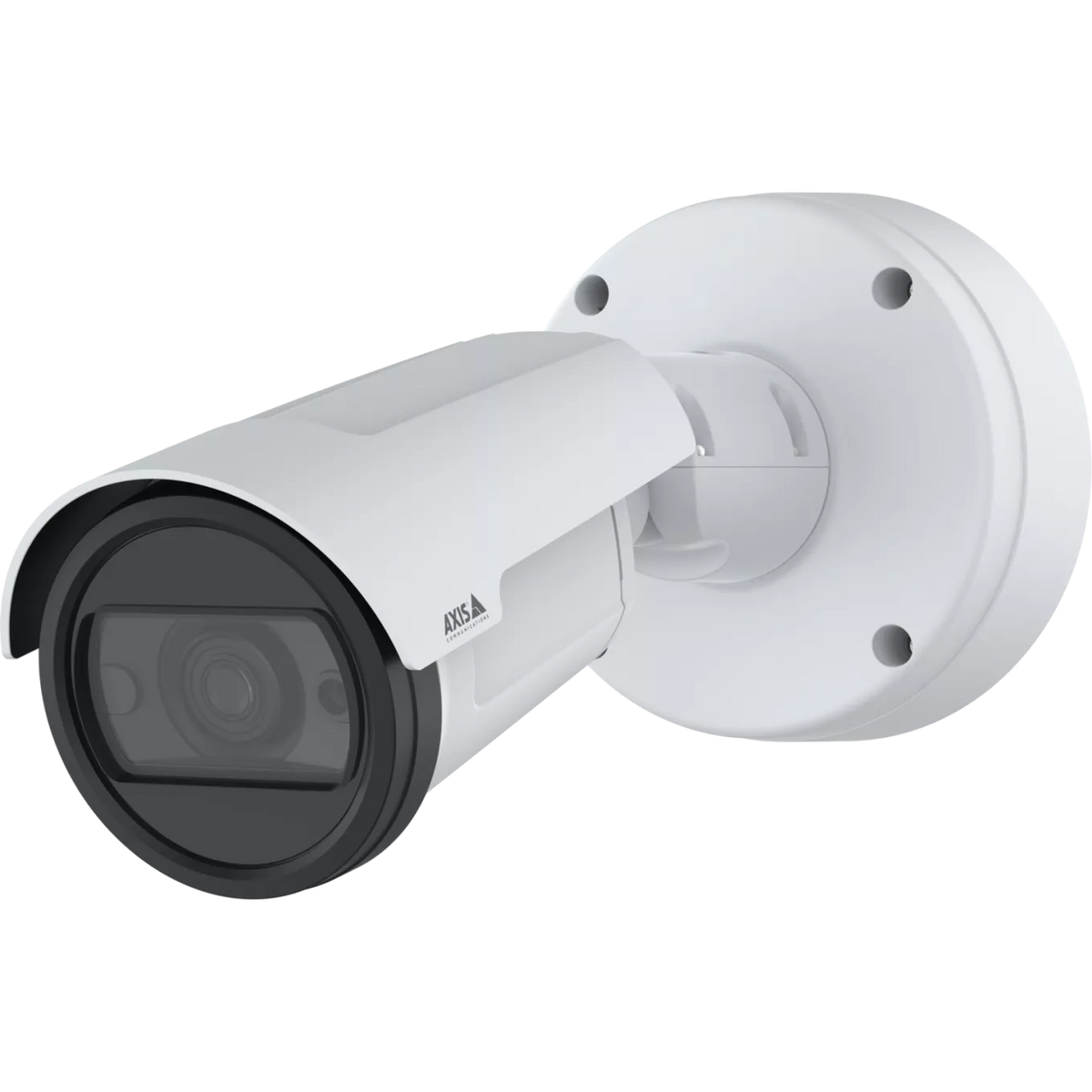

AXIS P1485-LE Kit 28mm License Plate Verifier (03619-001)
10.8-28.2 mm varifocal lens, 1920x1080 resolution, 7-20 m detection range, up to 105 km/h vehicle speed, OptimizedIR, IP66/IP67
$1,526.00
License Plate Recognition for Free-Flow Traffic
The AXIS P1485-LE Kit License Plate Verifier is an all-in-one LPR bullet camera kit designed for free-flow traffic applications. It combines a 2 MP network camera with AXIS License Plate Verifier preinstalled for edge-based license plate recognition. The camera uses a 1/2.8-inch progressive scan RGB CMOS sensor and a 10.8-28.2 mm varifocal P-iris lens. Its license plate capture system supports detection from 7 to 20 m and vehicle speeds up to 105 km/h with edge analytics, making it suitable for monitoring moving vehicles without requiring barrier-controlled traffic.
Key Benefits and Features
- Integrated LPR Analytics: AXIS License Plate Verifier is preinstalled and processes license plate recognition directly at the edge.
- Free-Flow Vehicle Capture: Supports vehicle speeds up to 105 km/h and single-lane coverage with edge analytics.
- Long-Range IR: OptimizedIR uses 850 nm IR LEDs with a reach of 45 m or more depending on the scene.
- Advanced Imaging: Lightfinder 2.0, Forensic WDR, Axis Zipstream, and electronic image stabilization support challenging surveillance conditions.
- Outdoor Protection: IP66/IP67, NEMA 4X, and IK10-rated casing supports deployment in demanding environments.
Ideal Use Cases
- Free-flow traffic license plate recognition
- Vehicle access and entry monitoring
- Parking and vehicle search applications
- Roadside and outdoor traffic surveillance
Technical Specifications
- Image Sensor: 1/2.8-inch progressive scan RGB CMOS
- Lens: Varifocal 10.8-28.2 mm, F1.7-1.76, P-iris, IR corrected
- Maximum Resolution: 1920x1080
- Detection Range: 7-20 m (23-66 ft)
- Vehicle Speed: Up to 105 km/h (65 mph) with edge analytics
- Processor: ARTPEC-9 with deep learning processing unit
- Memory: 2 GB RAM, 8 GB Flash
- PoE: IEEE 802.3af/802.3at Type 1 Class 3, max 12.95 W
- Network Interface: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T
- Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Deploy AXIS P1485-LE for Free-Flow LPR Applications
Choose the AXIS P1485-LE Kit for edge-based license plate recognition requiring long-range capture, high vehicle-speed support, integrated IR illumination, PoE connectivity, and rugged outdoor protection.
| Brand | AXIS |
| SKU | 03619-001 |
| Product Type | LPR bullet camera kit for free-flow traffic |
| Image Sensor | 1/2.8” progressive scan RGB CMOS |
| Lens | Varifocal, 10.8-28.2 mm, F1.7-1.76 |
| Resolution | 1920x1080 |
| PoE Support | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Power | Max 12.95 W, typical (heater off, IR off) 4.63 W |
| Weight | With weather shield: 1.38 kg (3 lb) |
| Color | White NCS S 1002-B |
| Material | Polycarbonate blend and aluminium |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| License Plate Detection Range | 7–20 m (23–66 ft) |
| Vehicle Speed | Up to 105 km/h (65 mph) with edge analytics |
| Coverage | Single lane with edge analytics |
| IR Illumination | OptimizedIR, 850 nm IR LEDs, range of reach 45 m (150 ft) or more depending on the scene |
| Mounting Height | 2 m to 8 m (7 ft to 26 ft) |
| Processor | ARTPEC-9 |
| Memory | 2 GB RAM, 8 GB Flash |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video Compression | H.264, H.265, AV1, Motion JPEG |
| Frame Rate | With Forensic WDR: up to 25/30 fps (50/60 Hz); no WDR: up to 50/60 fps (50/60 Hz) |
| WDR | Forensic WDR: up to 120 dB depending on scene |
| Image Processing | Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR |
| Network Interface | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| Storage | microSD/microSDHC/microSDXC card; network-attached storage (NAS) |
| Protection Rating | IP66, IP67, NEMA 4X, IK10 |
| Product Markings | CE, FCC, ICES, KC, RCM, VCCI, WEEE |
| USA EMC | FCC Part 15 Subpart B Class A |
| Network Security | IEEE 802.1X, IEEE 802.1AE, IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security, X.509 Certificate PKI, host-based firewall |
| Operating Humidity | 10–100% RH (condensing) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Storage Humidity | 5-95% RH (non-condensing) |
| Included | Camera; weathershield; installation guide; terminal block connector; connector guard; cable gaskets; owner authentication key |
| Compatible Accessories | AXIS T8415 Wireless Installation Tool; AXIS T91B47 Pole Mount; AXIS T94F01P Conduit Back Box; AXIS TM4101 Pendant Kit; AXIS Surveillance Cards |
