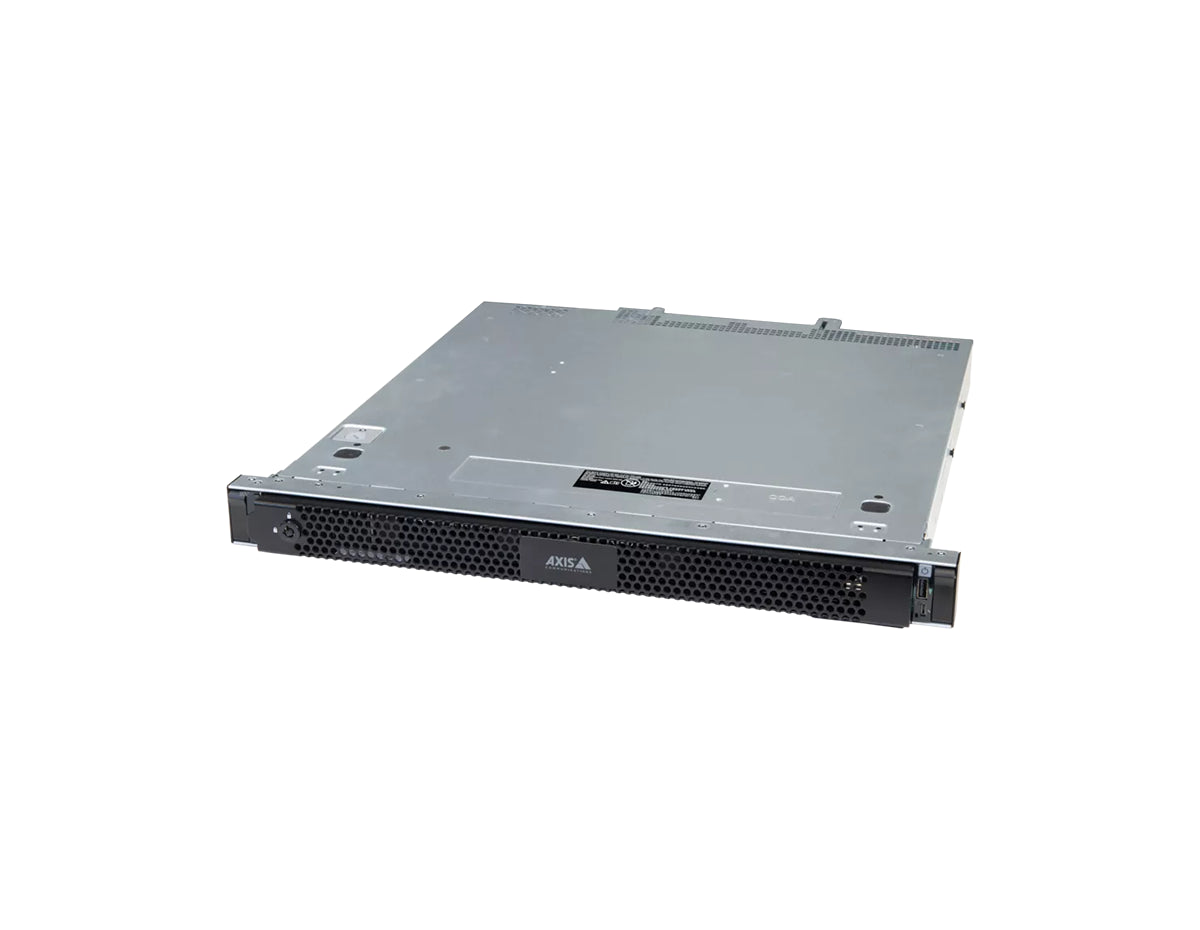

AXIS Camera Station S1228 Rack AI-Optimized Server 12 TB (03334-001)

Part Number: 03334-001

Technical Details

High-performance 1U rack-mounted AI-optimized recording and analytics server with 12 TB HDD storage, Nvidia A-series GPU, FIPS 140-2 level 2 TPM 2.0, and 28 Axis Camera Station Pro licenses.
$11,122.00
-
+

The AXIS Camera Station S1228 Rack AI-Optimized Server is designed for demanding, high-density video analytics and AI-assisted surveillance. Its Nvidia A-series GPU and Intel Xeon CPU enable state-of-the-art object detection and classification, especially in environments with heavy motion activity.

Compliant with NDAA and TAA regulations and equipped with FIPS 140-2 level 2 TPM, Secure Boot, and support for encrypted drives, this system offers strong cybersecurity protections while delivering powerful search and monitoring capabilities through Smart Search and free-text object lookup functions.

AI-Accelerated Video Analytics and Recording Server

  • AI-optimized processing for free-text object search and Smart Search analytics
  • High-speed GPU-accelerated object classification for busy environments
  • Pre-loaded with 28 ACS Pro licenses for immediate deployment
  • Secure platform with FIPS 140-2 level 2 TPM, Secure Boot, SBOM
  • Server-grade hardware for continuous 24/7 operation

Ideal Use Cases

  • Large retail and mall surveillance
  • Transportation hubs (airports, rail, metro)
  • Smart city camera deployments
  • Industrial and logistics facilities
  • Corporate security operations centers

Technical Specifications Summary

  • CPU: Intel Xeon E processor
  • GPU: Nvidia A-Series
  • Memory: 32 GB DDR4
  • Storage: 12 TB HDD + 960 GB SSD (Smart search DB) + 480 GB SSD (OS)
  • AI Capacity: Up to 3000 classifications/min @1080p
  • Security: Support for encrypted drives; FIPS 140-2 L2 TPM; Secure Boot
  • OS: Windows 11 IoT Enterprise LTSC 2024

Upgrade Your Operations

Deploy this AI-ready analytics and recording platform to accelerate search, improve surveillance efficiency, and strengthen security.

Properties

Model AXIS Camera Station S1228 Rack AI-Optimized Server 12 TB (03334-001)
Operating System Windows 11 IoT Enterprise LTSC 2024
CPU Intel Xeon E processor
GPU Nvidia A series
Memory 32 GB (2 × 16 GB)
Storage 12 TB Enterprise HDD + 960 GB SSD (Smart search DB) + 480 GB SSD (OS drive)
Form Factor 1U rack-mount
Dimensions 496.74 × 482 × 42.8 mm (19.56 × 19 × 1.68 in)
Weight 8.5 kg (18.7 lb)
Operating Temperature 10 °C to 35 °C (50 °F to 95 °F)
Humidity 8–80% RH (non-condensing)
Power Supply 450 W Platinum PSU (100–240 V AC, 6.5–3.5 A, 50/60 Hz)
Compliance NDAA FY19 & FY2023, TAA compliant
Chassis Depth (installation) 461.14 mm (18.16 in)

Specifications

Performance Up to 300 Mbit/s total recording bitrate; qualified for 64 doors and 32 video channels
AI Classification Capacity 1080p: 3000/min; 720p: 5500/min
Licensing 28 Axis Camera Station Pro Core Device NVR licenses + 10 Axis Audio Manager Pro licenses
RAID Options Supported RAID: 0, 1
Network Ports 2 × RJ45 1 Gbps, 1 × iDRAC dedicated Ethernet
USB Ports Front: 1 × USB 2.0; Rear: 1 × USB 2.0, 1 × USB 3.2
Display Connectivity 1 × VGA, 4 × Mini DisplayPort
Security Features Support for encrypted OS and recording drive; FIPS 140-2 level 2 TPM 2.0; Secure Boot; SBOM
Remote Management iDRAC 9 basic
Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F), 5–95% RH (non-condensing)
EMC Certifications EN 55035, EN 55024, EN 55032 Class A, FCC Class A, ICES-3(A)/NMB-3(A), VCCI Class A, etc.
Safety Certifications IEC/EN/UL 62368-1

Accessories

Included Dell Ready Rails 1U static rails; C13-to-C14 rack PDU power cable
Optional accessories Axis workstations; Enterprise hard drives
