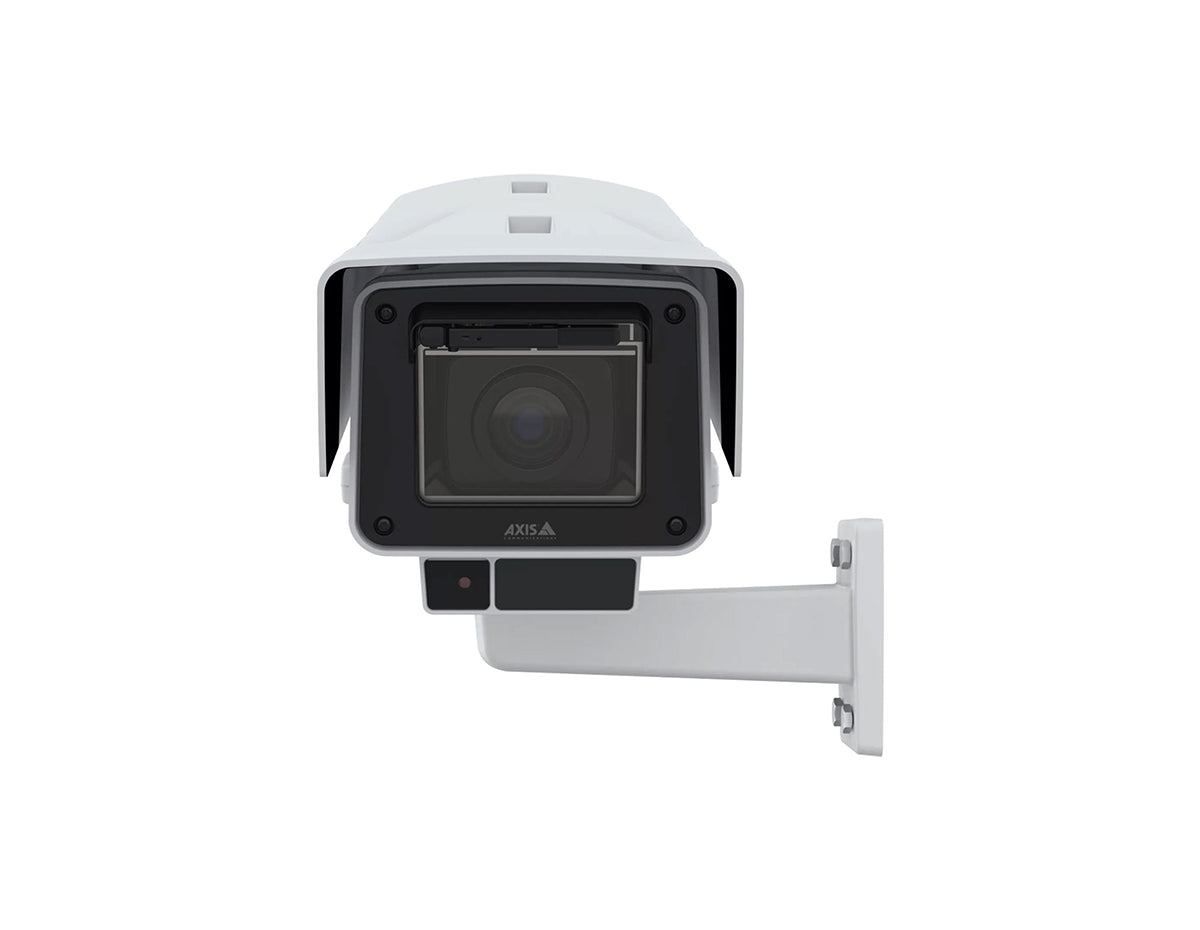

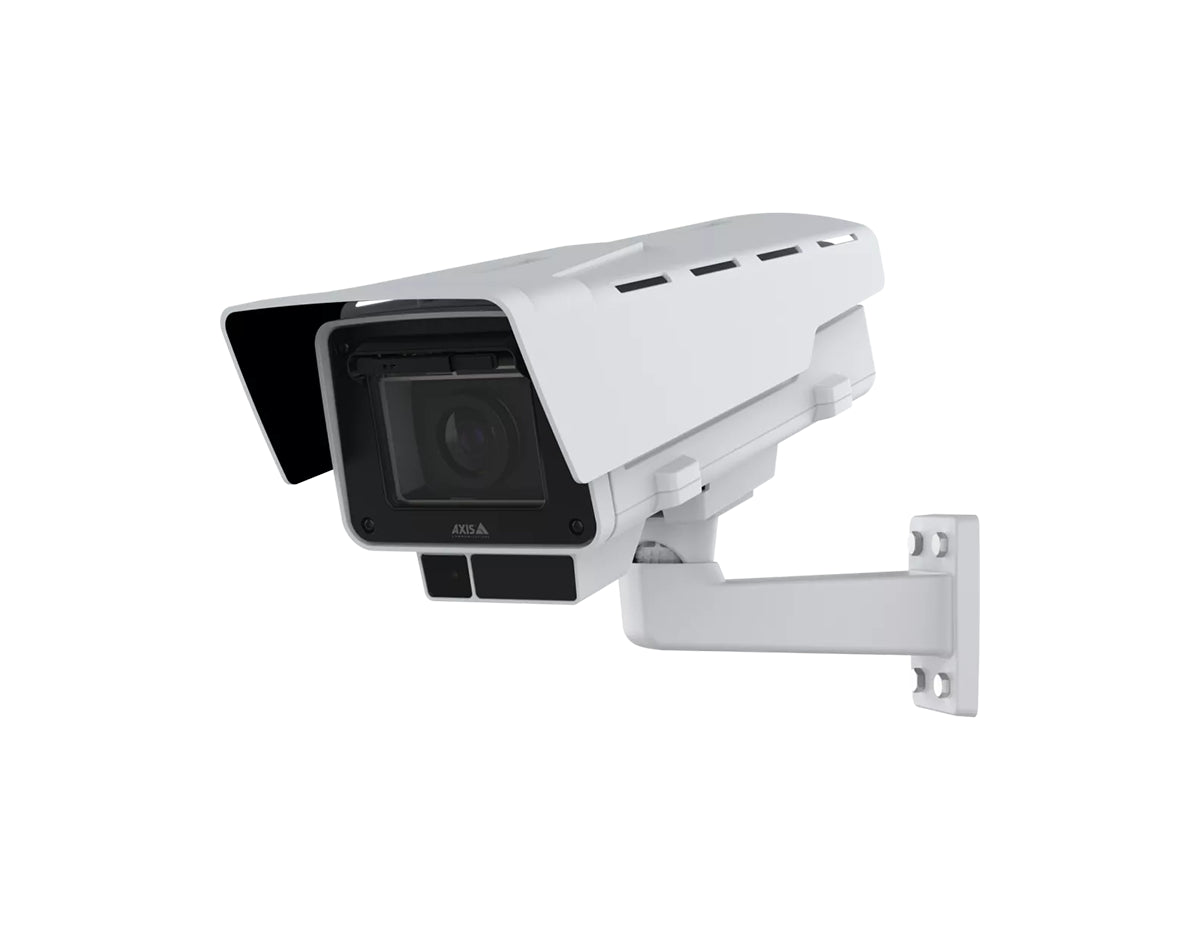

The AXIS Q1728-LE 48 mm Block Camera delivers long-range 4K telephoto imaging using a large 1/1.2" sensor and a precision 48 mm varifocal lens. Lightfinder 2.0, Forensic WDR, and OptimizedIR ensure consistent detail in difficult lighting environments, while the rugged IP66/IP67/IK10/NEMA 4X housing enables operation in harsh outdoor conditions.
Powered by the ARTPEC-9 SoC with a deep learning processing unit, it supports advanced analytics such as AXIS Object Analytics, Scene Metadata, Image Health Analytics, and Live Privacy Shield. Zipstream with AV1, H.264, and H.265 reduces bandwidth and storage, and Axis Edge Vault provides high-assurance protection through secure boot, signed OS, and a certified hardware keystore.
Long-Range 4K Tele Lens Surveillance with Deep Learning Analytics
- Capture distant subjects clearly with the 48 mm tele lens and 1/1.2'' sensor.
- Reliable imaging in challenging light with Lightfinder 2.0, Forensic WDR, and OptimizedIR.
- Run advanced analytics directly on-device via ARTPEC-9 DLPU.
- Reduce bandwidth and storage use with AV1-enabled Zipstream.
- Deploy in harsh environments with IP66/IP67, IK10, and NEMA 4X durability.
- Protect the system with Axis Edge Vault and hardened cybersecurity controls.
Ideal Use Cases
- Long-range perimeter and fence-line monitoring.
- Transportation corridors and traffic observation.
- Critical infrastructure and industrial security.
- Ports, logistics hubs, and large open-area surveillance.
- Installations requiring strong cybersecurity and long-distance detail capture.
Technical Specifications Summary
- Image sensor: 1/1.2'' progressive scan CMOS, 2.9 µm
- Lens: 48 mm varifocal 15.2–48.7 mm, F1.7, HFOV 42°–13°
- Video: 4K up to 25/30 fps with WDR or 50/60 fps without WDR; H.264/H.265/AV1
- IR & low light: OptimizedIR 850 nm; Lightfinder 2.0; Forensic WDR up to 120 dB
- Analytics: Object Analytics, Scene Metadata, Image Health Analytics, Privacy Shield
- Cybersecurity: Edge Vault, secure boot, signed OS, MACsec, IEEE 802.1X, TLS 1.3
- Ruggedness: IP66/IP67, IK10, NEMA 4X; -40 °C to 60 °C
- Power: PoE or 10–28 V DC, max 25.5 W
Upgrade Your Operations
Deploy long-range 4K telephoto surveillance with onboard AI analytics and robust cybersecurity for mission-critical outdoor environments.
