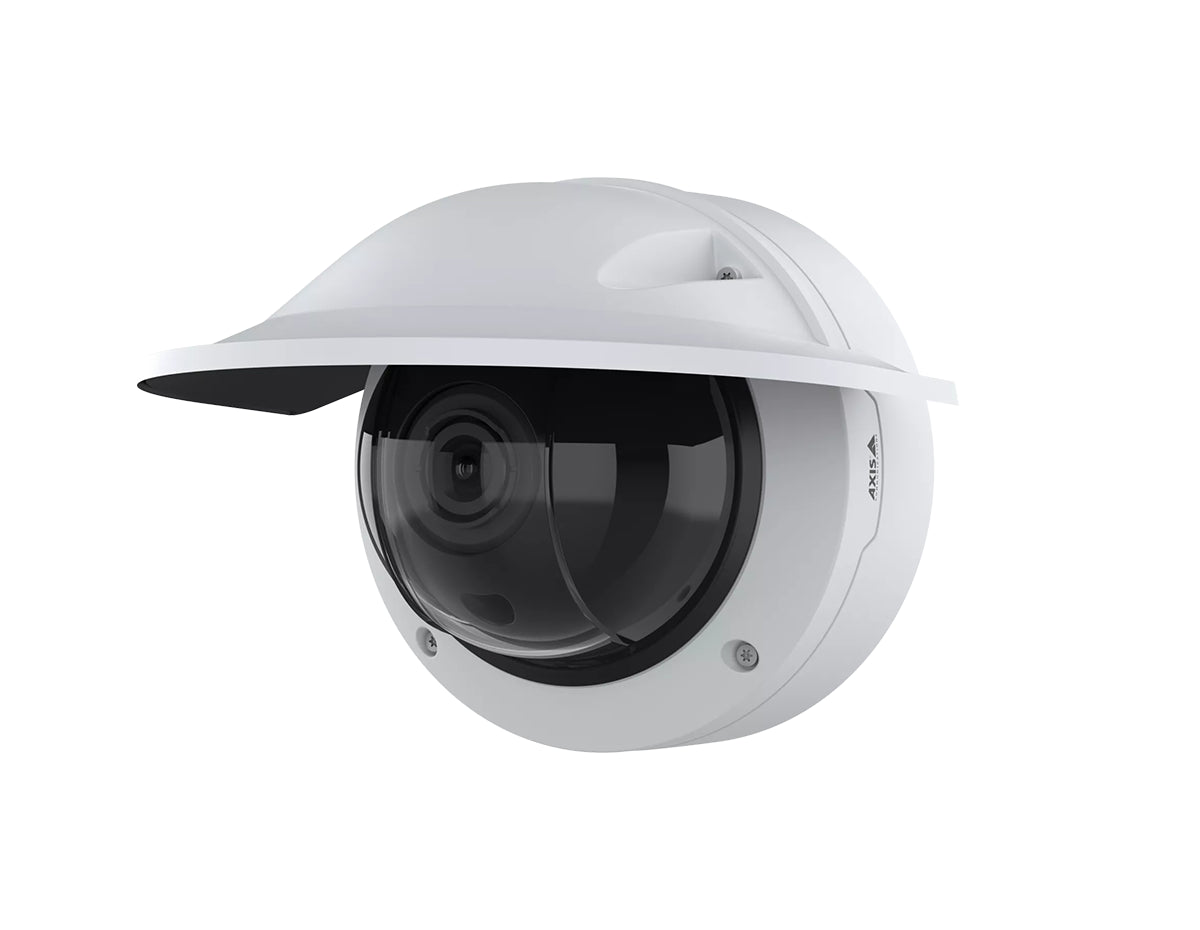

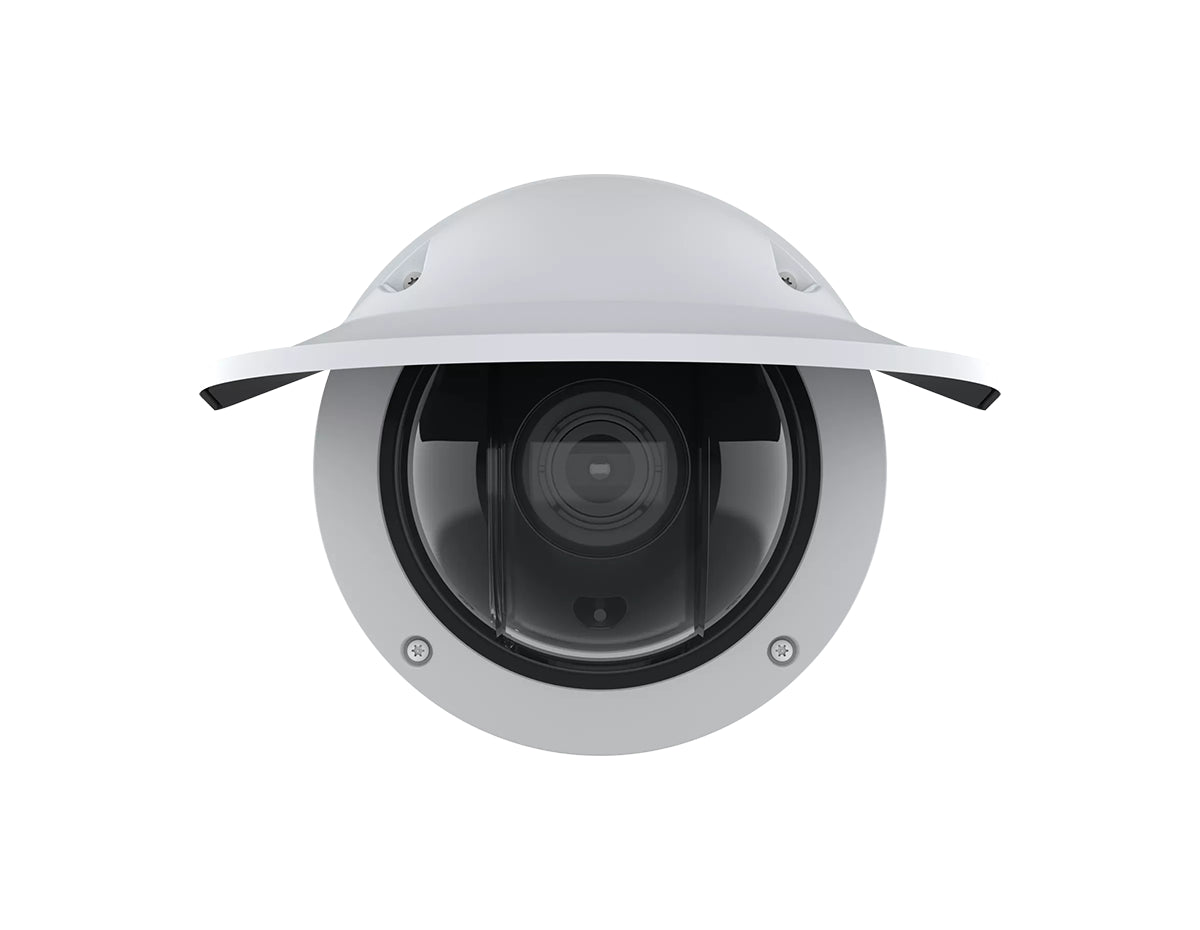

AXIS Q3558-LVE Dome Camera (03206-001)

Name: AXIS Q3558-LVE Dome Camera (03206-001)
Brand: Axis
Price: 1781.0 USD
Availability: InStock

Part Number: 03206-001

Technical Details

Advanced 8 MP AI-powered outdoor dome with OptimizedIR, Forensic WDR, Lightfinder 2.0, AXIS Audio Analytics, and Axis Edge Vault cybersecurity.

$1,781.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

High-Performance 8 MP AI Dome Built for Harsh Outdoor Environments

AXIS Q3558-LVE Dome Camera is an advanced 8 MP AI-powered outdoor dome built on the ARTPEC-9 SoC with a dedicated deep learning processing unit. It delivers outstanding forensic image quality in 4K resolution, even in harsh weather and challenging lighting, thanks to Forensic WDR, Lightfinder 2.0, and an IR-shielded dome with OptimizedIR for clear, reflection-free video in total darkness.

With AXIS Audio Analytics and an integrated acoustic sensor, it can detect and classify critical sound events including screams, shouts, speech, and glass break. Axis Edge Vault provides hardware-based cybersecurity with secure boot, signed OS, encrypted storage, and secure hardware keystore protection.

Key Benefits

Outstanding 8 MP image quality with Forensic WDR and Lightfinder 2.0
Next-generation AI analytics on the edge with ARTPEC-9 and DLPU
AXIS Audio Analytics with integrated acoustic detection
OptimizedIR with IR-shielded dome for flawless nighttime performance
Robust cybersecurity with Axis Edge Vault hardware security
Rugged outdoor design: IP66/IP69/IP6K9K, IK10, NEMA 4X
Flexible installation with remote zoom/focus and multi-mount compatibility

Ideal Use Cases

Critical infrastructure and perimeter security
City surveillance and transportation hubs
Industrial and logistics sites
Campuses and commercial facilities
Environments requiring 24/7 AI analytics and audio detection

Technical Specifications Summary

Image sensor: 1/1.2" progressive scan RGB CMOS, 8 MP, 2.9 μm pixel size
Lens: 6.3–13 mm varifocal, F1.6–2.9, IR-corrected with P-Iris
Video: Up to 4K (3840×2160) at 50/60 fps (no WDR); H.264/H.265/AV1/MJPEG
WDR & low light: Forensic WDR up to 120 dB; Lightfinder 2.0
IR: OptimizedIR with 60 m+ range
Analytics: AXIS Object Analytics, Audio Analytics, Scene Metadata, Live Privacy Shield
Power: PoE+ or 8–28 V DC, max 25.5 W
Durability: IP66/IP69/IP6K9K, IK10, NEMA 4X
Storage: microSD/microSDHC/microSDXC with AES-XTS 256-bit encryption

Upgrade Your Operations

Deploy AXIS Q3558-LVE to combine 8 MP forensic image quality, AI-powered analytics, and robust audio-aware detection in a hardened outdoor dome ideal for mission-critical surveillance.

Properties

Model	AXIS Q3558-LVE Dome Camera (03206-001)
Product Type	Dome Camera
Image Sensor	1/1.2" progressive scan RGB CMOS
Lens	Varifocal 6.3–13 mm, F1.6–2.9; IR-corrected; remote zoom & focus; P-Iris control
Zoom	2x optical zoom
IR Illumination	OptimizedIR with 850 nm LEDs; reach up to 60 m (195 ft) or more depending on scene
WDR	Forensic WDR up to 120 dB (scene dependent)
Minimum Illumination	Color: 0.04 lux at 50 IRE, F1.6; B/W: 0 lux at 50 IRE, F1.6; 0 lux with IR illumination on
Power	PoE IEEE 802.3at Type 2 Class 4; 8–28 V DC, max 25.5 W
Operating Conditions	-50 °C to 55 °C (-58 °F to 131 °F); start-up down to -40 °C; 10–100% RH (non-condensing)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); 5–95% RH (non-condensing)
Casing	IP66/IP69/IP6K9K, NEMA 4X, IK10-rated aluminum casing with polycarbonate hard-coated dome and weathershield
Dimensions	Effective Projected Area (EPA): 0.041 m² (0.44 ft²)
Weight	2310 g (5.1 lb)
Network	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Storage	microSD/microSDHC/microSDXC with SD card encryption (AES-XTS-Plain64 256-bit); NAS recording support
Cybersecurity	Axis Edge Vault, signed OS, secure boot, encrypted filesystem, secure keystore (FIPS 140-2 Level 1, CC EAL 6+)
Certifications	UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE; IP66/IP69; IK10; ISO 20653 IP6K9K; NEMA 4X; TAA compliant

Specifications

Image Sensor	1/1.2" progressive scan RGB CMOS; pixel size 2.9 μm
Lens & Optics	Varifocal 6.3–13 mm, F1.6–2.9 Horizontal FoV: 104°–50°; Vertical FoV: 56°–28° Minimum focus distance: 0.50 m (1.64 ft) IR-corrected, P-Iris control, remote zoom & focus
Video	Video compression: H.264, H.265, AV1, Motion JPEG Resolutions: – 16:9: up to 3840×2160 – 16:10: up to 1280×800 – 4:3: up to 2880×2160 Frame rate: – With Forensic WDR: up to 25/30 fps – Without WDR: up to 50/60 fps Up to 20 unique and configurable video streams Axis Zipstream for H.264/H.265/AV1; VBR/ABR/MBR; low latency mode
Imaging Features	Forensic WDR (up to 120 dB) Lightfinder 2.0 2D/3D noise reduction Defog, barrel distortion correction Electronic image stabilization (EIS) Image rotation 0°/90°/180°/270° including corridor format Mirroring, privacy masks, overlays, widget support
Processing & SoC	ARTPEC-9 SoC DLPU (Deep Learning Processing Unit) 4 GB RAM; 8 GB Flash
Analytics	Preinstalled: AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection Supported: AXIS Perimeter Defender, AXIS License Plate Verifier Object classes: humans, vehicles Scenarios: line crossing, object in area, time in area, crossline counting, occupancy, tailgating, PPE monitoring (beta)
Audio	Integrated acoustic sensor AXIS Audio Analytics with audio level detection, adaptive audio detection, and AI-based classification (scream, shout, glass break, speech)
Network Protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT 3.1.1, secure syslog, ZeroConf
Security	Axis Edge Vault platform Signed OS, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit) Secure keystore (FIPS 140-2 Level 1, CC EAL 6+) IEEE 802.1X, MACsec, HTTPS/HSTS, TLS 1.2/1.3, host-based firewall
IR Illumination	OptimizedIR with 850 nm LEDs Range: 60 m (195 ft) or more
Power	PoE IEEE 802.3at Type 2 Class 4, max 25.5 W, typical 6.9 W (heater/IR off) 8–28 V DC, max 25.5 W, typical 6.9 W Integrated power meter
Environmental	Operating: -50 °C to 55 °C Start-up: -40 °C Humidity: 10–100% RH Tested to IEC 60068-2 standards NEMA TS 2 max temp: 74 °C
Mechanical	IP66/IP69/IP6K9K, IK10, NEMA 4X EPA: 0.041 m² (0.44 ft²) Weight: 2310 g (5.1 lb)
Storage	microSD/microSDHC/microSDXC AES-XTS-Plain64 256-bit SD card encryption NAS recording support
Mounting Options	Bracket with junction box hole patterns ¾" (M25) conduit entries
Approvals	UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE EMC: CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-series Safety: CAN/CSA C22.2 No.62368-1, IEC/EN/UL 62368-1, IEC/EN 62471 exempt Environment: IP66/IP69, IK10, ISO 21207 Method B, ISO 20653 IP6K9K, NEMA 250 Type 4X Supply chain: TAA compliant Cybersecurity: ETSI EN 303 645, NIST SP500-267, FIPS 140

Accessories

Included	Camera, weathershield, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS T8415 Wireless Installation Tool AXIS TQ3204-E Recessed Mount AXIS TQ3103-E Pendant Kit AXIS Surveillance Cards AXIS TQ3818-E Dome Smoked
