AXIS P7701 VIDEO DECODER (0319-004)
| Model: | 0319-004 |
| Detail: |
Connects to both digital (DVI) and analog (RCA composite) monitors, Automatically displays alarm-triggered video for immediate monitoring, NTSC 720x480, PAL 720x576, VGA, SVGA, and HDTV 720p.,
< |
| List Price: | |
| Price: | $515.00 |
| You Save: | $24.00 (4% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

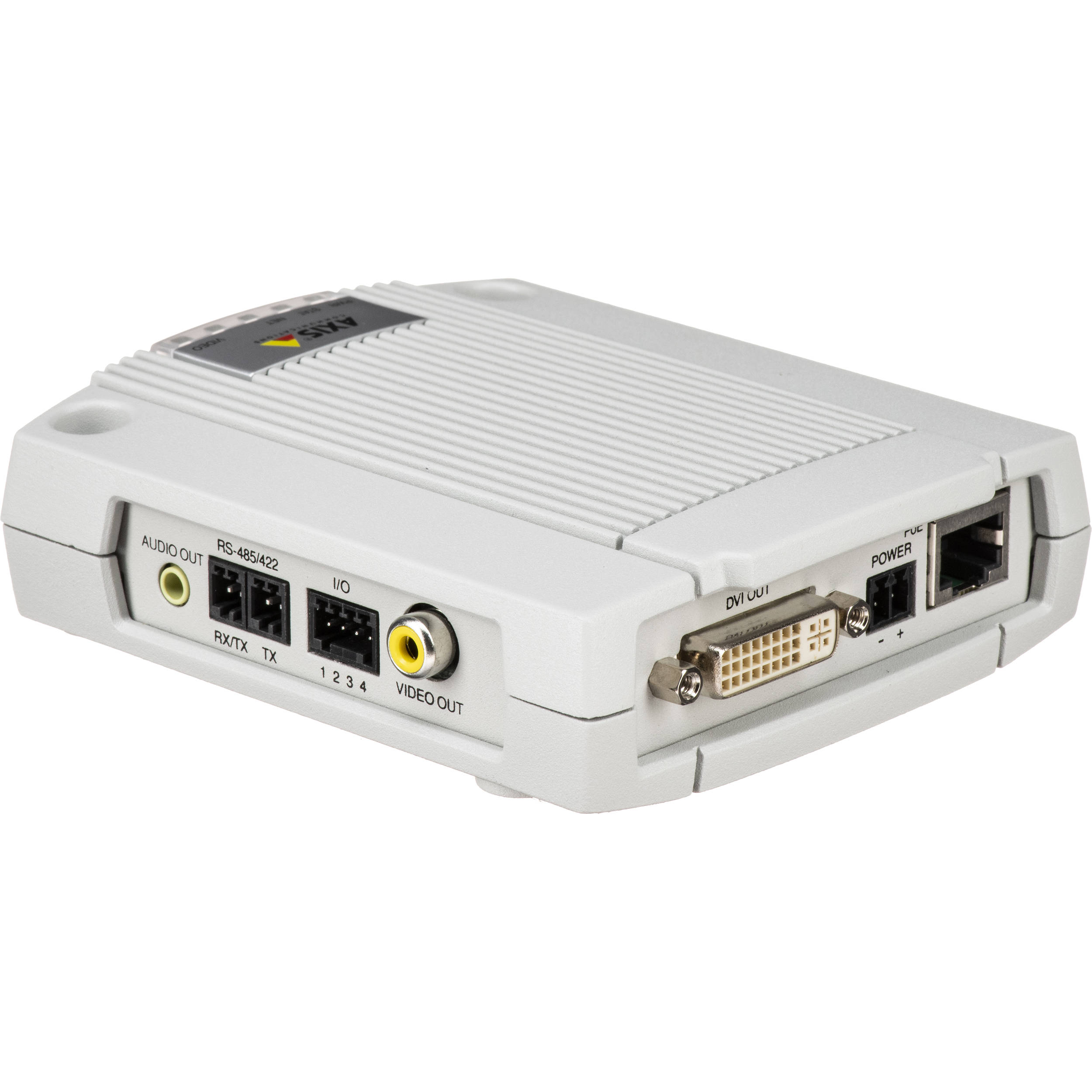

AXIS P7701 Video Decoder
The AXIS P7701 Video Decoder is a full-featured solution that enables digital and analog monitors to display live video from Axis network cameras and video encoders. It supports decoding of video streams in H.264, MPEG-4, and Motion JPEG, making it an ideal choice for surveillance systems requiring reliable video display without the need for a PC. With Power over Ethernet (PoE) support, it simplifies installation by reducing the need for additional power cables. The AXIS P7701 is perfect for use with public view monitors and for offloading decoding tasks from video management systems.
Key Features:
- Full Frame Rate Video Decoding: Supports H.264, MPEG-4, and Motion JPEG video streams up to D1 resolution for H.264 and MPEG-4, and up to 720p for Motion JPEG.
- Digital and Analog Output: Connects to both digital (DVI) and analog (RCA composite) monitors for flexible display options.
- Power over Ethernet (PoE): Simplifies installation by powering the device through an Ethernet cable.
- Auto-Connect on Alarm: Automatically displays alarm-triggered video for immediate monitoring.
- High-Quality Audio Support: Decodes audio streams in AAC, G.711, and G.726 formats.
- RS-485/RS-422 Serial Port: Allows serial commands to be sent to legacy equipment in the surveillance system.
Technical Specifications:
- Video Compression: H.264, MPEG-4, Motion JPEG
- Resolutions: H.264 and MPEG-4 up to D1 (720x480 NTSC, 720x576 PAL); Motion JPEG up to 720p (1280x720)
- Audio Compression: AAC, G.711, G.726
- Video Output: NTSC 720x480, PAL 720x576, VGA, SVGA, and HDTV 720p
- Network: 10/100 Mbps Ethernet with PoE support
- Operating Conditions: 0-50 °C (32-122 °F)
- Dimensions: 99 x 118 x 33 mm (3.9 x 4.6 x 1.3 in)
- Weight: 318 g (0.70 lb)
For more information about the AXIS P7701 Video Decoder, visit the Axis product page.
Specifications
| Supported Protocols | TCP/IP, HTTP, HTTPS, RTP, RTSP, UDP, IGMP, SMTP, DHCP, NTP, DNS |
| Network Speed | 10/100 Mbps Ethernet, compatible with PoE IEEE 802.3af for simplified cabling |
| Bandwidth Usage | Optimized for efficient decoding of multiple video streams; supports H.264 compression to reduce bandwidth requirements |
| Temperature Range | Tested for stable performance between 0 °C and 50 °C (32 °F to 122 °F) |
| Humidity Range | Supports non-condensing humidity levels between 20% and 80% |
| Audio Compression | AAC (16 kHz, 32 kHz), G.711, G.726 formats supported for compatibility with multiple devices |
| LED Indicators | Power and network status indicators for easy monitoring of device status |
| Power Consumption | Max 5 W via PoE for efficient energy usage |
| Dimensions | Compact form factor: 99 x 118 x 33 mm (3.9 x 4.6 x 1.3 in) |
| Weight | 318 g (0.70 lb) for lightweight installation on walls or surfaces |
| Reliability | Tested for continuous operation in controlled environments for 72 hours with stable video and audio decoding |
| Vibration Resistance | Tested for operational stability under vibrations up to 2 Hz |
| Color | Black, designed to blend seamlessly into security setups |
| Compliance | CE, FCC, RoHS compliant for safe and eco-friendly usage |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU) |
| Firmware Updates | Supports remote firmware updates for enhanced security |
| Maintenance | Minimal; designed for long-term performance without frequent servicing |
| Noise Level | Passive cooling for silent operation without fans |
| Mounting Options | Supports wall and surface mounting with optional brackets |
Properties
| Product Name | AXIS P7701 Video Decoder |
| Description | The AXIS P7701 Video Decoder enables live video display from Axis network cameras and video encoders on digital and analog monitors. Supporting multiple video compression formats, it provides flexible video output options and is ideal for surveillance setups requiring reliable display without a PC. Power over Ethernet (PoE) simplifies installation by reducing the need for extra power cables. |
| Supported Video Compression | H.264, MPEG-4, Motion JPEG |
| Maximum Resolution | Up to D1 (720x480 NTSC, 720x576 PAL) for H.264 and MPEG-4; up to 720p (1280x720) for Motion JPEG |
| Audio Support | AAC, G.711, G.726 decoding for high-quality audio playback |
| Video Output | Supports NTSC (720x480), PAL (720x576), VGA, SVGA, and HDTV 720p resolutions |
| Power Supply | Power over Ethernet (PoE) IEEE 802.3af |
| Dimensions | 99 x 118 x 33 mm (3.9 x 4.6 x 1.3 in) |
| Weight | 318 g (0.70 lb) |
| Installation Type | Plug-and-play with PoE for simple setup |
| Alarm Response | Auto-connect feature for alarm-triggered video display |
| Audio Out | Supports RCA output for audio playback |
| RS-485/RS-422 Serial Port | Enables control of legacy surveillance equipment |
