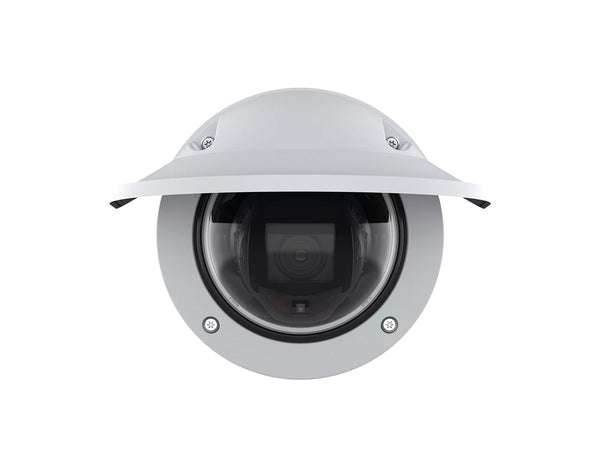

AXIS P3277-LVE 5 MP Outdoor Dome Camera (03153-001)

AXIS P3277-LVE 5 MP Outdoor Dome Camera (03153-001)

Name: AXIS P3277-LVE 5 MP Outdoor Dome Camera (03153-001)
Brand: Axis
Price: 1092.0 USD
Availability: InStock

Part Number: 03153-001

Technical Details

5 MP image sensor, AI-powered edge analytics, Lightfinder 2.0 and Forensic WDR, OptimizedIR up to 40 m, IK10 and IP66 outdoor-rated dome

$1,092.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AI-Powered 5 MP Surveillance for Demanding Outdoor Sites

AXIS P3277-LVE Dome Camera delivers sharp 5 MP video with advanced AI analytics at the edge, so you can detect and verify events faster while reducing false alarms. Built on the ARTPEC-9 system-on-chip with deep learning processing, it provides excellent detail in complex scenes, day or night, even in harsh outdoor environments.

Key Benefits & Features

5 MP forensic image quality: Capture critical evidence with 5 MP resolution, Lightfinder 2.0, Forensic WDR up to 120 dB, and low noise.
Next-generation AI analytics: AXIS Object Analytics classifies humans and vehicles, enabling accurate detection, tracking, counting, and occupancy monitoring.
Robust outdoor-ready design: IK10 vandal resistance, IP66 and NEMA 4X ratings, and -40 °C to 50 °C operating range for exposed sites.
Flexible connectivity and storage: PoE power, audio and I/O ports, plus encrypted microSD card and NAS recording options.
Hardened cybersecurity: Axis Edge Vault with secure boot, signed OS, and secure keystore helps protect identities, keys, and video.

Ideal Use Cases

Perimeter protection for industrial plants, utilities, data centers, and logistics yards.
City surveillance for streets, campuses, and public facilities requiring 24/7 monitoring.
Transportation hubs, parking areas, and loading docks needing reliable incident verification.
High-risk entrances, gates, and building exteriors where vandal resistance is essential.

Technical Specifications

Image sensor: 1/2.8" progressive scan RGB CMOS.
Resolution: Up to 2592 x 1944 (5 MP) at 25/30 fps.
Lens: Varifocal 3.0-8.5 mm, F1.38-2.58, 104°-34° horizontal field of view.
Minimum illumination: 0.1 lux color, 0.03 lux B/W at 50 IRE, 0 lux with IR on.
IR illumination: OptimizedIR 850 nm LEDs with up to 40 m range depending on scene.
Video compression: H.264, H.265, AV1, Motion JPEG, plus Axis Zipstream.
Enclosure and ratings: Outdoor IP66, NEMA 4X, IK10 impact resistant dome housing.
Power: PoE IEEE 802.3af/802.3at Type 1 Class 3, max 12.6 W, 4.7 W typical.
Onboard analytics: AXIS Object Analytics with human and vehicle classification.
Edge storage: microSD/microSDHC/microSDXC slot with SD card encryption and NAS support.

Secure Your Perimeter with AXIS P3277-LVE

Strengthen your outdoor video surveillance with AI-powered AXIS P3277-LVE Dome Camera and gain reliable forensic detail in any light. Order today to deploy high-performance, future-ready protection.

Properties

Model	AXIS P3277-LVE
SKU	03153-001
Brand	Axis Communications
Product Type	Outdoor 5 MP AI-powered dome camera
Image Sensor	1/2.8" progressive scan RGB CMOS
Pixel Size	2.0 um
Maximum Resolution	2592 × 1944 (5 MP)
Available Resolutions	2560 × 1440 (16:9); 1920 × 1200 (16:10); 2592 × 1944 (4:3)
Lens	Varifocal 3.0-8.5 mm, F1.38-2.58, IR-corrected, remote zoom and focus, P-Iris control
Field of View	Horizontal 104°-34°; Vertical 76°-26°
Minimum Illumination	Color: 0.1 lux at 50 IRE, F1.38; B/W: 0.03 lux at 50 IRE, F1.38; 0 lux with IR illumination on
Day & Night	Automatic IR-cut filter
Wide Dynamic Range	Forensic WDR, up to 120 dB depending on scene
Low-light Technology	Lightfinder 2.0
IR Illumination	OptimizedIR, 850 nm IR LEDs; range up to 40 m (130 ft) or more depending on scene
Video Compression	H.264 (Baseline, Main, High); H.265 (Main); AV1; Motion JPEG
Max Frame Rate	Up to 25/30 fps (50/60 Hz) in all resolutions
Video Streams	Up to 20 configurable video streams; Axis Zipstream in AV1, H.264 and H.265
System-on-Chip	ARTPEC-9 with deep learning processing unit (DLPU)
Built-in Analytics	AXIS Object Analytics; AXIS Image Health Analytics; AXIS Scene Metadata; AXIS Live Privacy Shield; AXIS Video Motion Detection
Audio Support	Two-way audio, automatic gain control, 10-band graphic equalizer; mic/line input via 3.5 mm jack and portcast technology
Onboard Storage	microSD/microSDHC/microSDXC card slot with SD card encryption support (AES-XTS-Plain64 256-bit)
Network Interface	RJ45 10BASE-T/100BASE-TX with Power over Ethernet
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Power Consumption	Max 12.6 W; typical 4.7 W (heater off, IR off)
Environmental Rating	IP66, NEMA 4X and IK10-rated vandal-resistant casing
Operating Temperature	-40 °C to 50 °C (-40 °F to 122 °F); start-up at -30 °C (-22 °F)
Storage Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Humidity	Operating: 10-100% RH (condensing); storage: 5-95% RH (non-condensing)
Color	White NCS S 1002-B
Weight	850 g (1.9 lb)
Cybersecurity Platform	Axis Edge Vault with secure boot, signed OS, secure keystore and hardware-based cryptographic module

Specifications

Video Resolutions & Frame Rates	2560 × 1440, 1920 × 1200, 2592 × 1944; up to 25/30 fps (50/60 Hz) in all resolutions
Video Compression & Streaming	H.264, H.265, AV1, Motion JPEG; up to 20 unique configurable video streams; Axis Zipstream; controllable frame rate and bandwidth; VBR/ABR/MBR; low latency mode; multi-view streaming up to 7 cropped view areas
Image Processing & Settings	Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR; 2D/3D noise reduction; saturation, contrast, brightness, sharpness, white balance, exposure modes and zones, defog, barrel distortion correction, rotation (0°, 90°, 180°, 270°) including corridor format, mirroring, privacy masks, overlays
Pan / Tilt / Rotation	Pan -190° to 190°; tilt -45° to +80°; rotation -95° to 95°; digital PTZ with preset positions and guard tour
Audio Features	Configurable simplex/half duplex/full duplex; automatic gain control; 10-band graphic equalizer; audio input via external mic (with optional 5 V power), digital input, line input and portcast; output via speaker pairing or portcast
Audio Codecs	24-bit LPCM; AAC-LC 8/16/32/48 kHz; G.711 PCM 8 kHz; G.726 ADPCM 8 kHz; Opus 8/16/48 kHz with configurable bitrate
Network Protocols	IPv4, IPv6, HTTP/HTTPS, HTTP/2, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS/DDNS, NTP/NTS, RTSP/RTP/SRTP, TCP/UDP, IGMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog, link-local address
System Integration	Open API with VAPIX, metadata and AXIS Camera Application Platform (ACAP); ONVIF Profiles G, M, S, T; SIP support for VoIP; compatible with AXIS Camera Station and leading VMS
Event Triggers	Audio detection; temperature and casing status; IP address changes; live stream active; network lost; recording status and storage health; digital input and virtual input; scheduled events; video tampering and day/night mode; MQTT stateless triggers
Event Actions	Switch day/night and defog modes; control I/O; control IR illumination and LEDs; publish MQTT messages; send HTTP/HTTPS/TCP/email notifications; add overlay text; record to SD card or network share; erase configuration; send SNMP traps; upload images or video clips via FTP/SFTP/HTTP/HTTPS/email
Analytics Applications	AXIS Object Analytics with human and vehicle classification and scenarios such as line crossing, object in area, time in area, counting, occupancy, tailgating detection, PPE monitoring (beta), motion in area and motion line crossing; AXIS Image Health Analytics; AXIS Scene Metadata; AXIS Live Privacy Shield; support for ACAP apps including AXIS Perimeter Defender and AXIS License Plate Verifier
Approvals & Certifications	Product markings: UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC; EMC: CISPR 32 Class A and related standards; Safety: CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN 62471 risk group exempt; Environment: IEC 60068 series, IP66, IK10, NEMA 250 Type 4X; Network: NIST SP500-267, IPv6 USGv6; Cybersecurity: ETSI EN 303 645, BSI IT Security Label, FIPS 140
Edge Security	Signed OS; brute force delay; password protection; Axis Cryptographic Module (FIPS 140-2 Level 1); secure element (CC EAL 6+, FIPS 140-3 Level 3); secure boot; encrypted filesystem; Axis device ID; signed video
IR Illumination	OptimizedIR 850 nm LEDs with power-efficient, long-life design; reach 40 m (130 ft) or more depending on scene
Operating Conditions	Temperature -40 °C to 50 °C (-40 °F to 122 °F); maximum 74 °C (165 °F); humidity 10-100% RH (condensing)
Storage & Edge Recording	microSD/microSDHC/microSDXC card support with encryption; recording to network-attached storage (NAS)
DORI Distances	Detect: 60-170 m; Observe: 24-67 m; Recognize: 12-34 m; Identify: 6-17 m (depending on zoom setting)

Accessories

Included	AXIS P3277-LVE camera, weathershield, installation guide, terminal block connector, connector guard, cable gasket, owner authentication key (included in the box)
Optional – Audio & I/O Interfaces	AXIS T61 MkII Audio and I/O Interface Series
Optional – Environmental Sensors	AXIS D6210 Air Quality Sensor
Optional – Installation Tools	AXIS T8415 Wireless Installation Tool
Optional – Mounting Accessories	AXIS TP3206-E Recessed Mount; AXIS TP3103-E Pendant Kit
Optional – Storage Media	AXIS Surveillance Cards
