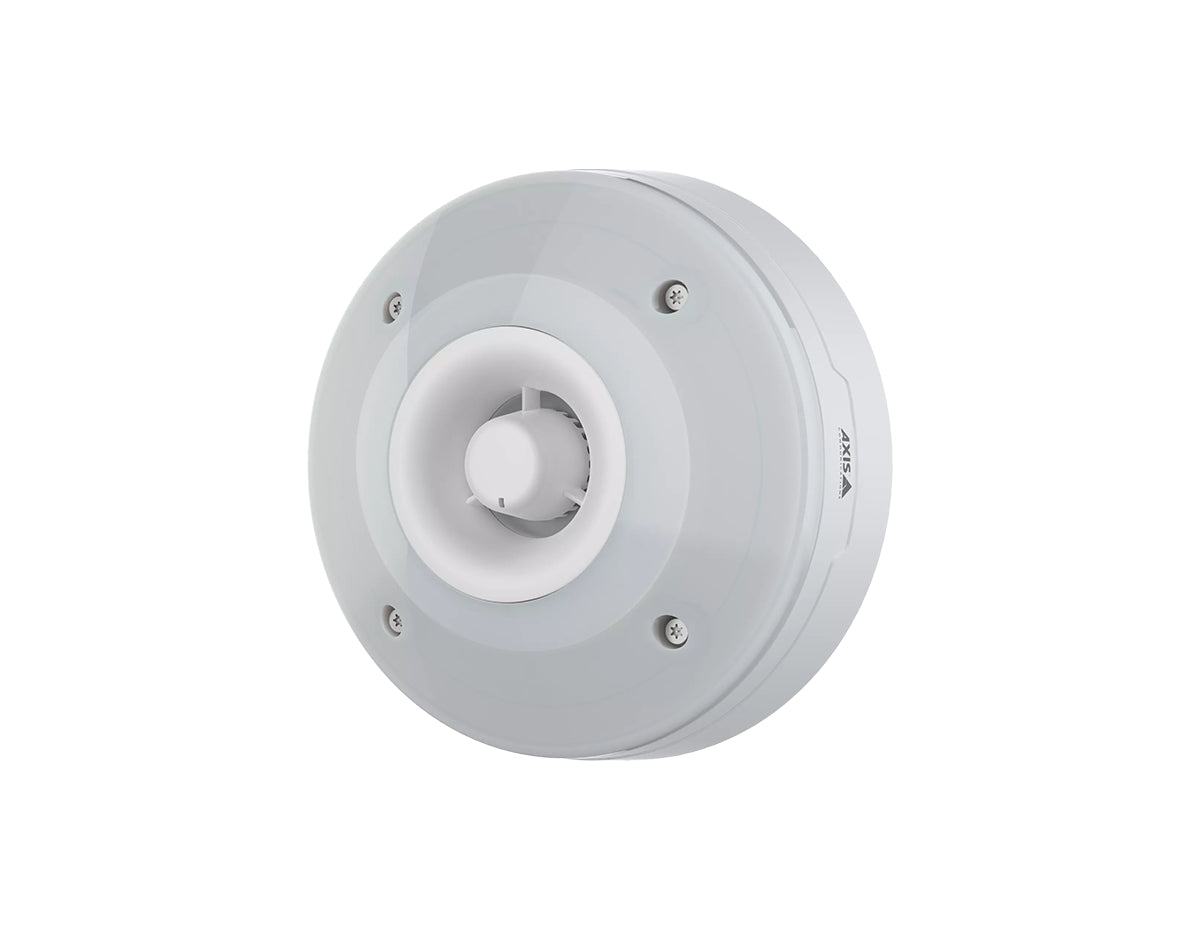

AXIS D4100-VE Mk II Network Strobe Siren

Name: AXIS D4100-VE Mk II Network Strobe Siren
Brand: Axis
Price: 549.00 USD
Availability: OutOfStock

Part Number: 03105-001

Technical Details

Axis D4100-VE Mk II Network Strobe Siren, 110 dB output, RGBA + White LEDs, IP66 IK10 NEMA 4X, PoE powered, SIP MQTT VAPIX integration.

$549.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Advanced Multi-Signal Deterrence for High-Security Environments

The AXIS D4100-VE Mk II Network Strobe Siren delivers powerful light-and-sound deterrence in a single IP-based device, engineered for perimeter protection, access control points, and outdoor-critical surveillance. Featuring an upgraded NXP i.MX8M Nano UL system-on-chip, this Mk II unit offers enhanced processing power and robust cybersecurity via Axis Edge Vault. With RGBA multicolor LEDs, a 110 dB siren, and PoE-powered networking, it integrates seamlessly with Axis cameras, Axis VMS, and third-party systems through VAPIX, MQTT, and SIP.

Designed for harsh outdoor deployments, it features IP66, IK10, and NEMA 4X ratings, ensuring long-lasting performance against dust, high-pressure water jets, and impact.

Key Benefits & Features

High-Intensity Deterrence: Combines bright RGBA and White LEDs (up to 893 lumens) with a 110 dB siren to instantly alert and deter intrusion attempts.
Seamless System Integration: Fully compatible with Axis Camera Station, VAPIX API, MQTT workflows, and SIP-based VoIP systems for flexible automation.
Rugged Outdoor Reliability: IP66, IK10, and NEMA 4X construction ensures dustproof, weather-resistant, and impact-resistant endurance.
Cybersecurity Hardened: Includes Axis Edge Vault, signed OS, secure boot, and a FIPS 140-2 Level 2 certified Trusted Platform Module (TPM).
Efficient PoE Installation: Single-cable PoE power (Class 3 or Class 4) and networking simplifies deployment across wall or ceiling mounts.
Advanced Event Control: Trigger responses using temperature thresholds, network conditions, I/O activity, scheduled rules, or SIP actions.

Ideal Use Cases

Perimeter defense for commercial, industrial, or government facilities
Parking entrance alerts paired with license plate recognition (LPR) solutions
Critical infrastructure requiring strong visual and audible signaling
Remote or outdoor sites exposed to extreme weather conditions
Integrated alarm responses in multi-device Axis surveillance networks

Technical Specifications

Siren Output: 110 dB at 1 m (3.4 kHz)
Light Output: RGBA LEDs + White LEDs (893 lm at PoE Class 4)
Network Support: IPv4/IPv6, MQTT, SIP, HTTPS, SNMP, RTSP, RTP, TCP/UDP
System-on-Chip: NXP i.MX8M Nano UL with 1 GB RAM / 1 GB Flash
Integration: VAPIX, ACAP, AXIS Camera Station, third-party VMS
Power: PoE IEEE 802.3at Type 2 Class 4 (max 22.6 W)
Environmental Ratings: IP66, IK10, NEMA 4X
Operating Range: -40 C to 60 C (-40 F to 140 F)
Dimensions: Diameter 171 mm x 66 mm (6.7 x 2.6 in)
Weight: 1 kg (2.2 lb)

Strengthen Your Security Now

Boost your outdoor security with powerful multi-signal protection. Order the Axis D4100-VE Mk II today.

Properties

Model	AXIS D4100-VE Mk II
Product Type	Network Strobe Siren
Light Output	White LEDs: 893 lm (PoE Class 4) / 220 lm (PoE Class 3)
Light Colors	RGBA LEDs: Red, Blue, Green, Amber
Max Sound Pressure	110 dB at 1 m (3.4 kHz)
Coverage Pattern	150 degrees coaxial at 2 kHz
Internal Storage	1 GB Flash
Memory	1 GB RAM
Network SoC	NXP i.MX8M Nano UL
Network Protocols	IPv4/IPv6, HTTP/HTTPS, SIP, MQTT, RTSP, RTP, SNMP, NTP, LLDP, CDP, DHCP, QoS, TLS
Operating Temperature	-40 C to 60 C (-40 F to 140 F)
Humidity	10-100% RH (condensing)
Storage Conditions	-40 C to 70 C, 5-95% RH (non-condensing)
IP Rating	IP66
Impact Rating	IK10
NEMA Rating	NEMA 4X
Material	Aluminum and Plastic (White NCS S 1002-B)
Dimensions	Diameter 171 mm x 66 mm (6.7 x 2.6 in)
Weight	1000 g (2.2 lb)
Mounting	1/4-20 UNC tripod screw; junction box holes (double-gang, single-gang, 4 in octagon); 1/2 in conduit fitting (optional)

Specifications

Power Source	PoE IEEE 802.3at Type 2 Class 4 (max 22.6 W, typical 1.5 W) OR PoE IEEE 802.3af/at Type 1 Class 3 (max 9.4 W)
Connectors	RJ45 (10/100 Mbps PoE), 4-pin 2.5 mm terminal block (2 configurable I/Os)
Siren Functions	Predefined tones; max 110 dB; event-triggered actions; health-check
Light Functions	Multicolor strobe profiles with priority levels; RGBA + White LED patterns
Event Triggers	Temperature status, IP change, network lost, I/O active, virtual input, SIP events, MQTT events, Schedule
Event Actions	SIP calls, toggle I/O, LED flashing, MQTT publish, HTTP/HTTPS/TCP/email notifications, SNMP traps
Cybersecurity	Secure boot, encrypted filesystem (AES-XTS 256), Axis Edge Vault, signed OS, TPM (FIPS 140-2 Level 2)
Certifications	UL/cUL, CE, KC, VCCI, RCM, ICES, FCC Class A, WEEE, TAA Compliant
Environmental Tests	IEC 60068-2 (vibration, humidity, temperature), MIL-STD-810H
Software Compatibility	AXIS Camera Station Edge/Pro/5; third-party VMS via VAPIX, SIP, MQTT
Languages	English, German, French, Spanish, Italian, Russian, Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Accessories

Included	Network strobe siren; Installation guide; Terminal block connector; Cable gaskets; Connector guard
Optional - Mounting Accessories	TD4601 ACI Conduit Bracket; TD4801 Sunshield; T94K01D Pendant Kit; T94N01D Pendant Kit; T91B47 Pole Mount; T94R01B Corner Bracket; T91A64 Corner Bracket; T94V01C Dual Camera Mount
Optional - Installation Tools	AXIS T8415 Wireless Installation Tool
Optional - Sensors	AXIS D6210 Air Quality Sensor (PoE Class 4)
