| Included in the Box | Door controller; installation guide; connector kit (mounted); grounding kit; splicing connectors |
| Optional Accessories | AXIS A9910 I/O Relay Expansion Module; AXIS TA4711 Access Card; AXIS TA4712 Key Fob; AXIS TA1901 DIN Rail Clip; AXIS TA110-B Wiegand Converter; AXIS TA1902 Connector Kit; AXIS 30 W Midspan; AXIS T8006 PS1214 |
[/accessories]
Centralized Access Control with Scalable Multi-Door Management

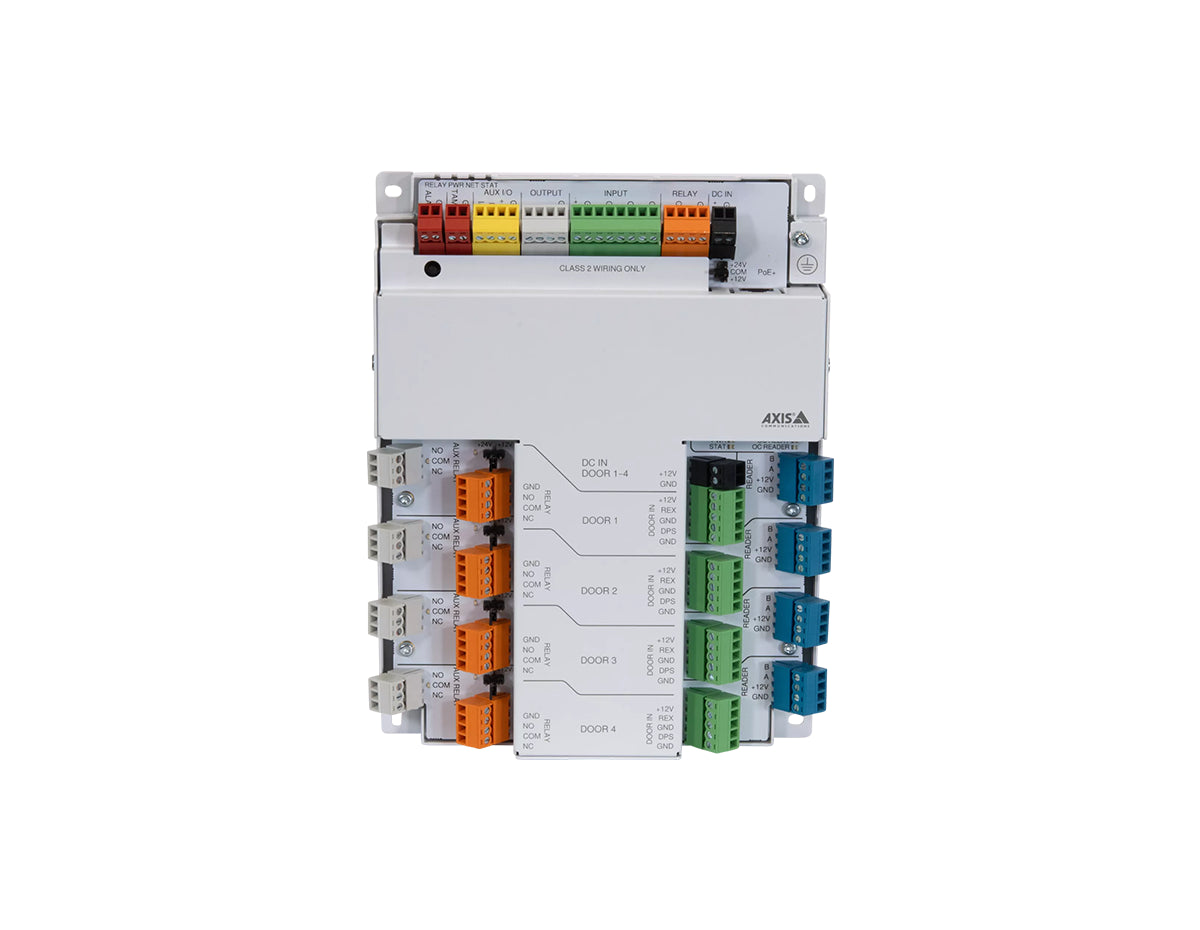

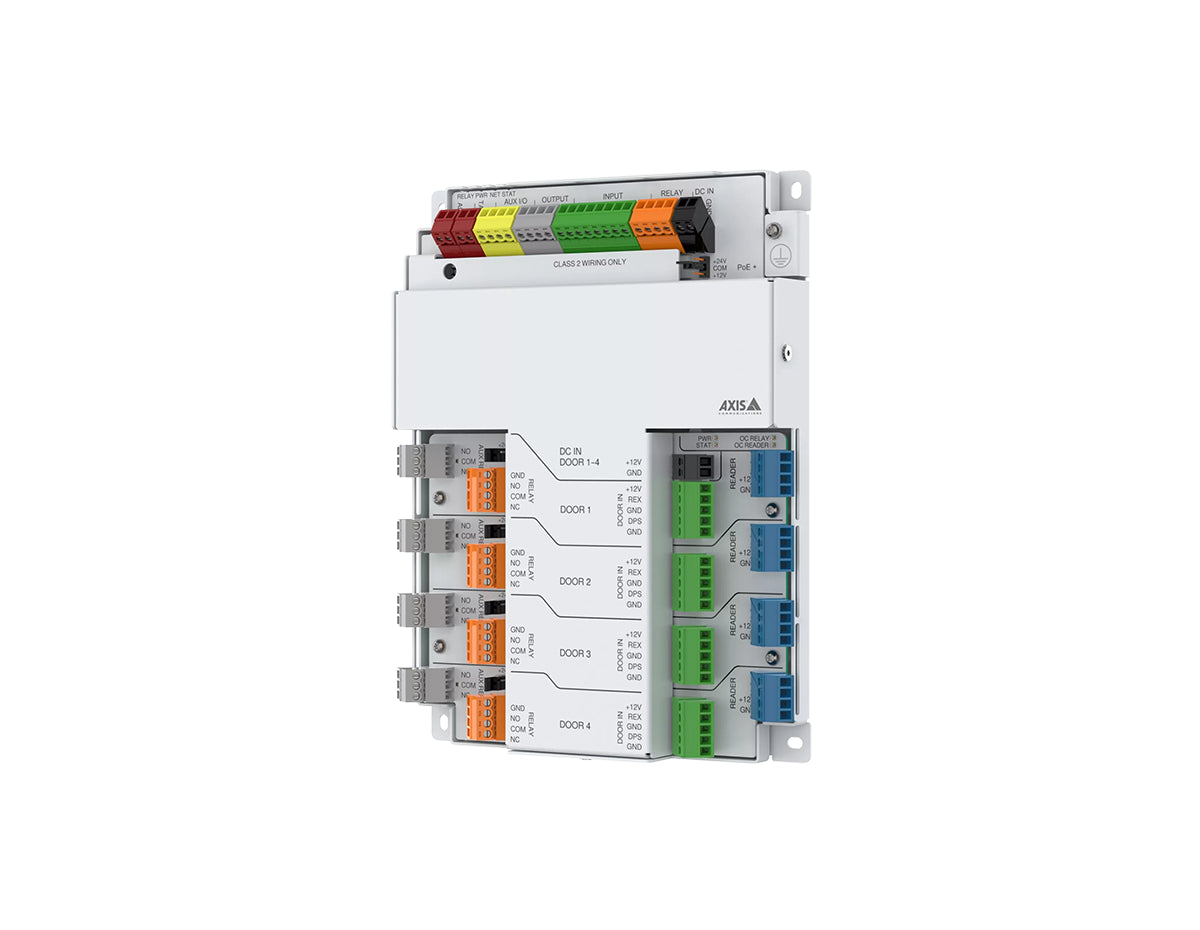

The AXIS A1710-B Network Door Controller delivers streamlined, centralized control for up to four doors while supporting eight OSDP readers and eight locks. Designed for both new and retrofit installations, it combines compact hardware, built-in lock power management, and strong cybersecurity features to protect high-security access environments. With support for third-party cabinets and multiple reader types, it fits enterprise, industrial, and critical infrastructure deployments.
Key Benefits & Features
- Full four-door control: Manage up to four doors with double-lock support and integrated I/O options for sensors, REX devices, and alarms.
- Eight OSDP reader support: Connect up to eight secure OSDP readers with multidrop architecture and OSDP Secure Channel verification.
- Built-in power management: Simplify installations with onboard 12 V DC power outputs for locks, sensors, and door peripherals.
- Advanced cybersecurity: Axis Edge Vault hardware platform, secure boot, signed firmware, and strong authentication protocols safeguard device integrity.
- Flexible power and mounting: Operates via PoE+, 12 V DC, or multi-input power setups; supports DIN rail and cabinet mounting.
Ideal Use Cases
- Enterprise facilities requiring centralized multi-door access control
- Industrial and critical infrastructure sites with strict cybersecurity needs
- Retrofit projects integrating OSDP or Wiegand readers
- AXIS Camera Station Secure Entry deployments
- Multi-building campuses standardizing on network-based access control
Technical Specifications
- Doors: Up to 4 doors with double-lock relay support
- Reader Support: 8 OSDP readers, multidrop RS485
- Credentials: Stores up to 250,000 local credentials
- Event Buffer: 250,000 local events
- Power Input: PoE IEEE 802.3at Type 2 or 12 V DC
- Outputs: 12/24 V DC wet relays, overcurrent-protected
- Network Interface: 10/100/1000BASE-T RJ45
- Operating Temperature: -40 °C to 55 °C
- Memory: 512 MB RAM, 2 GB Flash
- Cybersecurity: Axis Edge Vault, secure element (CC EAL 6+), secure boot
