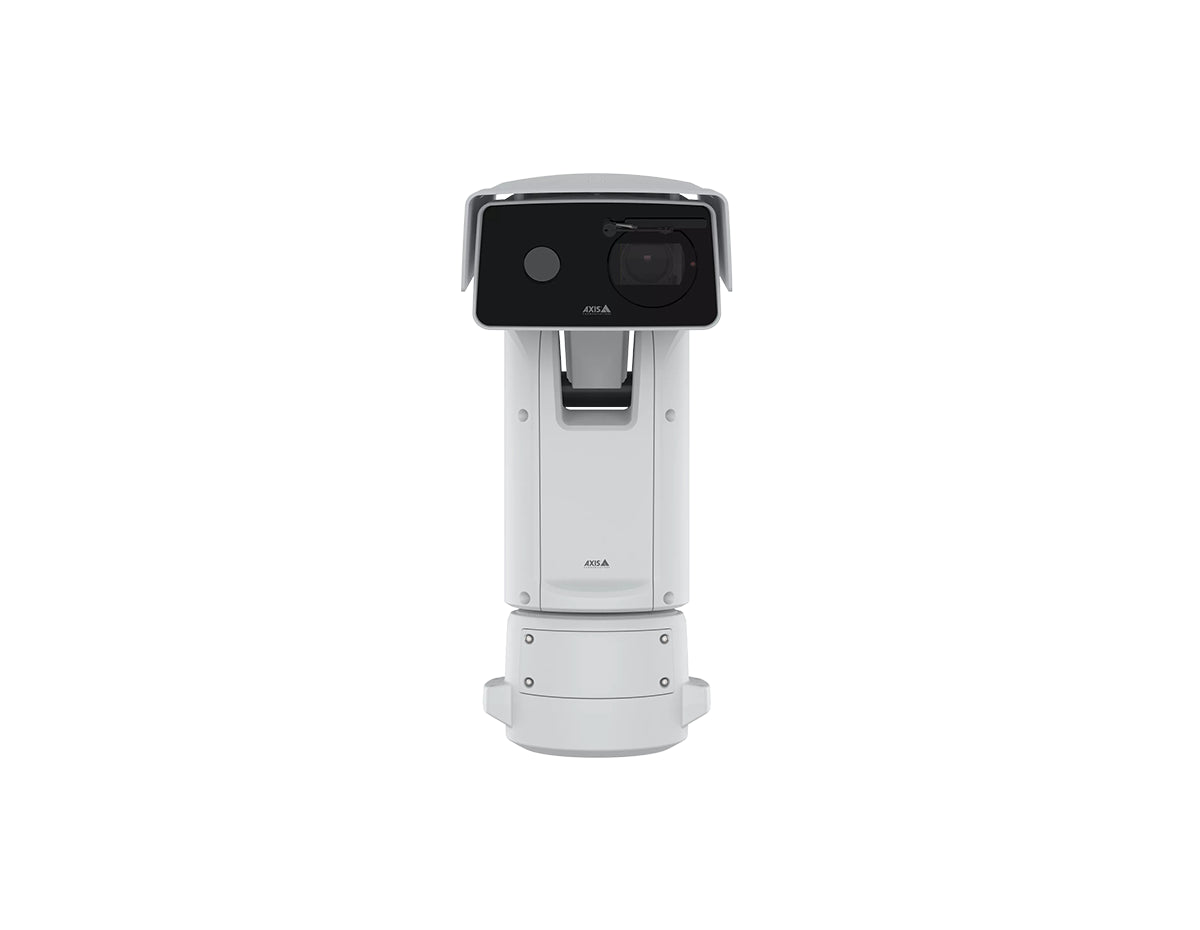

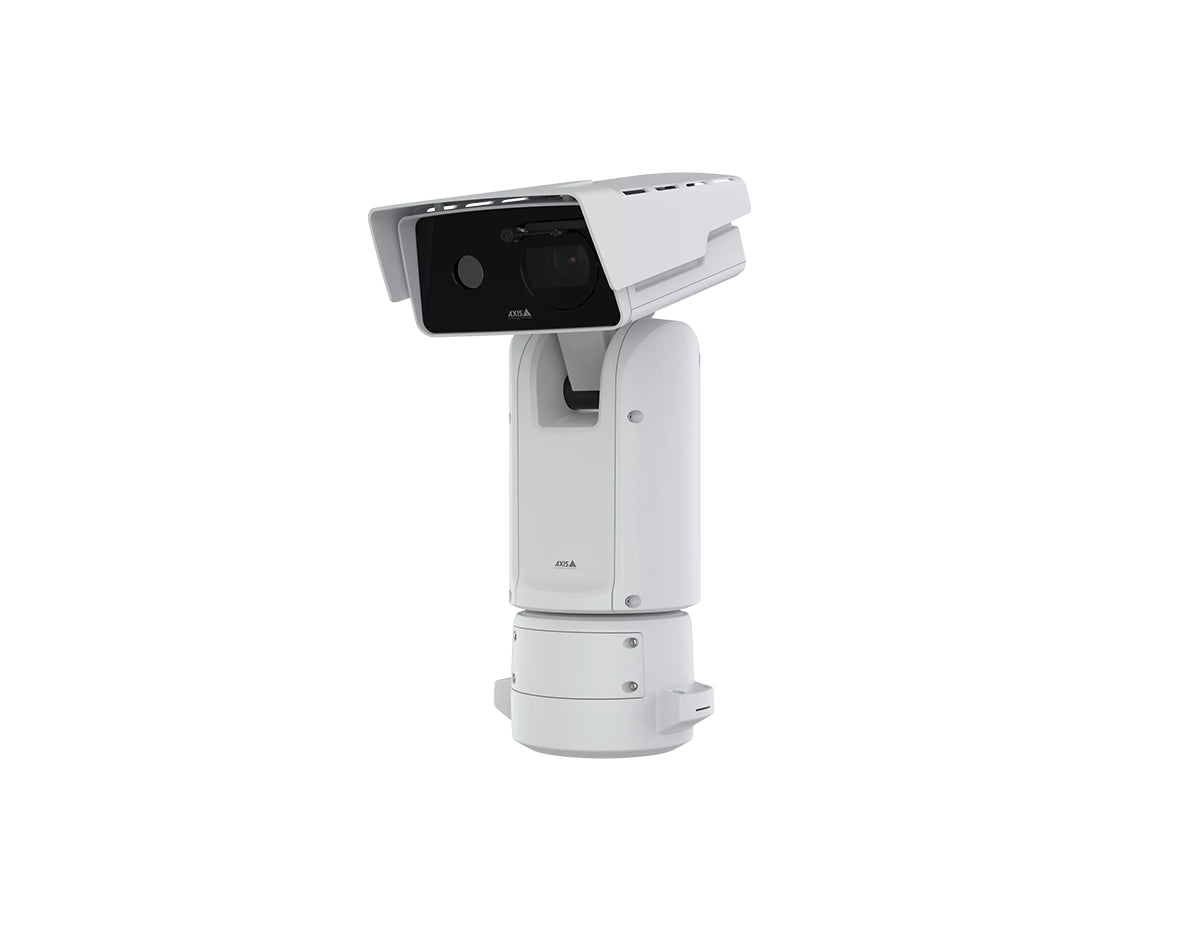

AXIS Q8752-E Mk II Zoom 30 fps Bispectral PTZ Camera (03051-001)

AXIS Q8752-E Mk II Zoom 30 fps Bispectral PTZ Camera (03051-001)

Name: AXIS Q8752-E Mk II Zoom 30 fps Bispectral PTZ Camera (03051-001)
Brand: Axis
Price: 27977.0 USD
Availability: InStock

Part Number: 03051-001

Technical Details

High-performance bispectral PTZ camera with thermal zoom lens, HDTV 1080p visual channel, 30 fps thermal imaging, 360° infinite pan, dual electronic image stabilization, and built-in cybersecurity.

$29,999.00

$27,977.00

7% OFF

You Save: $2,022.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Advanced Bispectral PTZ with High-Speed 30 fps Thermal Imaging

The AXIS Q8752-E Mk II Zoom 30 fps delivers long-range thermal detection paired with high-detail visual verification, optimized for demanding perimeter and critical infrastructure surveillance. The 35–105 mm thermal zoom lens enables versatile distance coverage, while the HDTV 1080p visual sensor provides sharp color detail with Lightfinder 2.0 and Forensic WDR. Dual electronic image stabilization ensures clear video despite vibration or wind.

Built on the ARTPEC-7 platform with a deep learning processing unit, this camera supports advanced analytics and automated protection workflows. With rugged IP66, IK10, NEMA 4X, ISO 12944-6 C5, and MIL-STD-810H durability, it is engineered for reliable, continuous operation in harsh environments.

Key Benefits

30 fps thermal imaging for smoother detection and tracking
Dual thermal and visual channels for accurate long-range identification
35–105 mm thermal zoom supports wide-area and distant perimeter coverage
Lightfinder 2.0 and Forensic WDR deliver excellent detail in near darkness and high-contrast scenes
Dual EIS ensures stable video under vibration and strong winds
ARTPEC-7 with DLPU supports on-device analytics and automated responses
IP66, IK10, NEMA 4X rugged design for harsh outdoor environments

Ideal Use Cases

Critical infrastructure and power generation sites
Border protection and long-range perimeter security
Airports, ports, and sensitive transportation zones
Industrial and military-grade surveillance environments
Remote monitoring requiring fiber-optic connectivity

Technical Specifications Summary

Image sensor: 1/2.8"""" CMOS (visual); 640x480 uncooled microbolometer (thermal)
Lens: 4.3–137.6 mm visual; 35–105 mm thermal
Thermal frame rate: Up to 30 fps
Video: H.264/H.265/MJPEG; Zipstream; multiple streams
PTZ: 360° endless pan; -90° to +45° tilt; 32x optical zoom
Durability: IP66, IK10, NEMA 4X, MIL-STD-810H
Power: 52–58 V DC, up to 185 W max

Upgrade Your Operations

Strengthen long-range detection and real-time situational awareness with high-speed thermal and visual PTZ performance.

Properties

Model	AXIS Q8752-E Mk II Zoom 30 fps Bispectral PTZ Camera (03051-001)
Product Type	Bispectral PTZ Camera
Image Sensor	Visual: 1/2.8” progressive scan CMOS; Thermal: Uncooled microbolometer 640x480, 17 µm, 8–14 µm
Lens	Visual: 4.3–137.6 mm varifocal, F1.4–4.0; Thermal: 35–105 mm athermalized, F1.6
Minimum Illumination	Color: 0.06 lux at 50 IRE, F1.4; B/W: 0.01 lux at 50 IRE, F1.4
Pan/Tilt Range	Pan: 360° endless; Tilt: -90° to +45°
Zoom	Visual: 32x optical + 12x digital (384x total); Thermal: 3x optical + 4x digital (12x total)
Video Compression	H.264, H.265, Motion JPEG
Resolution	Visual: Up to HDTV 1080p; Thermal: 640x480 sensor (scaled up to 800x600)
Frame Rate	Thermal: Up to 30 fps; Visual: Up to 50/60 fps in HDTV 1080p
Audio	One-way audio, mic/line input
Networking	RJ45 10/100/1000BASE-T; SFP slot
Storage	microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), 10–100% RH (condensing)
Environmental Ratings	IP66, IK10, NEMA 4X, ISO 12944-6 C5, MIL-STD-810H
Power	52–58 V DC, typical 25 W, max 185 W
Dimensions	244 × 360 × 582 mm (9.5 × 14 × 23 in)
Weight	15.3 kg (33.7 lb)
Casing	Powder-coated aluminum; white NCS S 1002-B; glass (visual) and germanium (thermal) windows
Certifications	UL/cUL, CE, KC, VCCI, RCM, FCC, EN 55032 Class A

Specifications

Camera	Dual-channel bispectral PTZ with thermal and visual imaging; autofocus and auto-iris (visual)
Optics	Visual: 4.3–137.6 mm, F1.4–4.0, HFOV 58.5°–2.4°, VFOV 35°–1.3°; Thermal Zoom: 35–105 mm, F1.6, HFOV 18°–6°, VFOV 13.5°–4.5°, near focus 22–195 m, manual near focus 7 m
Day/Night	Automatic IR-cut filter
Thermal Sensitivity	NETD < 50 mK
Shutter	1/66500 s to 2 s (visual)
PTZ Performance	Pan 0.05°–120°/s; Tilt 0.05°–65°/s; ±0.01°/s low-speed accuracy; 256 presets; guard tour; de-icing control
Compute	ARTPEC-7 SoC with Deep Learning Processing Unit (DLPU), 2 GB RAM, 512 MB Flash
Video Streaming	Multiple H.264/H.265/MJPEG streams; Zipstream; VBR/ABR/MBR; low latency mode
WDR / Image Enhancements	Forensic WDR up to 120 dB; dual-channel EIS; privacy masks; tone mapping; defogging
Audio	AAC-LC, LPCM, G.711, G.726, Opus; configurable bitrate
Network Protocols	IPv4/IPv6, HTTPS, HTTP/2, TLS, RTP/SRTP, RTSP, FTP/SFTP, SNMP v1/v2c/v3, DHCP, MQTT, LLDP, CDP
System Integration	VAPIX, ACAP, ONVIF G/M/S/T, one-click cloud connection, AXIS Camera Station compatibility
Event Triggers	Device status, I/O, motion, temperature states, PTZ events, storage health, MQTT
Event Actions	Notifications, video and audio recordings, PTZ presets, I/O toggles, overlays, illumination control, SNMP traps
Analytics	AXIS Motion Guard, Fence Guard, Loitering Guard, Orientation AID PTZ, VMD, audio detection, advanced gatekeeper
Cybersecurity	Signed OS, secure boot, encrypted filesystem, TPM 2.0, brute-force delay protection, FIPS 140
Connectors	RJ45, SFP slot, 3.5 mm audio in, 4× configurable I/O, DC input
Storage	microSD/microSDHC/microSDXC; NAS support; AES-XTS-Plain64 256-bit encryption
Environmental	-40 °C to 60 °C; NEMA TS 2; wind load up to 45 m/s (100 mph) without weathershield; EPA 0.121 m²
Construction	Aluminum, IP66, IK10, NEMA 4X; UV-stabilized weathershield; long-life silicone wiper
Power	52–58 V DC, typical 25 W, max 185 W; power-loss recovery

Accessories

Included	Camera, installation guide, connector kit
Optional Accessories	AXIS Surveillance Cards, AXIS T94J01A Wall Mount, AXIS T94N01G Pole Mount, AXIS T95A64 Corner Bracket, AXIS Washer Kit B, AXIS Cable 24 V DC/24–240 V AC, AXIS T8611 SFP LC.LX, AXIS T8612 SFP LC.SX, AXIS PT IR Illuminator Kit C, AXIS T99 Illuminator Bracket Kit A, DIN PS56 480 W Power Supply, AXIS T61 Audio & I/O Interface Series
