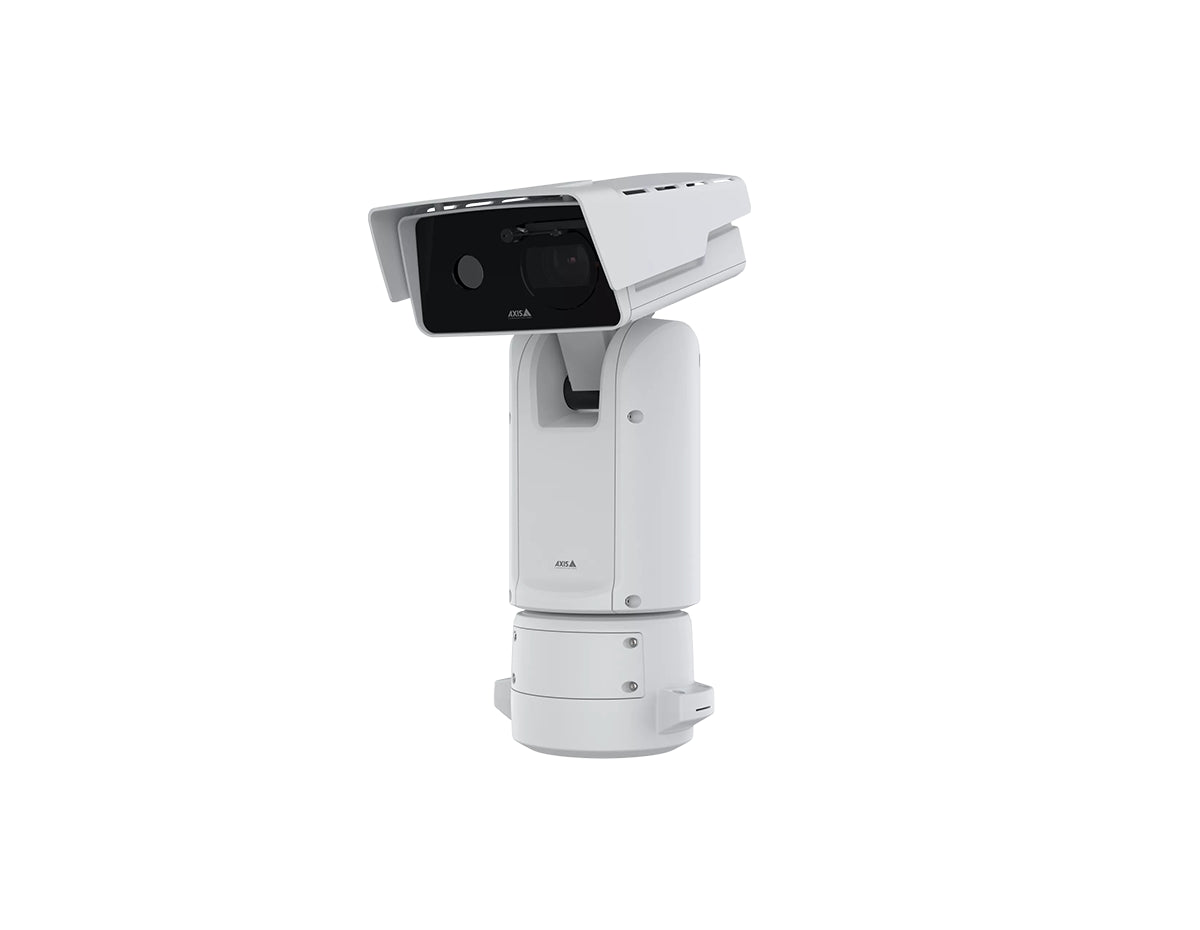

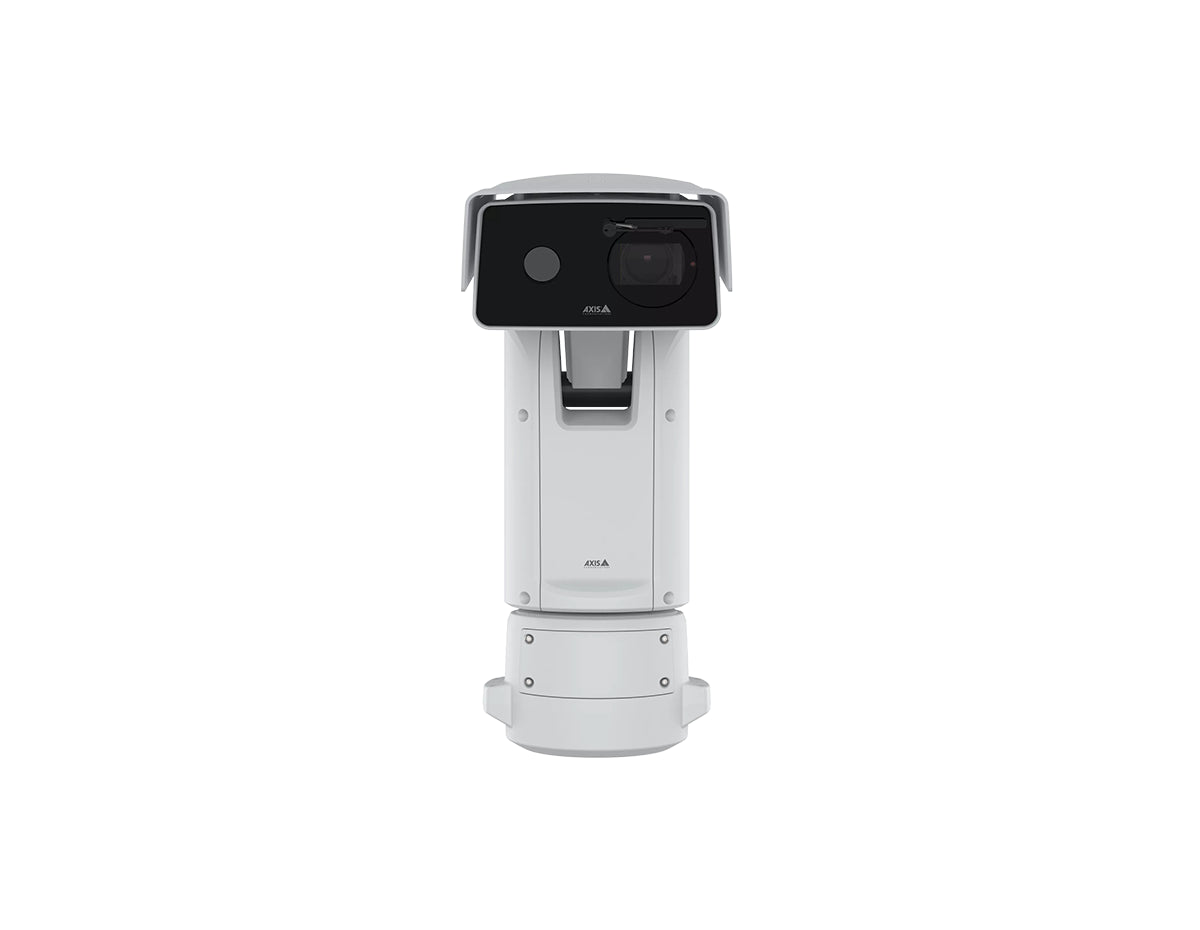

AXIS Q8752-E Mk II Zoom 8.3 fps Bispectral PTZ Camera (03050-001)

AXIS Q8752-E Mk II Zoom 8.3 fps Bispectral PTZ Camera (03050-001)

Name: AXIS Q8752-E Mk II Zoom 8.3 fps Bispectral PTZ Camera (03050-001)
Brand: Axis
Price: 26289.0 USD
Availability: InStock

Part Number: 03050-001

Technical Details

Bispectral PTZ camera with thermal zoom lens, HDTV 1080p visual channel, 8.3 fps thermal imaging, 360° infinite pan, dual electronic image stabilization, and built-in cybersecurity.

$26,289.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

High-Performance Bispectral PTZ for Long-Range Detection and Verification

The AXIS Q8752-E Mk II Zoom 8.3 fps delivers long-range thermal detection and crisp visual verification in a single rugged PTZ unit. Its 35–105 mm thermal zoom lens enables effective monitoring over extensive distances, while the HDTV 1080p visual sensor with Lightfinder 2.0 and Forensic WDR ensures excellent detail in all lighting conditions. Dual electronic image stabilization maintains stable video in high-vibration environments.

Powered by the ARTPEC-7 SoC with built-in deep learning analytics, this camera enables reliable perimeter protection, automated tracking, and rapid event response. With IP66, IK10, NEMA 4X, MIL-STD-810H durability and advanced cybersecurity features, it is engineered for mission-critical outdoor surveillance.

Key Benefits

Thermal and visual imaging in one PTZ unit for accurate detection and verification
35–105 mm thermal zoom for long-range perimeter and border surveillance
Lightfinder 2.0 and Forensic WDR provide excellent color detail in near-darkness and high-contrast scenes
Dual-channel EIS ensures smooth video even under vibration or strong winds
ARTPEC-7 DLPU enables high-performance onboard analytics and automation
Robust IP66, NEMA 4X, IK10 construction for tough outdoor conditions
Advanced cybersecurity with secure boot, TPM 2.0, and encrypted storage

Ideal Use Cases

Critical infrastructure protection
Border and long-range perimeter surveillance
Ports, airports, and transportation hubs
High-security industrial facilities
Remote site monitoring over fiber-optic networks

Technical Specifications Summary

Image sensor: 1/2.8"" CMOS (visual); 640x480 uncooled microbolometer (thermal)
Lens: 4.3–137.6 mm visual; 35–105 mm thermal
Thermal frame rate: Up to 8.3 fps
Video: H.264/H.265/MJPEG, multiple streams, Zipstream
WDR/EIS: Forensic WDR up to 120 dB; EIS on both channels
PTZ: 360° endless pan; -90° to +45° tilt; 32x optical zoom (visual)
Durability: IP66, IK10, NEMA 4X, MIL-STD-810H
Power: 52–58 V DC, max 185 W

Upgrade Your Operations

Enhance long-range detection and situational awareness with a rugged, high-performance bispectral PTZ platform.

Properties

Model	AXIS Q8752-E Mk II Zoom 8.3 fps Bispectral PTZ Camera (03050-001)
Product Type	Bispectral PTZ Camera
Image Sensor	Visual: 1/2.8” progressive scan CMOS; Thermal: Uncooled microbolometer 640x480, 17 µm, 8–14 µm
Lens	Visual: 4.3–137.6 mm varifocal, F1.4–4.0; Thermal: 35–105 mm athermalized, F1.6
Minimum Illumination	Color: 0.06 lux at 50 IRE, F1.4; B/W: 0.01 lux at 50 IRE, F1.4
Pan/Tilt Range	Pan: 360° endless; Tilt: -90° to +45°
Zoom	Visual: 32x optical + 12x digital (384x total); Thermal: 3x optical + 4x digital (12x total)
Video Compression	H.264, H.265, Motion JPEG
Resolution	Visual: Up to HDTV 1080p; Thermal: 640x480 sensor (scaled up to 800x600)
Frame Rate	Thermal: Up to 8.3 fps; Visual: Up to 50/60 fps in HDTV 1080p
Audio	One-way audio, mic/line input
Networking	RJ45 10/100/1000BASE-T; SFP slot
Storage	microSD/microSDHC/microSDXC with AES-XTS-Plain64 256-bit encryption
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), 10–100% RH (condensing)
Environmental Ratings	IP66, IK10, NEMA 4X, ISO 12944-6 C5, MIL-STD-810H
Power	52–58 V DC, typical 25 W, max 185 W
Dimensions	244 × 360 × 582 mm (9.5 × 14 × 23 in)
Weight	15.3 kg (33.7 lb)
Casing	Powder-coated aluminum; white NCS S 1002-B; glass (visual) and germanium (thermal) windows
Approvals	UL/cUL, CE, KC, VCCI, RCM, FCC, EN 55032 Class A

Specifications

Camera	Dual-channel bispectral PTZ; thermal and visual imaging with autofocus, auto-iris (visual)
Optics	Visual: 4.3–137.6 mm, F1.4–4.0, HFOV 58.5°–2.4°, VFOV 35°–1.3°; Thermal Zoom: 35–105 mm, F1.6, HFOV 18°–6°, VFOV 13.5°–4.5°, near focus 22–195 m, manual near focus 7 m
Day/Night	Automatic IR-cut filter
Thermal Sensitivity	NETD < 50 mK
Shutter	1/66500 s to 2 s (visual)
PTZ Performance	Pan 0.05°–120°/s; Tilt 0.05°–65°/s; ±0.01°/s low-speed accuracy; 256 presets; guard tour; de-icing control
Compute	ARTPEC-7 SoC with Deep Learning Processing Unit (DLPU), 2 GB RAM, 512 MB Flash
Video Streaming	Multiple H.264/H.265/MJPEG streams; Zipstream; VBR/ABR/MBR; low latency mode
WDR / Image Enhancements	Forensic WDR up to 120 dB; EIS on both channels; privacy masks; tone mapping; defogging
Audio	AAC-LC, LPCM, G.711, G.726, Opus; configurable bitrate
Network Protocols	IPv4/IPv6, HTTPS, HTTP/2, TLS, FTP/SFTP, SNMP v1/v2c/v3, RTP/SRTP, RTSP, MQTT, QoS, LLDP, CDP
System Integration	VAPIX, ACAP, ONVIF G/M/S/T, one-click cloud, AXIS Camera Station compatibility
Event Triggers	Device status, I/O, motion analytics, PTZ events, temperature alarms, MQTT, storage health
Event Actions	Notifications, recordings, PTZ presets, I/O toggles, overlays, illumination control, SNMP traps
Analytics	AXIS Motion Guard, Fence Guard, Loitering Guard, Orientation AID PTZ, VMD, audio detection
Cybersecurity	Signed OS, TPM 2.0, secure boot, encrypted filesystem, brute-force delay protection, FIPS 140
Connectors	RJ45, SFP slot, 3.5 mm audio in, 4× configurable I/O, DC input
Storage	microSD/microSDHC/microSDXC; NAS support; AES-XTS-Plain64 256-bit encryption
Environmental	-40 °C to 60 °C; NEMA TS 2; wind load up to 45 m/s (100 mph) without weathershield; EPA 0.121 m²
Construction	Aluminum, IP66, IK10, NEMA 4X; long-life silicone wiper; UV-stabilized weathershield
Power	52–58 V DC, typical 25 W, max 185 W; power-loss recovery

Accessories

Included	Camera, installation guide, connector kit
Optional Accessories	AXIS Surveillance Cards, AXIS T94J01A Wall Mount, AXIS T94N01G Pole Mount, AXIS T95A64 Corner Bracket, AXIS Washer Kit B, AXIS Cable 24 V DC/24–240 V AC 22 mh, AXIS T8611 SFP LC.LX, AXIS T8612 SFP LC.SX, AXIS PT IR Illuminator Kit C, AXIS T99 Illuminator Bracket Kit A, Power supply DIN PS56 480 W, AXIS T61 Audio & I/O Interface Series
