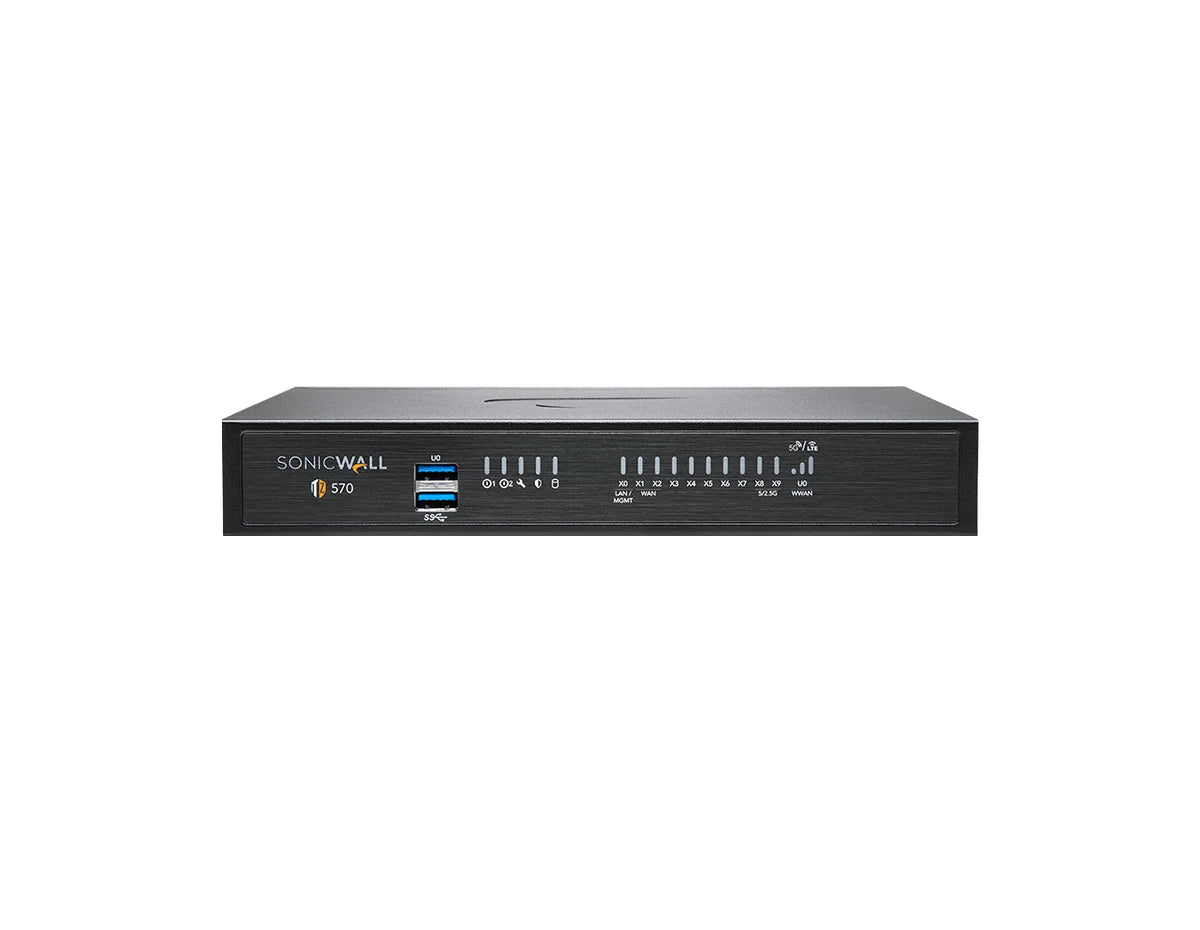

SonicWall TZ570P 03-SSC-9045 Desktop Firewall, Gen 6 Firewall Replacement with APSS 1-Year
Overview
The SonicWall TZ Series (Gen 7) is an integrated SD-Branch platform for small and midsize businesses and branch offices in a desktop form factor. It runs SonicOS 7 with Secure SD-WAN, zero-touch deployment and management through the cloud or the firewall itself, and it integrates SonicWall Switch, SonicWave access points and Capture Client. The 03-SSC-9045 is the TZ570P Gen 6 Firewall Replacement with APSS bundle. It combines the appliance with 1 year (12 months) of the Advanced Protection Security Suite (APSS). SonicWall offers it to owners replacing a Gen 6.5 or earlier SonicWall firewall.
Technical Details
The SonicWall TZ570P 03-SSC-9045 is a desktop next-generation firewall running SonicOS 7, with 8×1GbE RJ45, 2×5GbE SFP+. Threat Prevention throughput is 2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (4 Gbps firewall inspection), and it holds up to 1,250,000 concurrent SPI connections. Power over Ethernet is provided on 5 PoE or 3 PoE+ ports. This part number bundles the appliance with Gen 6 Firewall Replacement with APSS for 1 year (12 months). It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ570P suits a small office, branch or retail site that needs 2 Gbps of Threat Prevention throughput and up to 1,250,000 concurrent SPI connections. It suits buyers who want Gen 6 Firewall Replacement with APSS for 1 year activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 2 Gbps, the published Threat Prevention throughput
- you require rack mounting without an additional kit, since this is a desktop appliance and requires a separate rackmount kit for rack installation
03-SSC-9045 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 8×1GbE RJ45, 2×5GbE SFP+ |
| Max Port Speed | 5 GbE |
| Management & Console Ports | 1×Console, 2×USB 3.0 |
| PoE Ports / Budget | 5 PoE or 3 PoE+ ports |
| Performance & Scale | |
| Firewall Throughput | 4 Gbps (RFC 2544) |
| Threat Prevention Throughput | 2 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 0.75 Gbps (DPI SSL) |
| IPsec VPN Throughput | 1.8 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 1,250,000 (SPI) |
| New Sessions per Second | 16,000 |
| Maximum DPI Connections | 400,000 (DPI) |
| Maximum IPsec VPN Tunnels | 200 (site-to-site) |
| Power & Thermal | |
| Power Supply | 180 W external; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 108.75 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.38 × 5.91 × 8.85 in (3.5 × 15 × 22.5 cm) |
| Weight | 2.31 lb (1.05 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Standby; stateful synchronization requires the optional Stateful HA Upgrade license |
| Central Management Platform | Network Security Manager, GMS |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall TZ570P 03-SSC-9045 include a security subscription?
Yes. The 03-SSC-9045 includes 1 year (12 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware support, and SaaS or on-premises Network Security Manager (NSM) management with 7-day alerting, advanced reporting and analytics. When the term ends the services stop receiving updates unless the subscription is renewed.
How much traffic can the SonicWall TZ570P 03-SSC-9045 handle?
SonicWall publishes no user count, so size the TZ570P on its figures. Firewall inspection throughput is 4 Gbps, but Threat Prevention throughput is 2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 1,250,000 concurrent SPI connections and 400,000 DPI connections, and opens 16,000 new connections per second.
What interfaces does the SonicWall TZ570P 03-SSC-9045 have?
The TZ570P provides 8×1GbE RJ45, 2×5GbE SFP+. Management and console connectivity is 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ570P 03-SSC-9045 support high availability?
The TZ570P supports Active/Standby high availability; stateful synchronization requires SonicWall's optional Stateful HA Upgrade license for the TZ570P series.
What is the difference between the TZ570P and the TZ570?
The TZ570P adds Power over Ethernet to the TZ570; firewall inspection, Threat Prevention and connection figures are the same series figures. Maximum power consumption is 108.75 W on the TZ570P against 13.4 W on the TZ570.
Does the SonicWall TZ570P 03-SSC-9045 provide PoE?
Yes. The TZ570P provides Power over Ethernet on 5 PoE or 3 PoE+ ports for powered devices. Its full interface set is 8×1GbE RJ45, 2×5GbE SFP+.
What is the TZ570P Gen 6 Firewall Replacement with APSS bundle?
SonicWall lists the 03-SSC-9045 as a Gen 6 firewall replacement bundle: the TZ570P appliance with APSS for 1 year. It is intended for owners replacing a Gen 6.5 or earlier SonicWall firewall; Network Devices Inc. confirms eligibility before ordering.
Does the 03-SSC-9045 include SonicWall support?
Support is included for the bundle term: SonicWall's Gen 7 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.
How is the SonicWall TZ570P 03-SSC-9045 managed?
The TZ570P is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 03-SSC-9045 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-9045 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
