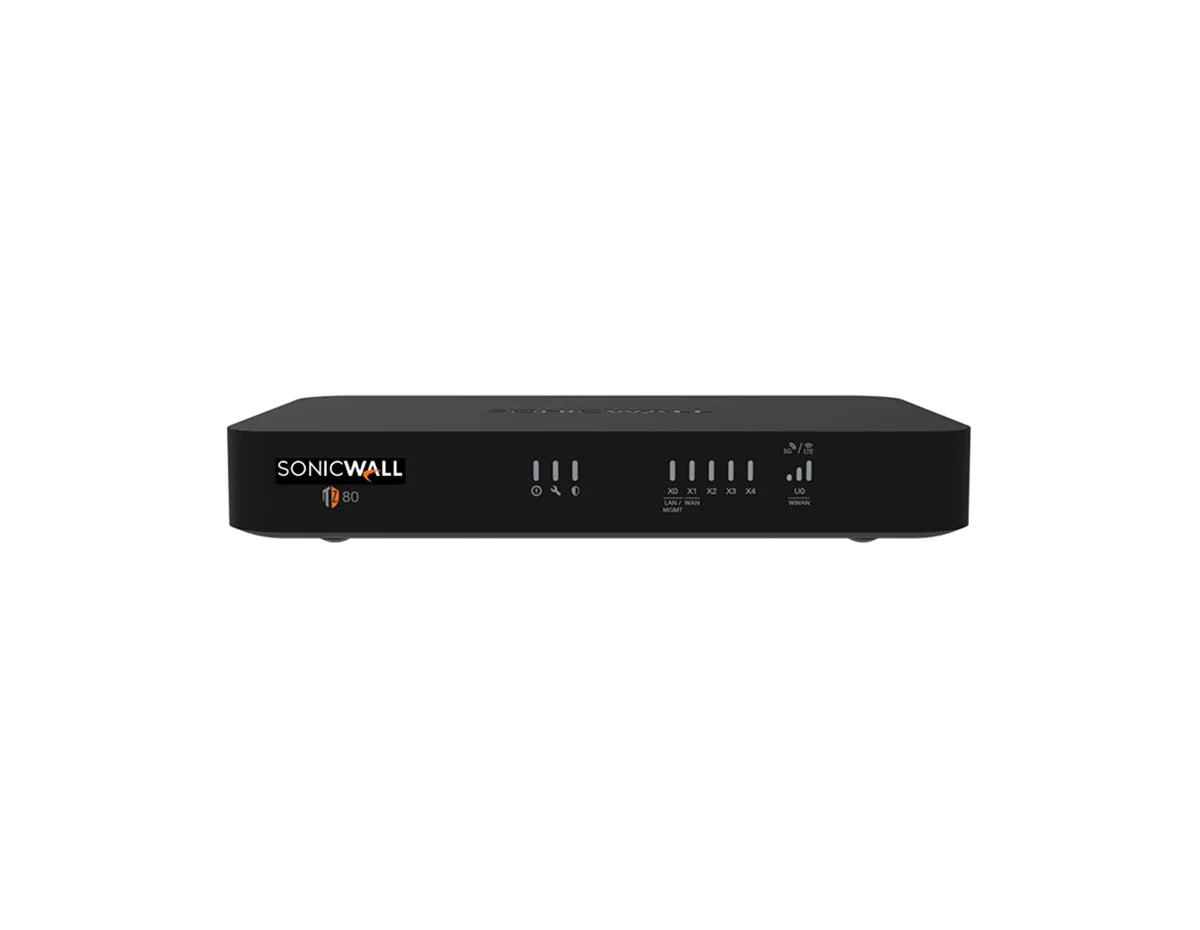

SonicWall TZ80 03-SSC-8141 Desktop Firewall, Gen 6 Firewall Replacement with APSS 1-Year
Overview
The SonicWall TZ80 is a subscription-based next-generation firewall for small offices, home offices and IoT deployments. SonicWall sells it only with a subscription such as Secure Connect Lite, Secure Connect or APSS; a hardware-only version is not available. The 03-SSC-8141 is the TZ80 Gen 6 Firewall Replacement with APSS bundle. It combines the appliance with 1 year (12 months) of Advanced Protection Service Suite (APSS). SonicWall offers it to owners replacing a Gen 6.5 or earlier SonicWall firewall.
Technical Details
The SonicWall TZ80 03-SSC-8141 is a desktop next-generation firewall running SonicOS, with 4×1GbE RJ45, 1×1GbE SFP. Threat Prevention throughput is 0.75 Gbps, the same as its firewall inspection throughput, and it holds up to 300,000 concurrent SPI connections. This part number bundles the appliance with Gen 6 Firewall Replacement with APSS for 1 year (12 months). It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ80 suits a small office, branch or retail site that needs 0.75 Gbps of Threat Prevention throughput and up to 300,000 concurrent SPI connections. It suits buyers who want Gen 6 Firewall Replacement with APSS for 1 year activated with the hardware.
Not suitable if:
- your inspected traffic exceeds 0.75 Gbps, the published Threat Prevention throughput
- you need Power over Ethernet from the firewall, since this model has none
- you need a rack-mount appliance, since this is a compact desktop unit
03-SSC-8141 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 4×1GbE RJ45, 1×1GbE SFP |
| Max Port Speed | 1 GbE |
| Management & Console Ports | 1×Console, 1×USB (type-C or type-A) |
| Performance & Scale | |
| Firewall Throughput | 0.75 Gbps |
| Threat Prevention Throughput | 0.75 Gbps |
| TLS/SSL Inspection Throughput | 0.25 Gbps (DPI SSL) |
| IPsec VPN Throughput | 0.75 Gbps |
| Maximum Concurrent Sessions | 300,000 (SPI) |
| New Sessions per Second | 7,500 |
| Maximum DPI Connections | 75,000 (DPI) |
| Maximum IPsec VPN Tunnels | 50 (site-to-site) |
| Power & Thermal | |
| Power Supply | 36 W; 100-240 VAC input (50-60 Hz), 3 A |
| Redundant Power Supply | No |
| Maximum Power Consumption | 11.6 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.18 × 4.49 × 7.87 in (3.0 × 11.4 × 20.0 cm) |
| Weight | 0.97 lb (0.438 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS |
| High Availability | Active/Standby with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 2.6 and above |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
FAQ
Does the SonicWall TZ80 03-SSC-8141 include a security subscription?
Yes. The 03-SSC-8141 includes 1 year (12 months) of Advanced Protection Service Suite (APSS), which covers everything in Secure Connect plus Application Control, intrusion detection and prevention, Gateway Anti-Virus and Anti-Spyware, content and reputation-based filtering, Capture ATP sandboxing, DNS filtering, and 7-day full reporting and advanced analytics. Because SonicWall sells the TZ80 only on subscription, the bundle should be renewed before the term ends.
How much traffic can the SonicWall TZ80 03-SSC-8141 handle?
SonicWall publishes no user count, so size the TZ80 on its figures. Firewall inspection throughput is 0.75 Gbps, and Threat Prevention throughput is also 0.75 Gbps. It holds 300,000 concurrent SPI connections and 75,000 DPI connections, and opens 7,500 new connections per second.
What interfaces does the SonicWall TZ80 03-SSC-8141 have?
The TZ80 provides 4×1GbE RJ45, 1×1GbE SFP. Management and console connectivity is 1×Console, 1×USB (type-C or type-A). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ80 03-SSC-8141 support high availability?
The TZ80 supports Active/Standby high availability with stateful synchronization.
What is the TZ80 Gen 6 Firewall Replacement with APSS bundle?
SonicWall lists the 03-SSC-8141 as a Gen 6 firewall replacement bundle: the TZ80 appliance with APSS for 1 year. It is intended for owners replacing a Gen 6.5 or earlier SonicWall firewall; Network Devices Inc. confirms eligibility before ordering.
Does the 03-SSC-8141 include SonicWall support?
Yes. The Advanced Protection Service Suite included with 03-SSC-8141 provides 24x7 Solution Support for the 1-year subscription term.
How is the SonicWall TZ80 03-SSC-8141 managed?
The TZ80 is managed through Network Security Manager (NSM) 2.6 and above, and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 03-SSC-8141 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-8141 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
