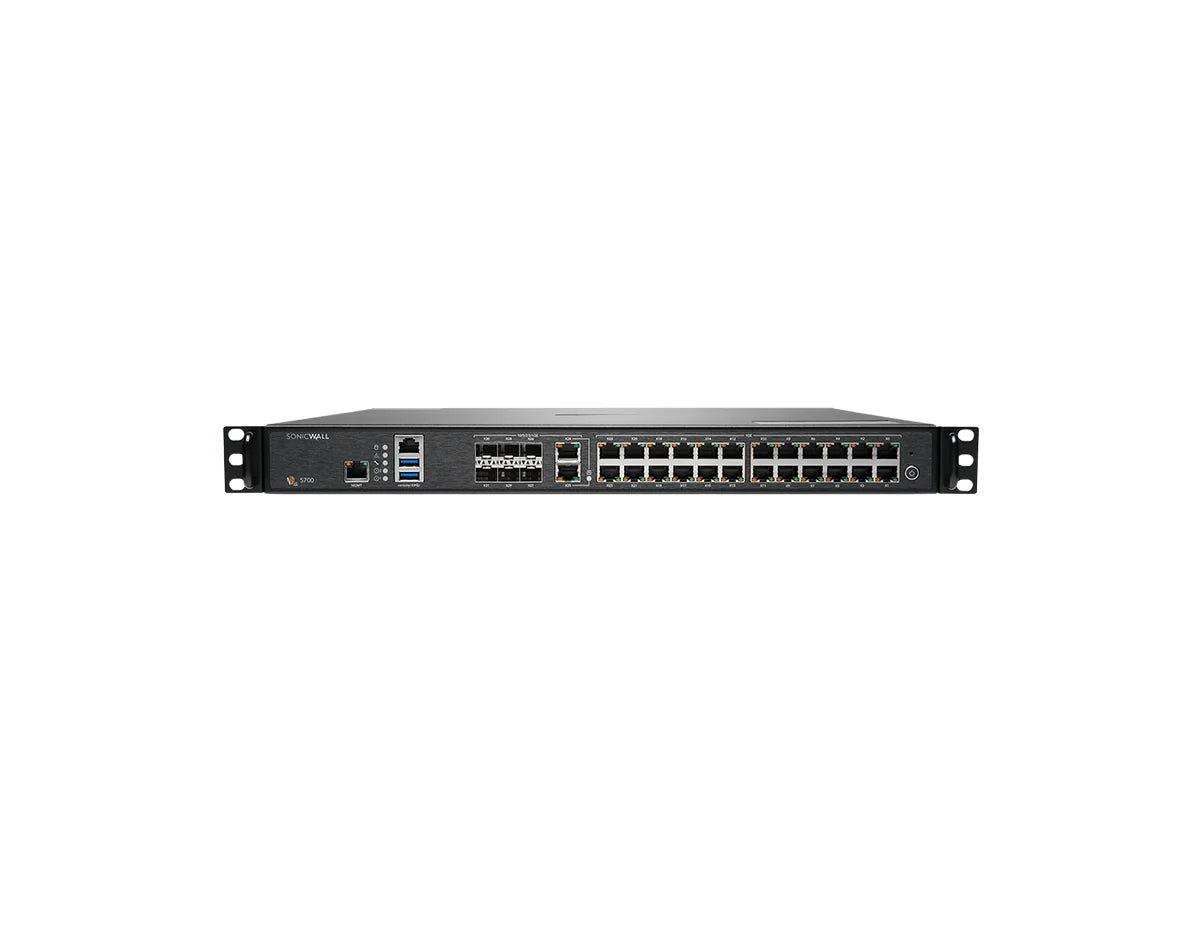

SonicWall NSa 5700 03-SSC-8134 1U Rackmount Firewall, Gen 6 Firewall Replacement with APSS 1-Year

Brand:
SonicWall
Part Number:
03-SSC-8134
$19,300.00 $15,440.00 Instant Savings $3,860.00

Net 30 or as low as $—/month Apply Now

Quote

Overview

The SonicWall Gen 7 NSa Series is a 1U next-generation firewall line for medium- to large-sized enterprises. The 03-SSC-8134 is the NSa 5700 Gen 6 Firewall Replacement with APSS bundle. It combines the appliance with 1 year (12 months) of the Advanced Protection Security Suite (APSS). SonicWall offers it to owners replacing a Gen 6.5 or earlier SonicWall firewall.

Technical Details

The SonicWall NSa 5700 03-SSC-8134 is a 1U rackmount next-generation firewall running SonicOS 7, with 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45. Threat Prevention throughput is 15 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (28 Gbps firewall inspection), and it holds up to 5,000,000 concurrent SPI connections. This part number bundles the appliance with Gen 6 Firewall Replacement with APSS for 1 year (12 months). It is used at a campus or main-office internet edge, in the DMZ and between user and server segments.

Best For

The NSa 5700 suits a campus or main-office internet edge that needs 15 Gbps of Threat Prevention throughput and up to 5,000,000 concurrent SPI connections. It suits buyers who want Gen 6 Firewall Replacement with APSS for 1 year activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.

Not suitable if:

  • your inspected traffic exceeds 15 Gbps, the published Threat Prevention throughput

03-SSC-8134 Specifications

Ports & Uplinks
Fixed Interfaces24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45
Max Port Speed10 GbE
Management & Console Ports1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0
Performance & Scale
Firewall Throughput28 Gbps (RFC 2544)
Threat Prevention Throughput15 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled)
TLS/SSL Inspection Throughput7 Gbps (DPI SSL)
IPsec VPN Throughput15 Gbps (1418-byte UDP, AESGMAC16-256)
Maximum Concurrent Sessions5,000,000 (SPI)
New Sessions per Second228,000
Maximum DPI Connections3,500,000 (DPI)
Maximum IPsec VPN Tunnels6,000 (site-to-site)
Hardware & Memory
Onboard Storage128 GB (storage expansion slot up to 1 TB)
Power & Thermal
Power Supply350 W; 100-240 VAC input (50-60 Hz)
Redundant Power SupplyOptional
Maximum Power Consumption128.1 W
Cooling2 removable fans
Physical & Environmental
Form Factor1U Rackmount
Dimensions (H x W x D)1.8 × 16.9 × 18.1 in (4.5 × 43 × 46.5 cm)
Weight17.2 lb (7.8 kg)
Operating Temperature32 to 105 °F (0 to 40 °C)
Software
Operating SystemSonicOS 7
High AvailabilityActive/Passive with stateful synchronization
Central Management PlatformNetwork Security Manager (NSM)
Routing Protocols & IPv6BGP4, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified

FAQ

Does the SonicWall NSa 5700 03-SSC-8134 include a security subscription?

Yes. The 03-SSC-8134 includes 1 year (12 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware support, and SaaS or on-premises Network Security Manager (NSM) management with 7-day alerting, advanced reporting and analytics. When the term ends the services stop receiving updates unless the subscription is renewed.

How much traffic can the SonicWall NSa 5700 03-SSC-8134 handle?

SonicWall publishes no user count, so size the NSa 5700 on its figures. Firewall inspection throughput is 28 Gbps, but Threat Prevention throughput is 15 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 5,000,000 concurrent SPI connections and 3,500,000 DPI connections, and opens 228,000 new connections per second.

What interfaces does the SonicWall NSa 5700 03-SSC-8134 have?

The NSa 5700 provides 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.

Does the SonicWall NSa 5700 03-SSC-8134 support high availability?

The NSa 5700 supports Active/Passive high availability with stateful synchronization.

What is the difference between the NSa 5700 and the NSa 6700?

Both run the same SonicOS 7. The NSa 5700 is rated at 28 Gbps firewall inspection throughput, 15 Gbps Threat Prevention throughput and 5,000,000 concurrent SPI connections; the NSa 6700 is rated at 36 Gbps, 19 Gbps and 8,000,000. Check both interface sets in the specification tables.

What is the NSa 5700 Gen 6 Firewall Replacement with APSS bundle?

SonicWall lists the 03-SSC-8134 as a Gen 6 firewall replacement bundle: the NSa 5700 appliance with APSS for 1 year. It is intended for owners replacing a Gen 6.5 or earlier SonicWall firewall; Network Devices Inc. confirms eligibility before ordering.

Does the 03-SSC-8134 include SonicWall support?

Support is included for the bundle term: SonicWall's Gen 7 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.

How is the SonicWall NSa 5700 03-SSC-8134 managed?

The NSa 5700 is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.

What condition is the 03-SSC-8134 sold in, and what warranty applies?

Network Devices Inc. supplies the 03-SSC-8134 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
