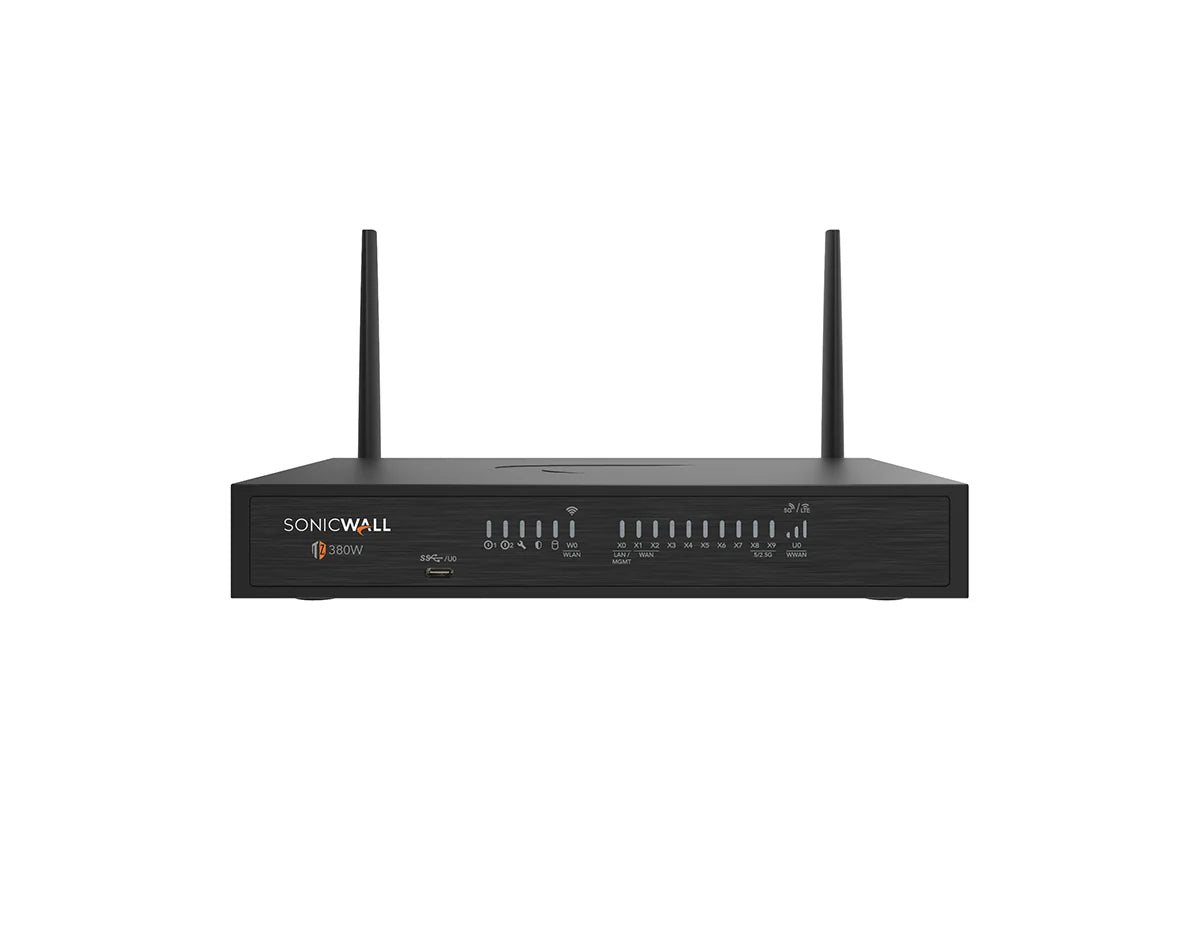

SonicWall TZ380W 03-SSC-7725 Desktop Firewall, Wireless-AX, Secure Upgrade Plus Advanced Edition 2-Year, INTL
Overview
The SonicWall TZ Series (Gen 8) is an SD-Branch platform for small and mid-sized organizations and distributed enterprises in a desktop form factor. It runs SonicOS 8 with Secure SD-WAN, zero-touch deployment and centralized management through Network Security Manager (NSM), and it integrates SonicWall Switch and SonicWave access points. The 03-SSC-7725 is the TZ380W Wireless-AX Secure Upgrade Plus Advanced Edition bundle for international markets. It combines the appliance with 2 years (24 months) of the Advanced Protection Security Suite (APSS). Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls.
Technical Details
The SonicWall TZ380W 03-SSC-7725 is a desktop next-generation firewall running SonicOS 8, with 8×1GbE RJ45, 2×5/2.5/1GbE SFP+. Threat Prevention throughput is 1.5 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (3.5 Gbps firewall inspection), and it holds up to 1,100,000 concurrent SPI connections. The Wireless-AX model adds a 2x2 802.11ax radio. This part number bundles the appliance with Secure Upgrade Plus Advanced Edition for 2 years (24 months). It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ380W suits a small office, branch or retail site that needs 1.5 Gbps of Threat Prevention throughput and up to 1,100,000 concurrent SPI connections. It suits buyers who want Secure Upgrade Plus Advanced Edition for 2 years activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 1.5 Gbps, the published Threat Prevention throughput
- you need Power over Ethernet from the firewall, since this model has none
- you are not eligible for SonicWall's upgrade program, since this part number is restricted
- you require native rack mounting without an additional accessory, since this is a desktop appliance and requires a separate SonicWall rack mount kit
03-SSC-7725 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 8×1GbE RJ45, 2×5/2.5/1GbE SFP+ |
| Max Port Speed | 5 GbE |
| Management & Console Ports | 1×Console (Micro-USB), 1×USB (type-C) |
| Performance & Scale | |
| Firewall Throughput | 3.5 Gbps (RFC 2544) |
| Threat Prevention Throughput | 1.5 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 0.6 Gbps (DPI SSL) |
| IPsec VPN Throughput | 1.6 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 1,100,000 (SPI) |
| New Sessions per Second | 15,000 |
| Maximum DPI Connections | 250,000 (DPI) |
| Maximum IPsec VPN Tunnels | 200 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | Optional storage expansion up to 512 GB |
| Power & Thermal | |
| Power Supply | 60 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 17.4 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.38 × 5.87 × 8.86 in (3.5 × 14.9 × 22.5 cm) |
| Weight | 1.87 lb (0.85 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 8 |
| High Availability | Active/Standby with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 3.0 and above |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6 certified |
FAQ
Does the SonicWall TZ380W 03-SSC-7725 include a security subscription?
Yes. The 03-SSC-7725 includes 2 years (24 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware updates, and cloud management with 7-day alerting, advanced reporting and analytics. When the term ends the services stop receiving updates unless the subscription is renewed.
How much traffic can the SonicWall TZ380W 03-SSC-7725 handle?
SonicWall publishes no user count, so size the TZ380W on its figures. Firewall inspection throughput is 3.5 Gbps, but Threat Prevention throughput is 1.5 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 1,100,000 concurrent SPI connections and 250,000 DPI connections, and opens 15,000 new connections per second.
What interfaces does the SonicWall TZ380W 03-SSC-7725 have?
The TZ380W provides 8×1GbE RJ45, 2×5/2.5/1GbE SFP+. Management and console connectivity is 1×Console (Micro-USB), 1×USB (type-C). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ380W 03-SSC-7725 support high availability?
The TZ380W supports Active/Standby high availability with stateful synchronization.
What is the difference between the TZ380W and the TZ380?
The TZ380W adds an integrated radio to the TZ380; firewall inspection, Threat Prevention and connection figures are the same series figures. Maximum power consumption is 17.4 W on the TZ380W against 13.77 W on the TZ380.
Does the SonicWall TZ380W 03-SSC-7725 have built-in Wi-Fi?
Yes. The TZ380W is the Wireless-AX model, with a 2x2 802.11ax radio. For larger wireless deployments SonicWall pairs its firewalls with SonicWave access points.
Who can buy the TZ380W Secure Upgrade Plus bundle?
Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls, subject to SonicWall eligibility requirements. Network Devices Inc. confirms eligibility for the 03-SSC-7725 before the order is placed.
Does the 03-SSC-7725 include SonicWall support?
Support is included for the bundle term: SonicWall's Gen 8 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.
How is the SonicWall TZ380W 03-SSC-7725 managed?
The TZ380W is managed through Network Security Manager (NSM) 3.0 and above, and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 03-SSC-7725 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-7725 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
