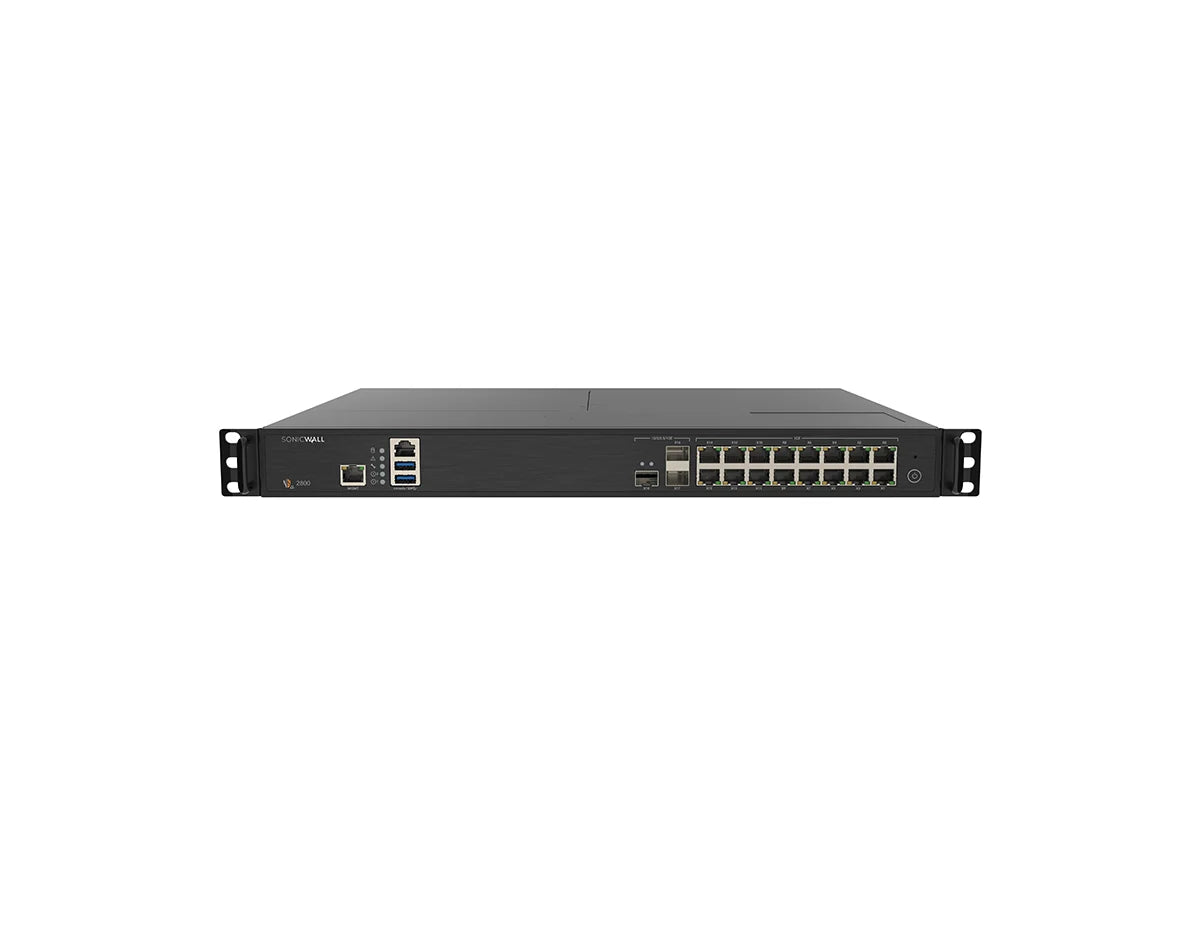

SonicWall NSa 2800 03-SSC-4681 1U Rackmount Firewall, Secure Upgrade Plus Advanced Edition 2-Year
Overview
The SonicWall Gen 8 NSa Series is a 1U rack-mountable next-generation firewall line with simplified licensing across Hardware Only, Advanced and Managed Protection options. The 03-SSC-4681 is the NSa 2800 Secure Upgrade Plus Advanced Edition bundle. It combines the appliance with 2 years (24 months) of the Advanced Protection Security Suite (APSS). Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls.
Technical Details
The SonicWall NSa 2800 03-SSC-4681 is a 1U rackmount next-generation firewall running SonicOS 8, with 16×1GbE RJ45, 3×10/5/2.5/1GbE SFP/SFP+. Threat Prevention throughput is 6 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (8 Gbps firewall inspection), and it holds up to 2,000,000 concurrent SPI connections. This part number bundles the appliance with Secure Upgrade Plus Advanced Edition for 2 years (24 months). It is used at a campus or main-office internet edge, in the DMZ and between user and server segments.
Best For
The NSa 2800 suits a campus or main-office internet edge that needs 6 Gbps of Threat Prevention throughput and up to 2,000,000 concurrent SPI connections. It suits buyers who want Secure Upgrade Plus Advanced Edition for 2 years activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 6 Gbps, the published Threat Prevention throughput
- you are not eligible for SonicWall's upgrade program, since this part number is restricted
03-SSC-4681 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 16×1GbE RJ45, 3×10/5/2.5/1GbE SFP/SFP+ |
| Max Port Speed | 10 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A) |
| Performance & Scale | |
| Firewall Throughput | 8 Gbps (RFC 2544) |
| Threat Prevention Throughput | 6 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 1.8 Gbps (DPI SSL) |
| IPsec VPN Throughput | 5.5 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 2,000,000 (SPI) |
| New Sessions per Second | 50,000 |
| Maximum DPI Connections | 1,000,000 (DPI) |
| Maximum IPsec VPN Tunnels | 2,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 128 GB (expandable up to 512 GB) |
| Power & Thermal | |
| Power Supply | 90 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 52.8 W |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.73 × 17.01 × 12.83 in (4.4 × 43.2 × 32.6 cm) |
| Weight | 10.1 lb (4.6 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 8 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 3.0 and above |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6 certified |
FAQ
Does the SonicWall NSa 2800 03-SSC-4681 include a security subscription?
Yes. The 03-SSC-4681 includes 2 years (24 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware updates, and centralized management with 7-day alerting, advanced reporting and analytics. When the term ends the services stop receiving updates unless the subscription is renewed.
How much traffic can the SonicWall NSa 2800 03-SSC-4681 handle?
SonicWall publishes no user count, so size the NSa 2800 on its figures. Firewall inspection throughput is 8 Gbps, but Threat Prevention throughput is 6 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 2,000,000 concurrent SPI connections and 1,000,000 DPI connections, and opens 50,000 new connections per second.
What interfaces does the SonicWall NSa 2800 03-SSC-4681 have?
The NSa 2800 provides 16×1GbE RJ45, 3×10/5/2.5/1GbE SFP/SFP+. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSa 2800 03-SSC-4681 support high availability?
The NSa 2800 supports Active/Passive high availability with stateful synchronization.
What is the difference between the NSa 2800 and the NSa 3800?
Both run the same SonicOS 8. The NSa 2800 is rated at 8 Gbps firewall inspection throughput, 6 Gbps Threat Prevention throughput and 2,000,000 concurrent SPI connections; the NSa 3800 is rated at 12 Gbps, 8 Gbps and 3,000,000. Check both interface sets in the specification tables.
Who can buy the NSa 2800 Secure Upgrade Plus bundle?
Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls, subject to SonicWall eligibility requirements. Network Devices Inc. confirms eligibility for the 03-SSC-4681 before the order is placed.
Does the 03-SSC-4681 include SonicWall support?
Support is included for the bundle term: SonicWall's Gen 8 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.
How is the SonicWall NSa 2800 03-SSC-4681 managed?
The NSa 2800 is managed through Network Security Manager (NSM) 3.0 and above, and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 03-SSC-4681 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-4681 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
