SonicWall NSa 2800 03-SSC-4674 1U Rackmount Firewall, TotalSecure Advanced Edition 1-Year
Overview
The SonicWall Gen 8 NSa Series is a 1U rack-mountable next-generation firewall line with simplified licensing across Hardware Only, Advanced and Managed Protection options. The 03-SSC-4674 is the NSa 2800 TotalSecure Advanced Edition bundle. It combines the appliance with 1 year (12 months) of the Advanced Protection Security Suite (APSS).
Technical Details

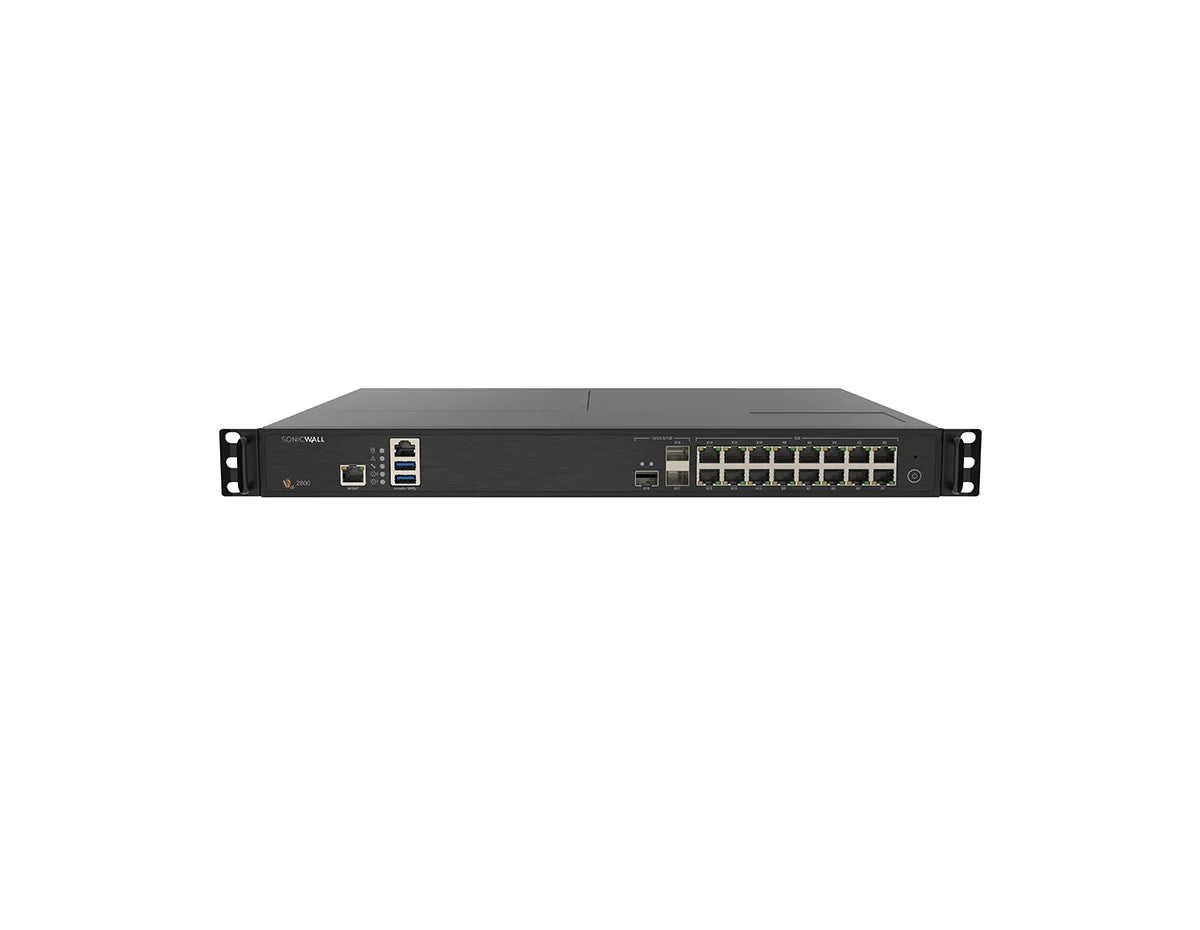

The SonicWall NSa 2800 03-SSC-4674 is a 1U rackmount next-generation firewall running SonicOS 8, with 16×1GbE RJ45, 3×10/5/2.5/1GbE SFP/SFP+. Threat Prevention throughput is 6 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (8 Gbps firewall inspection), and it holds up to 2,000,000 concurrent SPI connections. This part number bundles the appliance with TotalSecure Advanced Edition for 1 year (12 months). It is used at a campus or main-office internet edge, in the DMZ and between user and server segments.
Best For
The NSa 2800 suits a campus or main-office internet edge that needs 6 Gbps of Threat Prevention throughput and up to 2,000,000 concurrent SPI connections. It suits buyers who want TotalSecure Advanced Edition for 1 year activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 6 Gbps, the published Threat Prevention throughput
03-SSC-4674 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 16×1GbE RJ45, 3×10/5/2.5/1GbE SFP/SFP+ |
| Max Port Speed | 10 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A) |
| Performance & Scale | |
| Firewall Throughput | 8 Gbps (RFC 2544) |
| Threat Prevention Throughput | 6 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 1.8 Gbps (DPI SSL) |
| IPsec VPN Throughput | 5.5 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 2,000,000 (SPI) |
| New Sessions per Second | 50,000 |
| Maximum DPI Connections | 1,000,000 (DPI) |
| Maximum IPsec VPN Tunnels | 2,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 128 GB (expandable up to 512 GB) |
| Power & Thermal | |
| Power Supply | 90 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 52.8 W |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.73 × 17.01 × 12.83 in (4.4 × 43.2 × 32.6 cm) |
| Weight | 10.1 lb (4.6 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 8 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 3.0 and above |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6 certified |
FAQ
Does the SonicWall NSa 2800 03-SSC-4674 include a security subscription?
Yes. The 03-SSC-4674 includes 1 year (12 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware updates, and centralized management with 7-day alerting, advanced reporting and analytics. When the term ends the services stop receiving updates unless the subscription is renewed.
How much traffic can the SonicWall NSa 2800 03-SSC-4674 handle?
SonicWall publishes no user count, so size the NSa 2800 on its figures. Firewall inspection throughput is 8 Gbps, but Threat Prevention throughput is 6 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 2,000,000 concurrent SPI connections and 1,000,000 DPI connections, and opens 50,000 new connections per second.
What interfaces does the SonicWall NSa 2800 03-SSC-4674 have?
The NSa 2800 provides 16×1GbE RJ45, 3×10/5/2.5/1GbE SFP/SFP+. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSa 2800 03-SSC-4674 support high availability?
The NSa 2800 supports Active/Passive high availability with stateful synchronization.
What is the difference between the NSa 2800 and the NSa 3800?
Both run the same SonicOS 8. The NSa 2800 is rated at 8 Gbps firewall inspection throughput, 6 Gbps Threat Prevention throughput and 2,000,000 concurrent SPI connections; the NSa 3800 is rated at 12 Gbps, 8 Gbps and 3,000,000. Check both interface sets in the specification tables.
Does the 03-SSC-4674 include SonicWall support?
Support is included for the bundle term: SonicWall's Gen 8 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.
How is the SonicWall NSa 2800 03-SSC-4674 managed?
The NSa 2800 is managed through Network Security Manager (NSM) 3.0 and above, and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 03-SSC-4674 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-4674 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
