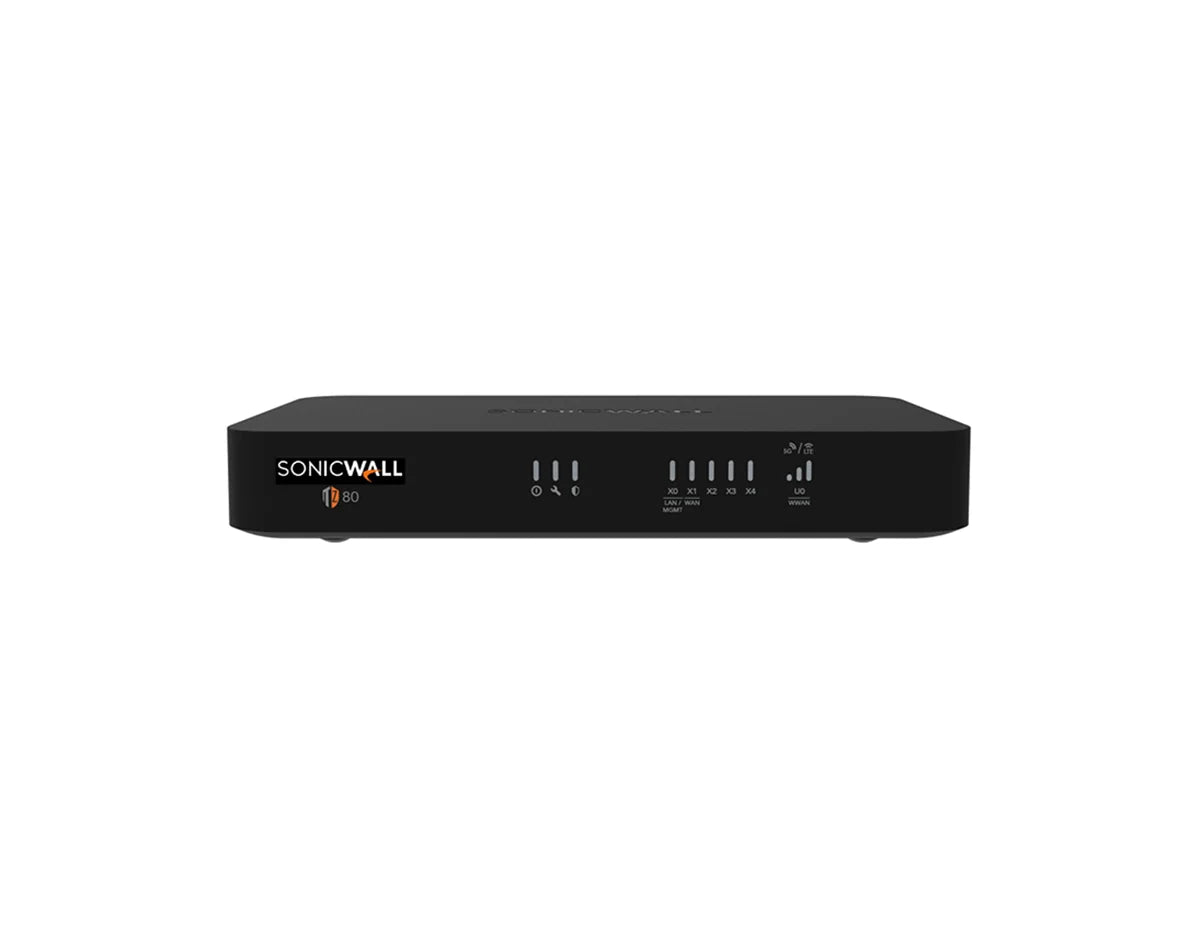

SonicWall TZ80 03-SSC-2847 Desktop Firewall, Secure Upgrade Plus Secure Connect Edition 3-Year
Overview
The SonicWall TZ80 is a subscription-based next-generation firewall for small offices, home offices and IoT deployments. SonicWall sells it only with a subscription such as Secure Connect Lite, Secure Connect or APSS; a hardware-only version is not available. The 03-SSC-2847 is the TZ80 Secure Upgrade Plus Secure Connect Edition bundle. It combines the appliance with 3 years (36 months) of Secure Connect, SonicWall's connectivity suite for the TZ80. It is the Secure Upgrade Plus upgrade path for TZ80 hardware with the Secure Connect service suite. The security services come with the Advanced Protection Service Suite instead.
Technical Details
The SonicWall TZ80 03-SSC-2847 is a desktop next-generation firewall running SonicOS, with 4×1GbE RJ45, 1×1GbE SFP. Threat Prevention throughput is 0.75 Gbps once the Advanced Protection Service Suite is licensed, the same as its firewall inspection throughput, and it holds up to 300,000 concurrent SPI connections. This part number bundles the appliance with Secure Upgrade Plus Secure Connect Edition for 3 years (36 months). It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ80 suits a small office, branch or retail site that needs 0.75 Gbps of firewall inspection throughput and up to 300,000 concurrent SPI connections. It suits buyers who want Secure Upgrade Plus Secure Connect Edition for 3 years activated with the hardware. Threat Prevention figures apply only once the Advanced Protection Service Suite is licensed.
Not suitable if:
- you need Power over Ethernet from the firewall, since this model has none
- you are not eligible for SonicWall's upgrade program, since this part number is restricted
- you need a rack-mount appliance, since this is a compact desktop unit
03-SSC-2847 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 4×1GbE RJ45, 1×1GbE SFP |
| Max Port Speed | 1 GbE |
| Management & Console Ports | 1×Console, 1×USB (type-C or type-A) |
| Performance & Scale | |
| Firewall Throughput | 0.75 Gbps |
| Threat Prevention Throughput | 0.75 Gbps |
| TLS/SSL Inspection Throughput | 0.25 Gbps (DPI SSL) |
| IPsec VPN Throughput | 0.75 Gbps |
| Maximum Concurrent Sessions | 300,000 (SPI) |
| New Sessions per Second | 7,500 |
| Maximum DPI Connections | 75,000 (DPI) |
| Maximum IPsec VPN Tunnels | 50 (site-to-site) |
| Power & Thermal | |
| Power Supply | 36 W; 100-240 VAC input (50-60 Hz), 3 A |
| Redundant Power Supply | No |
| Maximum Power Consumption | 11.6 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.18 × 4.49 × 7.87 in (3.0 × 11.4 × 20.0 cm) |
| Weight | 0.97 lb (0.438 kg) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS |
| High Availability | Active/Standby with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 2.6 and above |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
FAQ
Does the SonicWall TZ80 03-SSC-2847 include a security subscription?
It includes a service subscription but not the security services. The 03-SSC-2847 includes 3 years (36 months) of Secure Connect, which covers 24x7 solution support, centralized management and orchestration, the Layer 4 firewall, SD-WAN and advanced routing, and stateful high availability. Application Control, intrusion detection and prevention, content and reputation-based filtering, Capture ATP sandboxing and DNS filtering come with the Advanced Protection Service Suite, which this part number does not include.
How much traffic can the SonicWall TZ80 03-SSC-2847 handle?
SonicWall publishes no user count, so size the TZ80 on its figures. Firewall inspection throughput is 0.75 Gbps, and Threat Prevention throughput is also 0.75 Gbps once the Advanced Protection Service Suite is licensed. It holds 300,000 concurrent SPI connections and 75,000 DPI connections, and opens 7,500 new connections per second.
What interfaces does the SonicWall TZ80 03-SSC-2847 have?
The TZ80 provides 4×1GbE RJ45, 1×1GbE SFP. Management and console connectivity is 1×Console, 1×USB (type-C or type-A). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ80 03-SSC-2847 support high availability?
The TZ80 supports Active/Standby high availability with stateful synchronization.
Who can buy the TZ80 Secure Upgrade Plus bundle?
The 03-SSC-2847 is the Secure Upgrade Plus upgrade path: TZ80 hardware with the Secure Connect service suite for 3 years. Network Devices Inc. confirms eligibility for the 03-SSC-2847 before the order is placed.
Does the 03-SSC-2847 include SonicWall support?
Yes. Secure Connect includes 24x7 Solution Support for the 3-year subscription term.
How is the SonicWall TZ80 03-SSC-2847 managed?
The TZ80 is managed through Network Security Manager (NSM) 2.6 and above, and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 03-SSC-2847 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-2847 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
