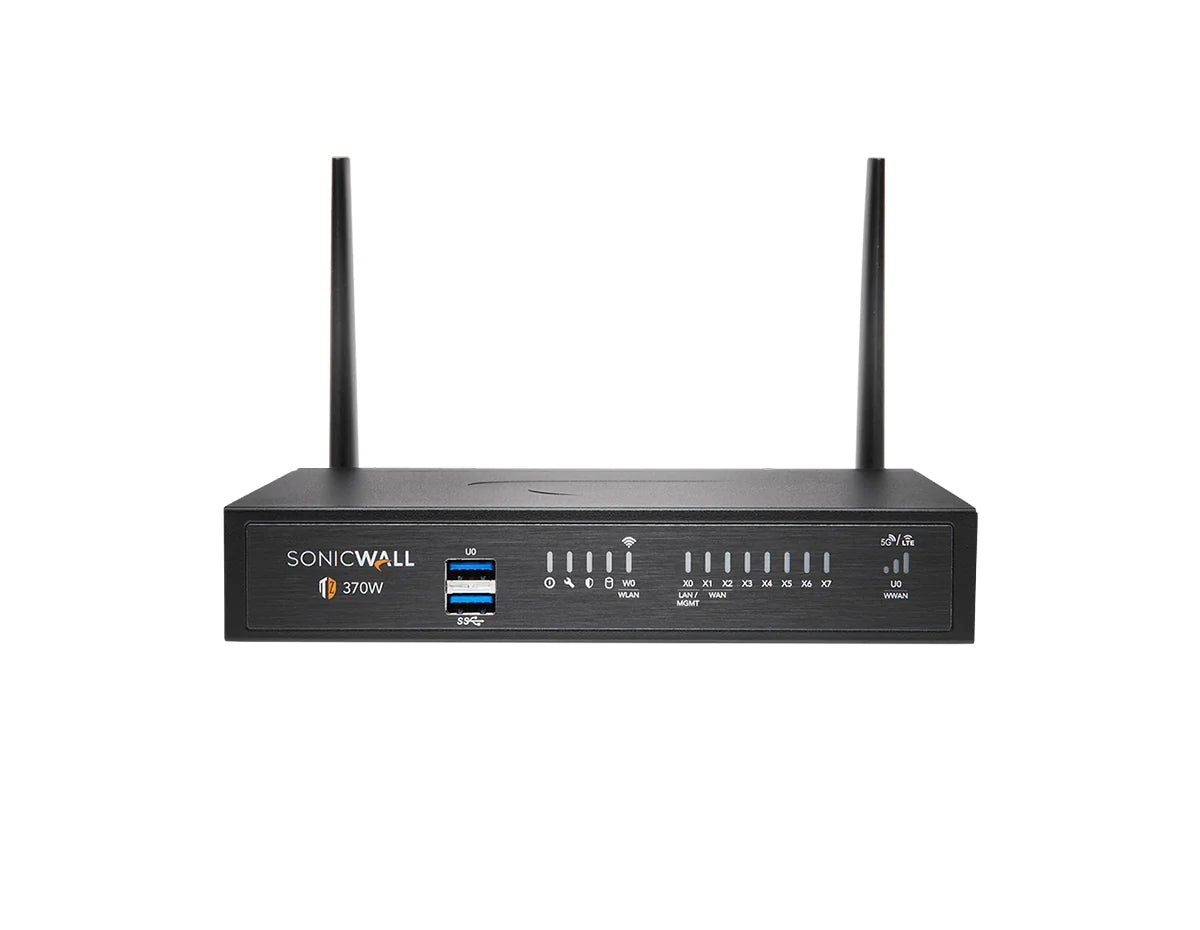

SonicWall TZ370W 03-SSC-2788 Desktop Firewall, Wireless-AC, Secure Upgrade Appliance Only, International
Overview
The SonicWall TZ Series (Gen 7) is an integrated SD-Branch platform for small and midsize businesses and branch offices in a desktop form factor. It runs SonicOS 7 with Secure SD-WAN, zero-touch deployment and management through the cloud or the firewall itself, and it integrates SonicWall Switch, SonicWave access points and Capture Client. The 03-SSC-2788 is the TZ370W Wireless-AC Secure Upgrade appliance for international markets. It carries no attached subscription and is offered only as an upgrade to an existing SonicWall appliance with an active SonicProtect subscription, for international customers. Support and optional security subscriptions are otherwise sold separately.
Technical Details
The SonicWall TZ370W 03-SSC-2788 is a desktop next-generation firewall running SonicOS 7, with 8×1GbE RJ45. Threat Prevention throughput is 1 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (3 Gbps firewall inspection), and it holds up to 900,000 concurrent SPI connections. The Wireless-AC model adds a 2x2 802.11ac Wave 2 radio. This part number is Appliance Only: SonicWall support and optional security subscriptions are sold separately. It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ370W suits a small office, branch or retail site that needs 1 Gbps of Threat Prevention throughput and up to 900,000 concurrent SPI connections. It suits existing SonicProtect subscribers upgrading their hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 1 Gbps, the published Threat Prevention throughput
- you need security services included in the part number, since this one is Appliance Only
- you need Power over Ethernet from the firewall, since this model has none
- you do not hold an active SonicProtect subscription, since this upgrade appliance is restricted to SonicProtect customers
- you require rack mounting without an additional kit, since this is a desktop appliance and requires a separate rackmount kit for rack installation
03-SSC-2788 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 8×1GbE RJ45 |
| Max Port Speed | 1 GbE |
| Management & Console Ports | 1×Console, 2×USB 3.0 |
| Performance & Scale | |
| Firewall Throughput | 3 Gbps (RFC 2544) |
| Threat Prevention Throughput | 1 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 0.5 Gbps (DPI SSL) |
| IPsec VPN Throughput | 1.38 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 900,000 (SPI) |
| New Sessions per Second | 9,000 |
| Maximum DPI Connections | 200,000 (DPI) |
| Maximum IPsec VPN Tunnels | 100 (site-to-site) |
| Power & Thermal | |
| Power Supply | 36 W external; 100-240 VAC input (50-60 Hz), 3 A |
| Redundant Power Supply | No |
| Maximum Power Consumption | 18.91 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.8 × 5.3 × 7.5 in (3.5 × 13.5 × 19 cm) |
| Weight | 1.87 lb (0.85 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Standby; stateful synchronization requires the optional Stateful HA Upgrade license |
| Central Management Platform | Network Security Manager, GMS |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall TZ370W 03-SSC-2788 include a security subscription?
No. The 03-SSC-2788 is Appliance Only: firewall, VPN and routing run on SonicOS 7, while SonicWall support and security subscriptions such as the Advanced Protection Security Suite are sold separately.
How much traffic can the SonicWall TZ370W 03-SSC-2788 handle?
SonicWall publishes no user count, so size the TZ370W on its figures. Firewall inspection throughput is 3 Gbps, but Threat Prevention throughput is 1 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 900,000 concurrent SPI connections and 200,000 DPI connections, and opens 9,000 new connections per second.
What interfaces does the SonicWall TZ370W 03-SSC-2788 have?
The TZ370W provides 8×1GbE RJ45. Management and console connectivity is 1×Console, 2×USB 3.0.
Does the SonicWall TZ370W 03-SSC-2788 support high availability?
The TZ370W supports Active/Standby high availability; stateful synchronization requires SonicWall's optional Stateful HA Upgrade license for the TZ370 series.
What is the difference between the TZ370W and the TZ370?
The TZ370W adds an integrated radio to the TZ370; firewall inspection, Threat Prevention and connection figures are the same series figures. Maximum power consumption is 18.91 W on the TZ370W against 16.84 W on the TZ370.
Does the SonicWall TZ370W 03-SSC-2788 have built-in Wi-Fi?
Yes. The TZ370W is the Wireless-AC model, with a 2x2 802.11ac Wave 2 radio, and SonicWall's datasheet notes that the integrated wireless models support either the 2.4 GHz or the 5 GHz band rather than both at once. For larger wireless deployments SonicWall pairs its firewalls with SonicWave access points.
Who can buy the 03-SSC-2788?
Only existing SonicWall customers. SonicWall offers the 03-SSC-2788 only as an upgrade to an existing SonicWall appliance with an active SonicProtect subscription, and it carries no attached subscription. Network Devices Inc. confirms eligibility before ordering.
Does the 03-SSC-2788 include SonicWall support?
Support is not included with an Appliance Only part number. SonicWall support and optional security subscriptions are sold separately, and Network Devices Inc. confirms the correct support option before the order is placed.
How is the SonicWall TZ370W 03-SSC-2788 managed?
The TZ370W is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them. SonicWall includes centralized management and alerting as part of support, so NSM management needs an active support contract or security bundle.
What condition is the 03-SSC-2788 sold in, and what warranty applies?
Network Devices Inc. supplies the 03-SSC-2788 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
