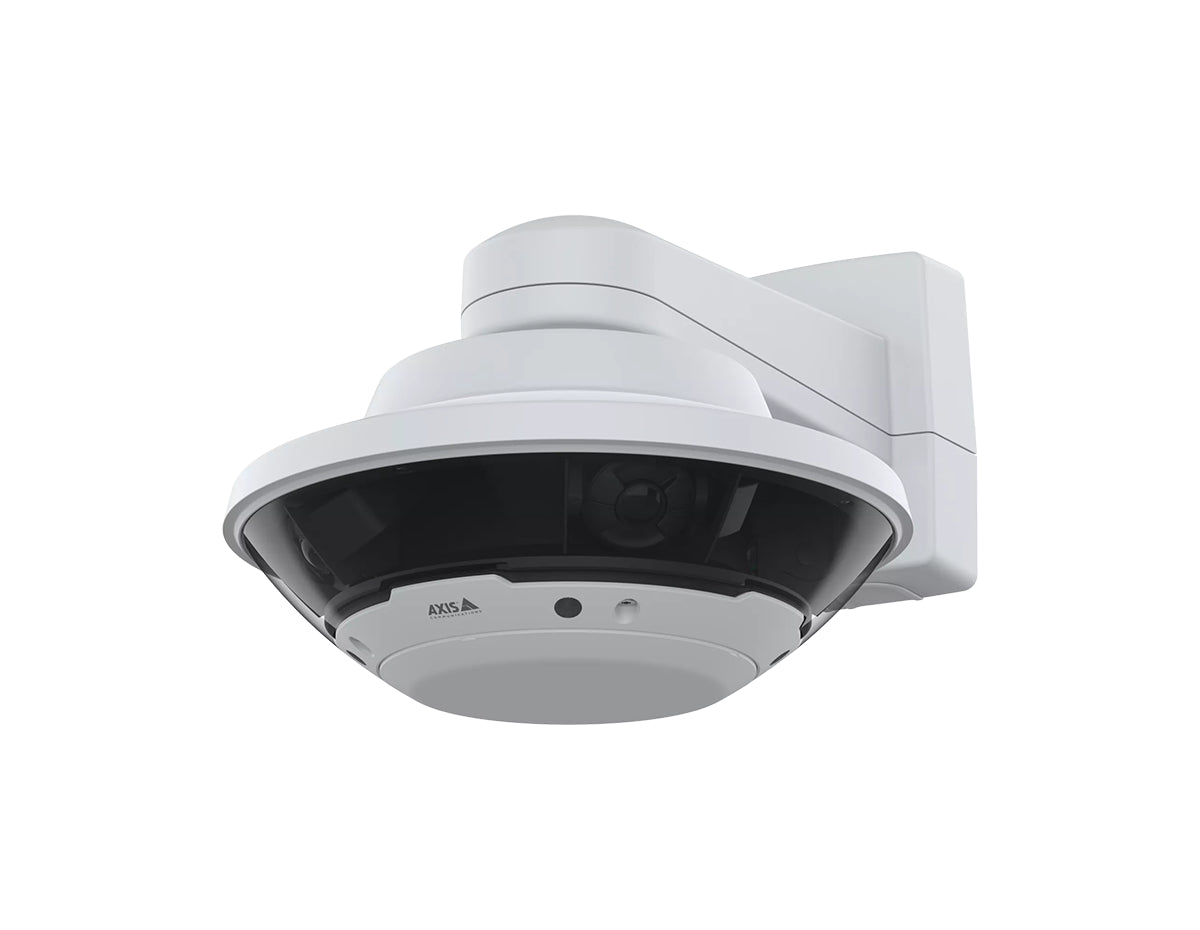

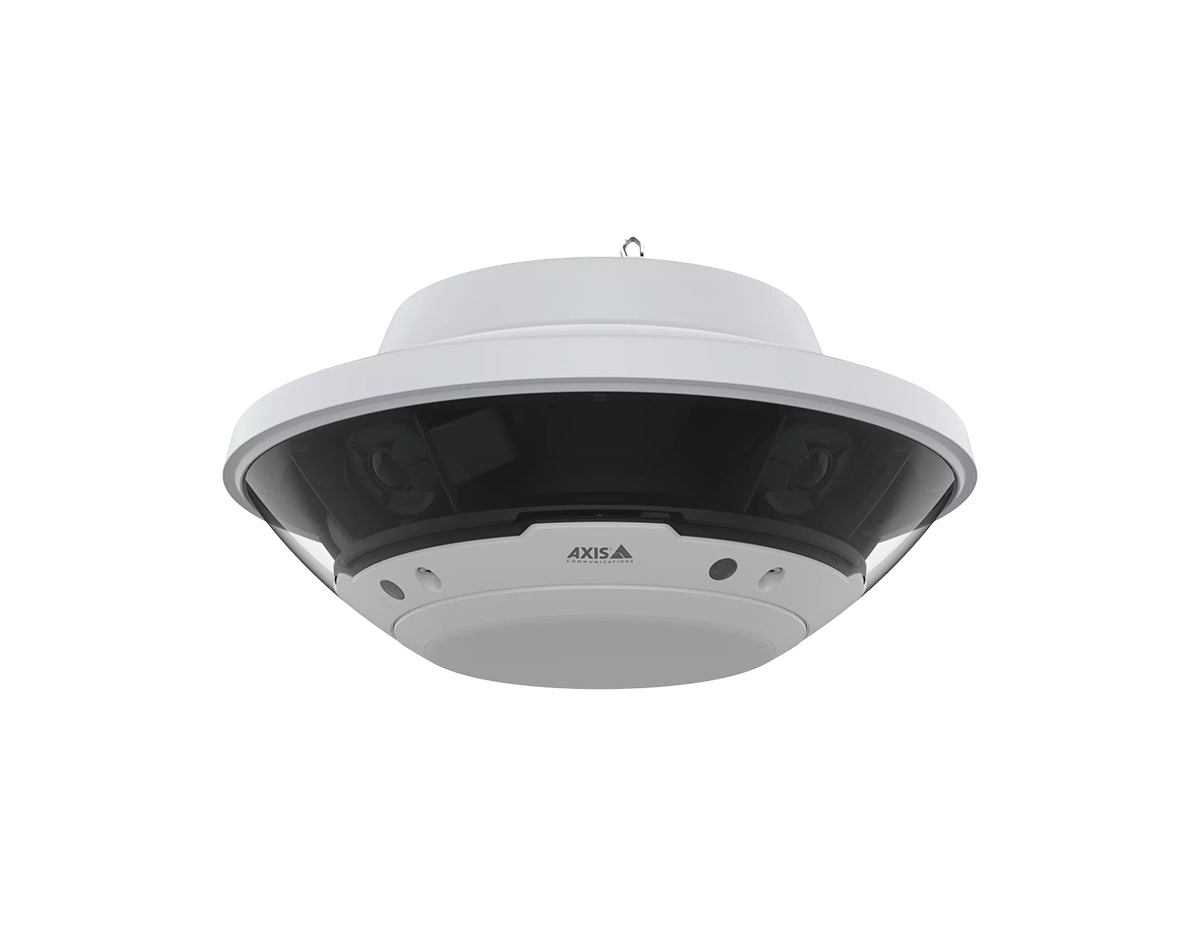

AXIS Q6300-E 4x5MP 360° Panoramic Camera (02943-001)

AXIS Q6300-E 4x5MP 360° Panoramic Camera (02943-001)

Name: AXIS Q6300-E 4x5MP 360° Panoramic Camera (02943-001)
Brand: Axis
Price: 2555.0 USD
Availability: InStock

Part Number: 02943-001

Technical Details

4x 5 MP 1/2" sensors, 360° panoramic view, Forensic WDR, Lightfinder 2.0, AI edge analytics, Axis Edge Vault security

$2,555.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AI Powered 360° Awareness for Demanding Sites

The Axis Q6300-E Panoramic Camera 02943-001 combines four 5 MP 1/2" sensors into a single 360° overview, delivering sharp multi-directional coverage for high-risk locations. Paired with recommended AXIS Q61/Q63/P56-E PTZ cameras, operators can jump from full-scene awareness to zoomed details in a single click for faster incident response. Deep learning analytics, directional audio detection, and hardened cybersecurity make it ideal for professional video surveillance deployments.

Key Benefits & Features

360° multi-sensor coverage: Four 5 MP sensors with a shared 3.7 mm F2.0 lens provide continuous 360° horizontal and 84° vertical fields of view, reducing blind spots and the number of cameras needed on site.
AI enhanced edge analytics: Dual ARTPEC-8 SoCs with a deep learning processing unit power AXIS Object Analytics, scene metadata, and video motion detection for accurate detection of people and vehicles at the edge.
Autopilot and directional audio detection: The camera can trigger an integrated PTZ to move toward detected motion or sudden audio incidents, helping operators verify events in real time.
Outstanding image quality in challenging light: Forensic WDR up to 120 dB and Lightfinder 2.0 deliver detail in scenes with strong contrasts and low light, while 2D and 3D noise reduction keep bandwidth controlled.
Hardened cybersecurity and reliability: Axis Edge Vault with secure boot, signed OS, secure keystore, and encrypted storage protects device identity and video integrity, backed by outdoor-ready IP66, NEMA 4X, and IK10 housing.

Ideal Use Cases

Wide area monitoring for city squares, campuses, and transport hubs that need full 360° situational awareness.
Perimeter and fence line protection when paired with PTZ for long-range identification.
Industrial plants, logistics yards, and ports requiring overview plus fast zoom on critical assets.
Commercial buildings and business parks where security teams need automated analytics and event-driven PTZ control.

Technical Specifications

Image sensor: 4 x 1/2" progressive scan RGB CMOS, 2.9 μm pixel size.
Resolution and frame rate: 4 x 2592 x 1944 up to 30 fps in all resolutions.
Lens and field of view: 3.7 mm F2.0 lens, 360° horizontal and 84° vertical field of view with autofocus and fixed iris.
Minimum illumination: Color 0.06 lux, B/W 0.03 lux at 50 IRE, F2.0.
Imaging technologies: Forensic WDR up to 120 dB, Lightfinder 2.0, Axis Zipstream with H.264/H.265, 2D/3D noise reduction.
Analytics: AXIS Object Analytics, AXIS Scene Metadata, AXIS Audio Analytics, directional audio detection, and active tampering alarm.
Cybersecurity: Axis Edge Vault with secure boot, signed OS, secure keystore, and signed video support.
Power and PoE: PoE IEEE 802.3bt 60 W for solo kit; with PTZ, PoE 90 W or AXIS High PoE 120 W, typical 14.3–29.3 W consumption.
Environmental rating: IP66, NEMA 4X, IK10, ISO 12944-6 C5 corrosion protection; supports operating temperatures from −50 °C to 55 °C depending on power method.
Edge storage: microSD/microSDHC/microSDXC support with AES-XTS-Plain64 256bit encryption and NAS recording.

Secure Your Site with Axis Q6300-E Today

Deploy the Axis Q6300-E Panoramic Camera 02943-001 for AI-driven 360° awareness, seamless PTZ integration, and hardened protection of your most critical areas. Order today to upgrade your surveillance capabilities.

Properties

Model	AXIS Q6300-E Panoramic Camera
SKU	02943-001
Product Type	Panoramic multidirectional camera with 360° overview
Image Sensor	4 × 1/2" progressive scan RGB CMOS; 2.9 µm pixel size
Effective Resolution	4 × 2592 × 1944 (5 MP) to 320 × 240 per sensor; default 2592 × 1944
Lens	3.7 mm, F2.0; M14 mount; fixed iris; autofocus; minimum focus distance 1.0 m (3.3 ft)
Field of View	360° overall; horizontal 108.4° per sensor; vertical 84°
Day and Night	Automatic IR-cut filter
Minimum Illumination	Color: 0.06 lux at 50 IRE, F2.0; B/W: 0.03 lux at 50 IRE, F2.0
Shutter Speed	1/66500 s to 2 s
Wide Dynamic Range	Forensic WDR up to 120 dB (depending on scene)
Image Processing	Axis Zipstream, Forensic WDR, Lightfinder 2.0; 2D/3D noise reduction; scene profiles: outdoor, indoor, forensic
Video Compression	H.264 (Baseline, Main, High); H.265 (Main); Motion JPEG
Max Frame Rate	Up to 30 fps (50/60 Hz) in all resolutions
Video Streams	Up to 20 unique, configurable video streams; controllable frame rate and bandwidth; low latency mode
Processing Platform	Dual ARTPEC-8 SoC with deep learning processing unit (DLPU); 8 GB RAM; 8 GB Flash
Built-in Analytics	AXIS Object Analytics; AXIS Scene Metadata; AXIS Audio Analytics; AXIS Video Motion Detection; active tampering alarm
Audio Features	Speaker pairing; directional audio detection with PTZ redirection
Network Interface	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T with Power over Ethernet (PoE)
Edge Storage	microSD/microSDHC/microSDXC card slot; SD card encryption (AES-XTS-Plain64 256-bit); NAS recording support
Ingress / Impact Protection	IP66; NEMA 4X; IK10; NEMA TS 2; ISO 12944-6 C5; ISO 21207 (Method B)
Power	With Solo kit: PoE IEEE 802.3bt 60 W (typ. 14.3 W, max 47.3 W); with PTZ camera: PoE IEEE 802.3bt 90 W or AXIS High PoE 120 W (typ. 29.3 W, max 80–103.4 W)
Operating Conditions	Panoramic camera with Solo kit: −50 °C to 55 °C (−58 °F to 131 °F); with PTZ camera and PoE 90 W: −30 °C to 55 °C (−22 °F to 131 °F); with Axis High PoE 120 W: −50 °C to 55 °C (−58 °F to 131 °F); humidity 10–100% RH (condensing)
Storage Conditions	−40 °C to 65 °C (−40 °F to 149 °F); 5–95% RH (non-condensing)
Effective Projected Area (EPA)	0.047 m² (0.5 ft²)
Dimensions (Ø × H)	Approx. Ø 361 mm (14.2 in) × 179.1 mm (7.05 in) with cover ring
Weight	4.0 kg (8.8 lb)

Specifications

Camera Adjustment	Pan ±180°; tilt −40° to +75°; rotation ±95°
Signal-to-Noise Ratio	>55 dB
Image Settings	Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode and zones, defog, compression, rotation 0°/90°/180°/270° (corridor format), text and image overlay, dynamic overlays, overlay widget, up to 32 polygon privacy masks including mosaic masks
Video Streaming Features	Axis Zipstream for H.264/H.265; VBR/ABR/MBR; low latency mode; video streaming indicator; up to 20 unique streams
Network Protocols	IPv4, IPv6, HTTP/HTTPS, HTTP/2, TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog, Link-Local (ZeroConf)
System Integration	Open API with VAPIX and AXIS Camera Application Platform (ACAP); ONVIF Profiles G, M, S, T; compatible with AXIS Camera Station Edge/Pro and leading third-party VMS
Event Triggers	Application, device status, directional audio detection, edge storage, I/O manual trigger and virtual inputs, MQTT, PTZ status, schedules, video events (day/night mode, tampering, bitrate degradation)
Event Actions	Autopilot control, day/night mode switching, defog mode, directional audio-driven PTZ move, image and video clip upload (FTP/SFTP/HTTP/HTTPS/network share/email), status LED, MQTT messages, HTTP/HTTPS/TCP notifications, overlay text, SNMP traps, recording, security erase
Cybersecurity – Edge	Axis Edge Vault platform; signed OS; secure boot; encrypted filesystem (AES-XTS-Plain64 256-bit); secure keystore in certified hardware (CC EAL 6+, FIPS 140-3 Level 3); Axis device ID; signed video
Cybersecurity – Network	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2); IEEE 802.1AE MACsec (PSK/EAP-TLS); IEEE 802.1AR; HTTPS/HSTS; TLS 1.2/1.3; Network Time Security (NTS); X.509 certificate support; host-based firewall
Regulatory Approvals	Product markings: UL/cUL, CE, KC, EAC, VCCI, RCM; EMC: CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A; Railway: IEC 62236-4
Safety & Environmental	Safety: CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3; Environmental: IEC 60068-2-1/2/6/14/27/78; IEC/EN 60529 IP66; IEC/EN 62262 IK10; NEMA 250 Type 4X; NEMA TS 2 (2.2.7–2.2.9); ISO 12944-6 C5; ISO 21207 (Method B)
Connectors	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE; USB port for Wi-Fi dongle (Mediatek MT7612U-based)
Storage & Recording	Support for microSD/microSDHC/microSDXC card with encryption; recording to network-attached storage (NAS); optimized for AXIS Surveillance Cards
Operating Temperature Details	Panoramic camera with Solo kit: −50 °C to 55 °C (start-up −40 °C); with PTZ camera on PoE 90 W: −30 °C to 55 °C (start-up −30 °C); with Axis High PoE 120 W: −50 °C to 55 °C (start-up −40 °C)
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Accessories

Included in the Box	Camera; adapter bracket; installation guide; owner authentication key (included in the box)
Optional – Lenses	Lens M14 7.6 mm F2.0 IR (HFOV 58.5°); Lens M14 14.1 mm F2.0 IR (HFOV 31°); Lens M14 21.4 mm F2.0 IR (HFOV 19.9°); Lens M14 30.8 mm F2.4 IR (HFOV 13.8°)
Optional – Installation Tool	AXIS T8415 Wireless Installation Tool
Optional – Storage	AXIS Surveillance Cards (microSD/microSDHC/microSDXC)
