Advanced 4-Sensor 4K Panoramic Coverage with Intelligent Analytics

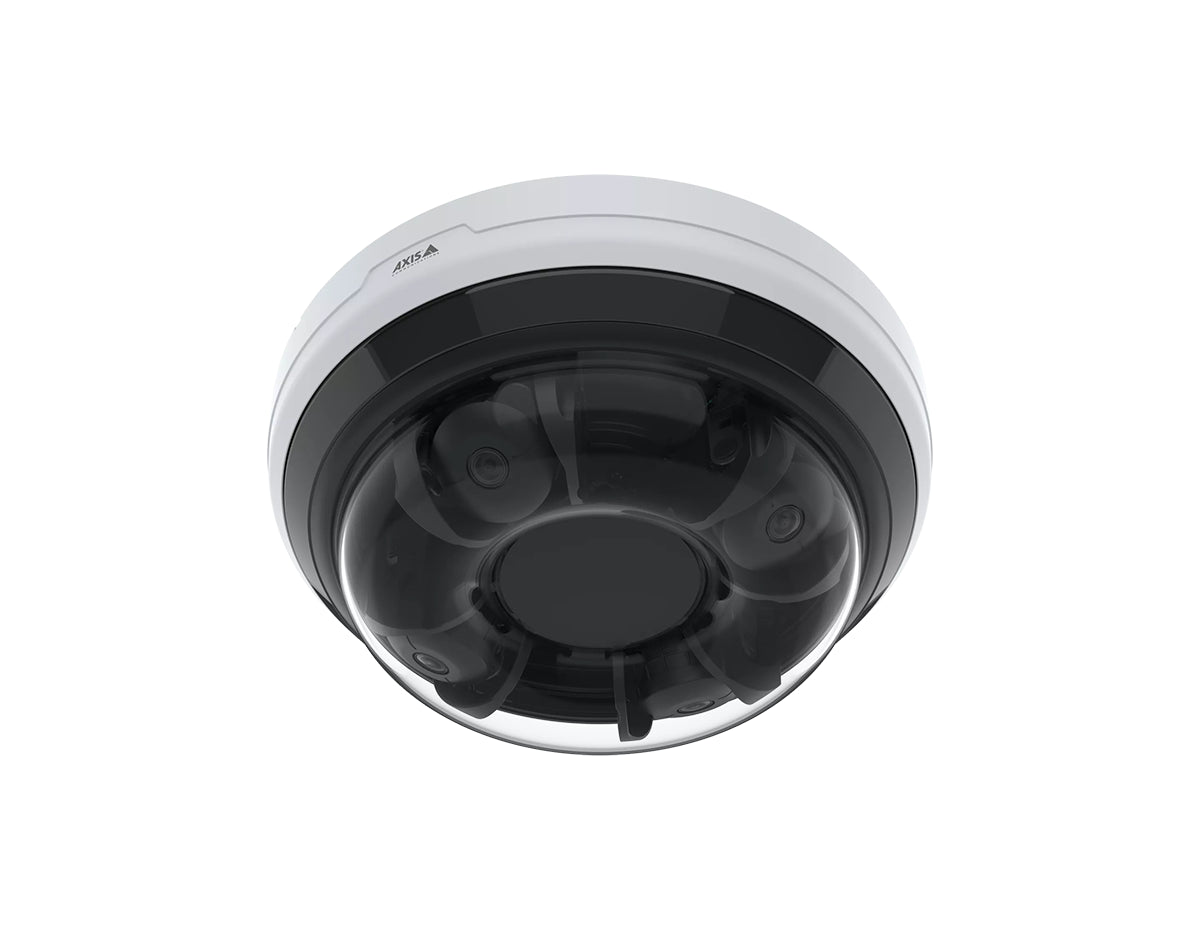

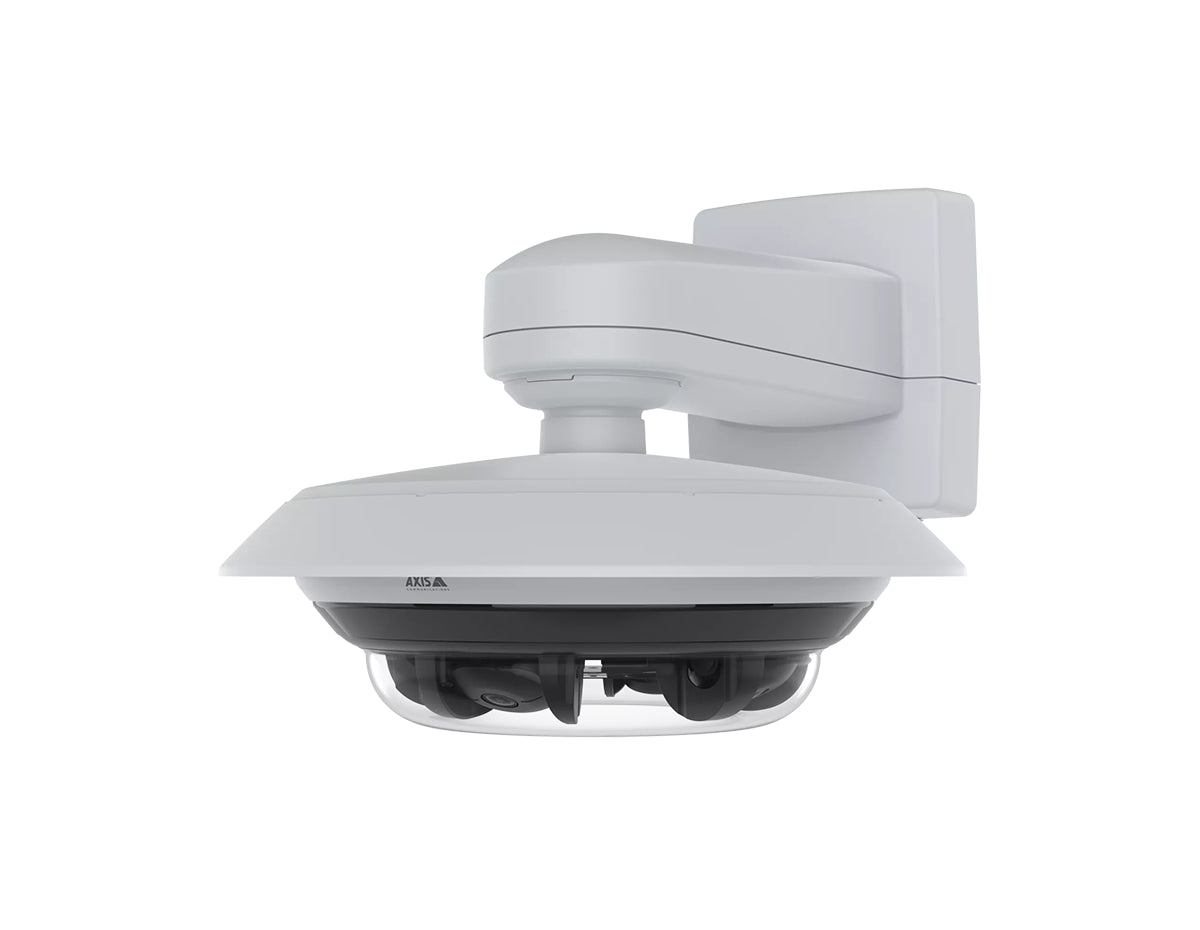

AXIS P3748-PLVE combines four independent 4K channels to provide high-resolution 360° coverage with support for powerful edge-based analytics. Remote pan, tilt, roll, and zoom (PTRZ) make it easy to commission and later readjust views over the network, helping reduce installation time and service visits. Built-in 360° OptimizedIR delivers clear surveillance in very low light and complete darkness.
Secure, AI-Ready Multidirectional Surveillance
Powered by the ARTPEC-8 system-on-chip with a dedicated deep learning processing unit, this camera supports advanced object analytics and rich scene metadata. Axis Edge Vault, secure boot, signed OS, and a FIPS 140-2 Level 2 certified secure keystore provide strong hardware-based protection for identities, keys, and video integrity in demanding deployments.
Key Benefits
- Four 4K channels for detailed panoramic situational awareness at up to 12.5/15 fps per sensor.
- Remote PTRZ functionality enables quick installation and future view adjustments without on-site refocusing.
- 360° OptimizedIR with individually controlled LEDs for uniform low-light performance up to 30 m.
- ARTPEC-8 with deep learning enables AXIS Object Analytics and rich scene metadata.
- Axis Edge Vault and TPM 2.0 secure keystore strengthen device and data protection.
- Rugged IP66, NEMA 4X, IK10 design suitable for harsh outdoor and transportation environments.
Ideal Use Cases
- Perimeter and facility monitoring requiring 360° overview from a single mounting point
- Large open areas such as warehouses, parking lots, logistics hubs, and terminals
- Critical infrastructure and smart city applications with strict cybersecurity requirements
- Retail, campus, and transit environments where multidirectional coverage reduces camera count
Technical Specifications Summary
- Image sensor: 4× 1/2.9"" RGB CMOS, 1.4 µm pixels
- Lens: 3.18–7.42 mm varifocal; 103°–41° HFOV per sensor
- Video: Up to 4× 4K at 12.5/15 fps; H.264/H.265/Motion JPEG with Zipstream
- IR: OptimizedIR, up to 20 m at 0 lux and 30 m at 0.2 lux
- Analytics: AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
- Power: PoE Class 4, typical 10.9 W, max 23.6 W
- Durability: IP66, IK10, NEMA 4X housing
- Cybersecurity: Axis Edge Vault, TPM 2.0, signed OS, secure boot, encrypted storage
Upgrade Wide-Area Coverage with One Smart Panoramic Camera
AXIS P3748-PLVE helps consolidate multiple viewpoints into a single, flexible panoramic camera with built-in AI analytics and robust cybersecurity, simplifying system design while maintaining high evidential image quality.
