Comprehensive 360° Multidirectional Surveillance with Advanced AI

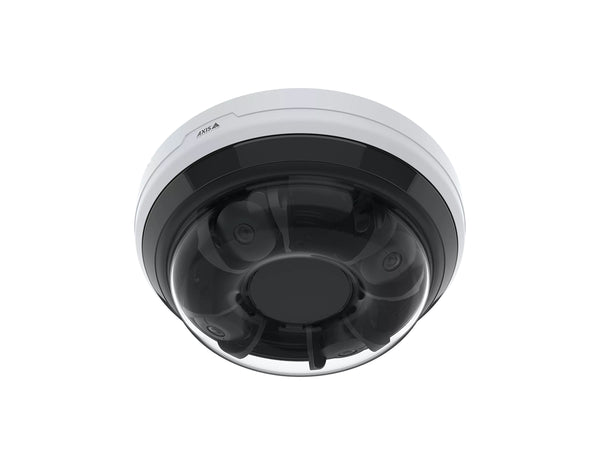

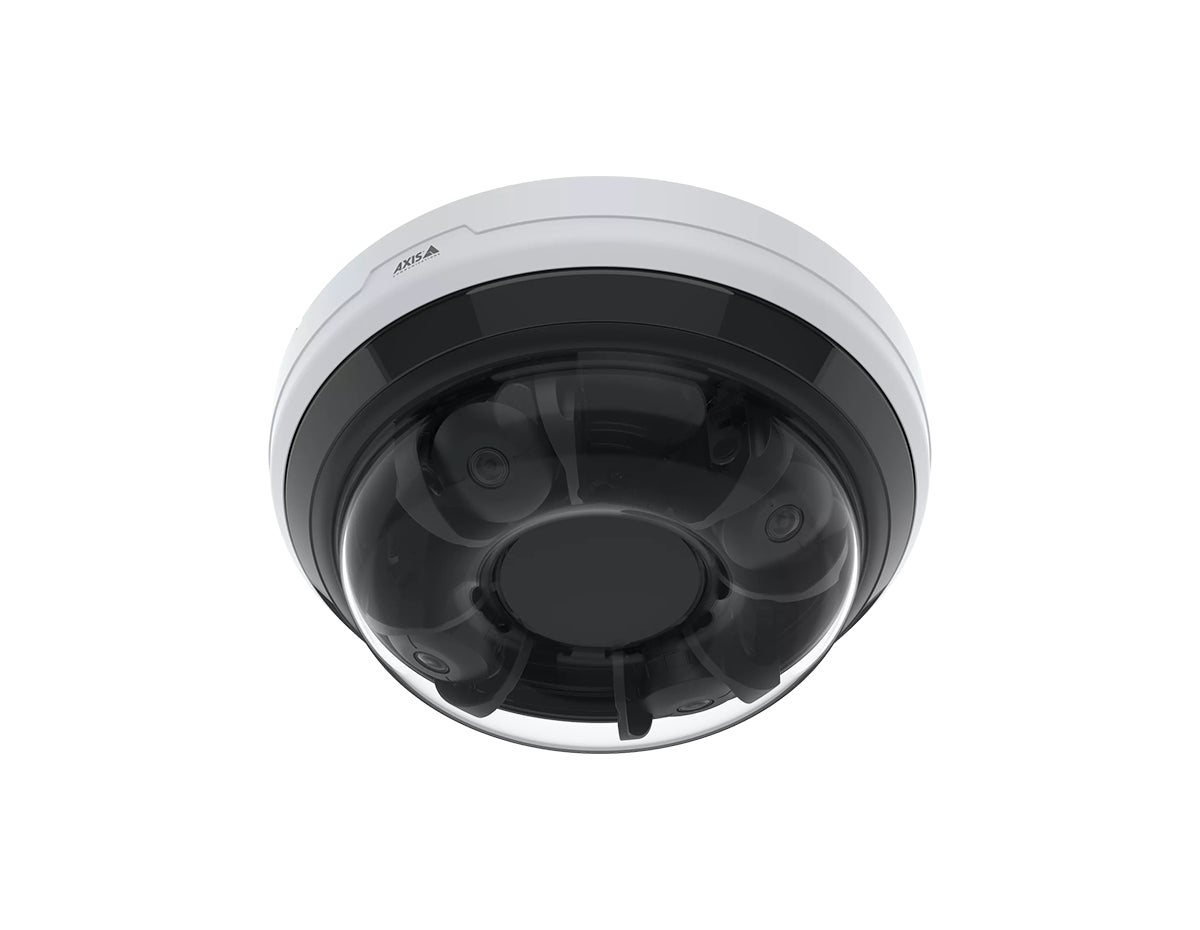

The AXIS P3747-PLVE delivers four fully motorized 5 MP imaging channels, allowing complete 360° coverage or flexible, independently aimed views. Equipped with 360° IR illumination, remote PTRZ adjustment, and advanced AI-powered analytics, it enables high-precision monitoring in wide or complex environments. Powered by ARTPEC-8 with a deep learning unit, it supports on-edge object classification and metadata generation, ensuring efficient incident detection and forensic value.
Its rugged IP66/IK10/NEMA 4X-rated design withstands harsh outdoor conditions, while Axis Edge Vault and TPM 2.0 provide market-leading cybersecurity and data integrity. Ideal for city surveillance, large facilities, and any location needing multi-view high-performance coverage from a single camera.
Key Benefits
- Four 5 MP channels with independent motorized lenses for full 360° situational awareness
- OptimizedIR with up to 30 m reach provides reliable night performance at 0 lux
- Advanced AI analytics including human/vehicle detection, zone monitoring, and crossline counting
- Remote PTRZ enables rapid deployment, simplified adjustments, and minimal maintenance
- ARTPEC-8 with DLPU ensures powerful edge intelligence and efficient video processing
- Robust IP66/IK10/NEMA 4X-rated casing for demanding outdoor environments
- Axis Edge Vault and TPM 2.0 deliver industry-leading hardware-based cybersecurity
Ideal Use Cases
- City intersections, public squares, transit hubs
- Large outdoor facilities, campuses, industrial sites
- Building perimeters and multi-directional coverage zones
- Parking lots and vehicle monitoring areas
- Critical infrastructure requiring tamper-resistant design
Technical Specifications Summary
- Image sensors: 4× 1/2.78" RGB CMOS
- Lens: 3.18–7.42 mm varifocal; 360° H-FOV (90°–40° per sensor)
- Video: 4× 5 MP at 20 fps; Quad HD at 30 fps; H.264/H.265/MJPEG
- IR: 850 nm, 20–30 m range
- Analytics: AXIS Object Analytics, Scene Metadata, tampering alarm
- Cybersecurity: Edge Vault, TPM 2.0, secure boot, signed OS/video
- Environmental: IP66, IK10, NEMA 4X, –40°C to 50°C
- Power: PoE (802.3af/at), typical 10.8 W
- Storage: microSD/microSDHC/microSDXC with encryption
Upgrade Your Operations
Enhance your surveillance coverage and operational efficiency with this advanced multidirectional panoramic camera.
