AXIS P1518-E Box Camera (02758-001)
Dual-sensor outdoor box camera with wide and tele lenses delivering 8 MP and 2 MP imaging, Forensic WDR, Lightfinder 2.0, and rugged IP66/67 and IK10 protection.
$1,834.00

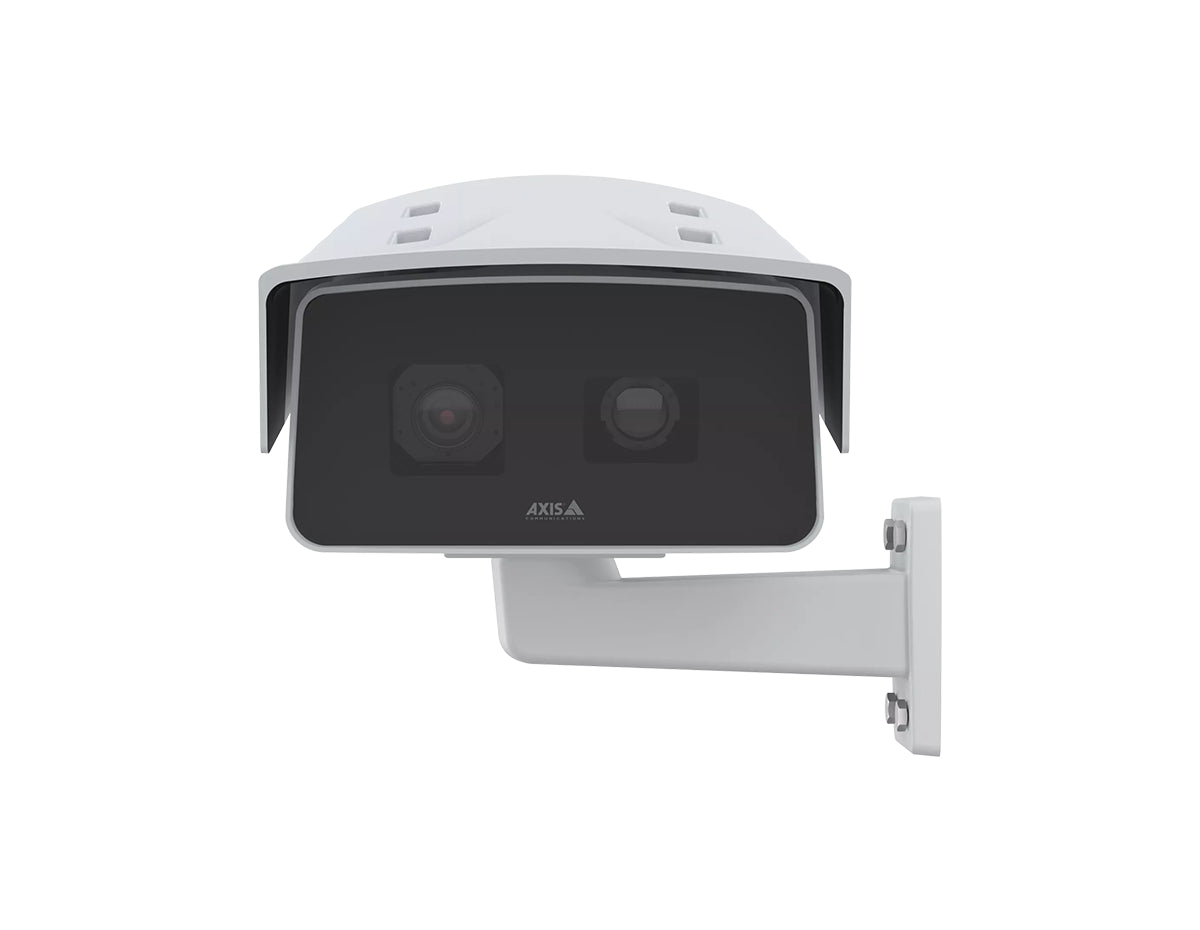

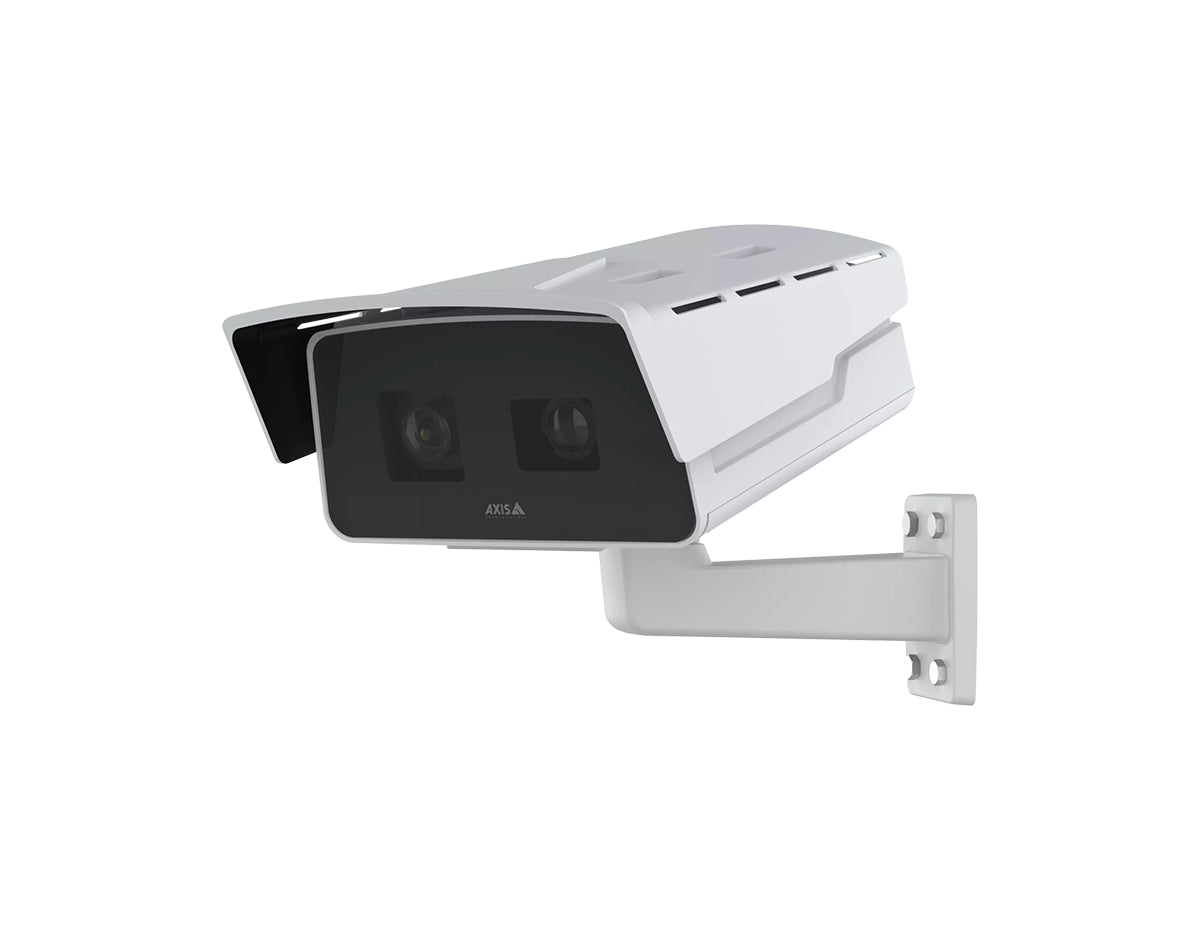

AXIS P1518-E Box Camera
The AXIS P1518-E is a powerful dual-sensor outdoor box camera engineered for environments where wide situational coverage and detailed close-up capture are both required. With an 8 MP wide sensor and a 2 MP telephoto sensor, it delivers simultaneous overviews and forensic details. Lightfinder 2.0 and Forensic WDR ensure excellent color accuracy and clarity in near-dark and high-contrast scenes.
Designed for long-term reliability, this IP66/67-, IK10-, and NEMA 4X-rated camera withstands extreme temperatures, driving rain, dust, corrosion, and hurricane-force winds. It features Axis Edge Vault for hardware-based cybersecurity and includes advanced analytics such as AXIS Object Analytics for human and vehicle classification.
Dual-Sensor Precision with Advanced Low-Light Performance
- Simultaneous wide-angle and close-up imaging thanks to dual sensors.
- Lightfinder 2.0 enables exceptional color performance in near darkness.
- Forensic WDR ensures clear detail in high-contrast lighting scenarios.
- AI-powered analytics classify humans and vehicles with precision.
- Robust environmental protection with IP66/67, IK10, and NEMA 4X ratings.
- Remote zoom and focus streamline installation and fine-tuning.
Ideal Use Cases
- Critical infrastructure requiring long-range and wide-area monitoring.
- Perimeter protection with simultaneous overview and detailed capture.
- Transportation hubs where lighting conditions rapidly change.
- Industrial sites exposed to severe weather and demanding environments.
- Security applications requiring forensic-grade identification at distance.
Technical Specifications Summary
- Sensors: 8 MP 1/1.2" CMOS + 2 MP 1/2.8" CMOS
- Lenses: 5.9–13.8 mm and 10.9–29 mm varifocal, IR-corrected
- Low Light: 0.05 lux color (5.9 mm); Lightfinder 2.0
- WDR: Forensic WDR up to 120 dB
- Video: H.264/H.265/MJPEG; up to 4K/30 fps and 1080p/60 fps
- Audio: Two-way audio, AAC-LC, LPCM, Opus
- Power: PoE Class 4 or 10–28 V DC
- Ruggedness: IK10, IP66/67, NEMA 4X, -40 °C to 60 °C
- Cybersecurity: Edge Vault, secure boot, signed OS
Upgrade Your Operations
Enhance your security performance with the AXIS P1518-E today.
| Model | AXIS P1518-E Box Camera |
|---|---|
| Image Sensors | 8 MP 1/1.2" CMOS + 2 MP 1/2.8" CMOS |
| Lenses | 5.9–13.8 mm F1.5–2.9; 10.9–29 mm F1.7 |
| Day/Night | Automatic IR-cut filter |
| Power | PoE IEEE 802.3af/at; 10–28 V DC |
| Operating Temperature | -40 °C to 60 °C (full power) |
| Storage Temperature | -40 °C to 65 °C |
| Humidity | 10–100% RH (condensing) |
| Casing | IP66/67, NEMA 4X, IK10-rated; aluminum & plastic |
| Color | White NCS S 1002-B |
| Dimensions | See datasheet dimension drawings |
| Weight | 3650 g |
| Connectors | RJ45, 3.5 mm mic/line in, RS485/RS422, DC in, I/O terminal block |
| Storage Options | microSD/microSDHC/microSDXC; NAS support |
| Certifications | CSA, UL/cUL, CE, KC, EAC, VCCI, RCM |
| Image Sensors | 8 MP: 1x 1/1.2" progressive scan RGB CMOS, 2 MP: 1x 1/2.8" progressive scan RGB CMOS |
|---|---|
| Lenses | 5.9–13.8 mm, F1.5–2.9; 10.9–29 mm, F1.7; IR-corrected; remote zoom/focus; P-iris |
| Field of View | 5.9 mm: HFOV 114°–46°; VFOV 62°–26°; 29 mm: HFOV 29°–11°; VFOV 16°–6° |
| Minimum Illumination | Color: 0.05 lux (5.9 mm) / 0.06 lux (29 mm); B/W: 0.01 lux (both lenses) |
| Shutter Speed | Up to 1/71500 s depending on WDR and lens |
| WDR | Forensic WDR up to 120 dB |
| Low-light Technology | Lightfinder 2.0 |
| Video Compression | H.264, H.265, Motion JPEG |
| Resolutions | 5.9 mm up to 3840×2160; 29 mm up to 1920×1080 |
| Frame Rate | Up to 25/30 fps (with WDR) in all resolutions; up to 50/60 fps (No WDR, 29 mm lens only) |
| Audio | Two-way audio; mic pairing; 24-bit LPCM, AAC-LC, G.711, G.726, Opus |
| Networking | IPv4/IPv6, HTTPS, QoS, SNMP, RTSP, RTP/SRTP, SSH, 802.1X, MQTT |
| Edge Storage | SD card encryption (AES-XTS-Plain64 256-bit) |
| Analytics | AXIS Object Analytics, Scene Metadata, VMD, tampering alarm, audio detection |
| Security Features | Axis Edge Vault, secure boot, signed OS, encrypted filesystem |
| Approvals | CISPR 35/32, EN 55035/55032, IEC 62262 IK10, IEC/EN 60529 IP66/67 |
| Power | PoE Class 4; 13.2 W typical / 25.5 W max; 10–28 V DC |
| Operating Conditions | -40 °C to 60 °C; 10–100% RH |
| Wind Resistance | 60 m/s sustained |
| DORI Ranges | 5.9–13.8 mm (Tele): Detect up to 193.5 m; 29 mm (Tele): Detect up to 400.7 m |
| Included Accessories | Camera, wall mount, installation guide, terminal blocks, connector guard, cable gaskets, owner authentication key |
|---|---|
| Optional Accessories | Axis IR Illuminator Kits, AXIS T8415 Wireless Installation Tool, Axis Surveillance Cards |
