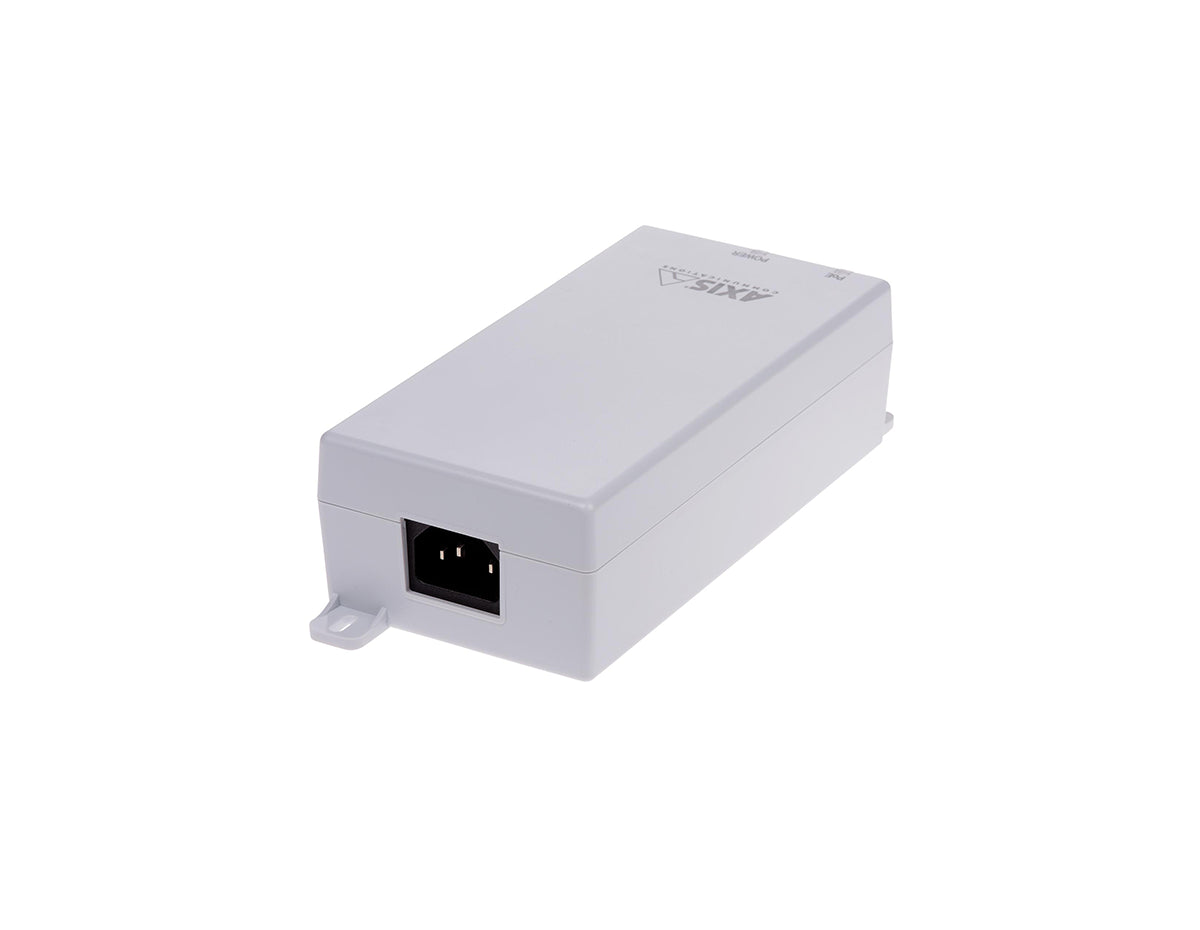

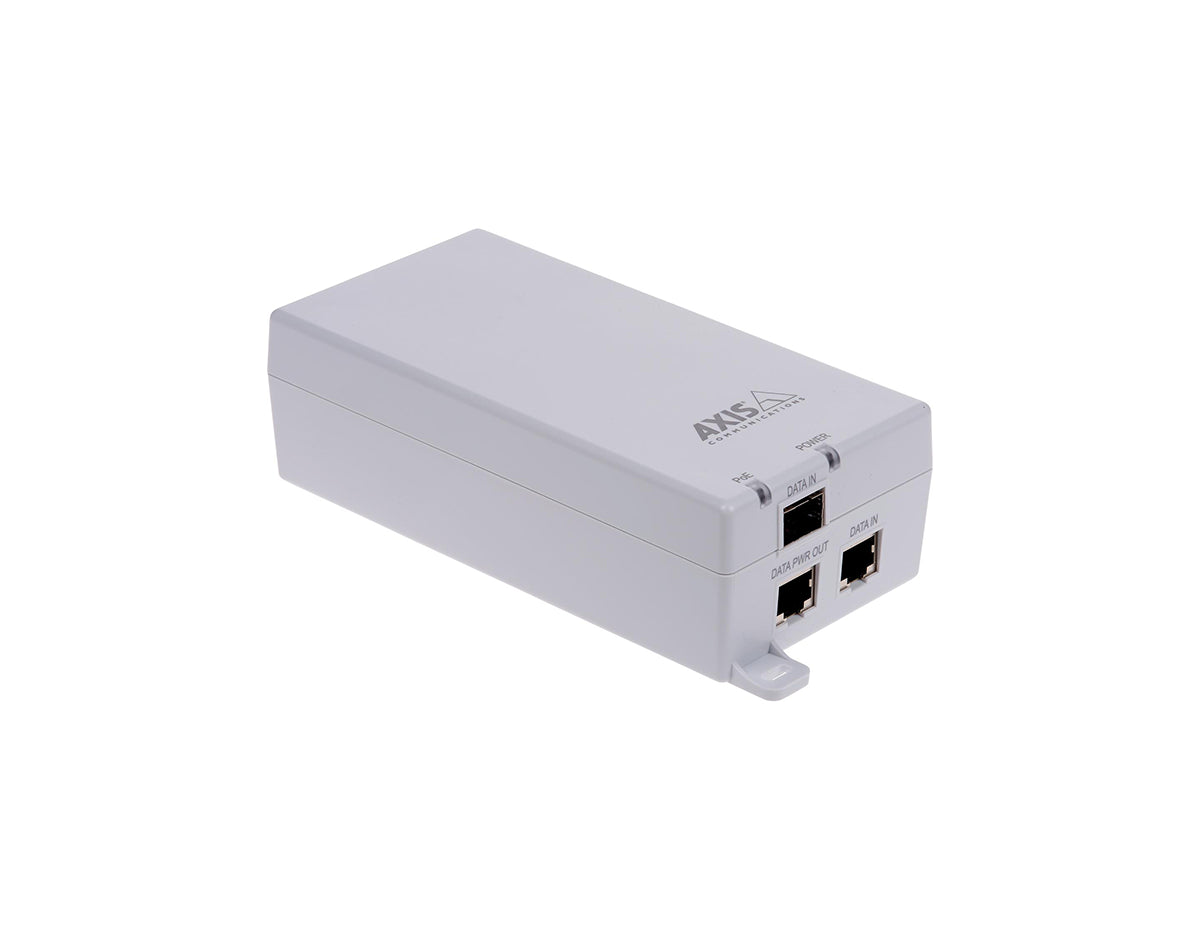

AXIS T8154 60W SFP Midspan

The AXIS T8154 60W SFP Midspan is a compact, plug-and-play solution designed for both network and fiber installations, providing Power over Ethernet (PoE) up to 60W. With an integrated power supply, it simplifies installations and minimizes the amount of required cabling. This midspan offers data input through either SFP or RJ45, making it compatible with all Axis network products that support PoE. The AXIS T8154 is ideal for scenarios requiring high power delivery, such as for powering PTZ cameras and other high-performance devices.

Key Features:

• High PoE 60W: Provides up to 60W of power, ideal for demanding Axis network devices like PTZ cameras.
• SFP Slot for Fiber Installations: Supports fiber installations through its SFP slot, allowing for greater flexibility in network design.
• Integrated Midspan: Combines data and power transmission in one device, reducing the need for additional components.
• Plug-and-Play Installation: Automatically detects PoE-enabled devices and supplies inline power.
• Wide Compatibility: Works with all Axis network products that support PoE.

Technical Specifications:

• Power Output: 55 V DC, max 60W
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, SFP slot, C14 power connector
• Operating Temperature: Up to 30W: -10 °C to 55 °C (14 °F to 131 °F); Up to 60W: -10 °C to 45 °C (14 °F to 113 °F)
• Dimensions: 50 x 80 x 184 mm (2.0 x 3.1 x 7.2 in)
• Weight: 517 g (1.1 lb)
• Approvals: IEC/EN/UL 60950-1, EN 62368-1, EN 55022 Class A, FCC Part 15 Class A

For more information about the AXIS T8154 60W SFP Midspan, visit the Axis product page.
