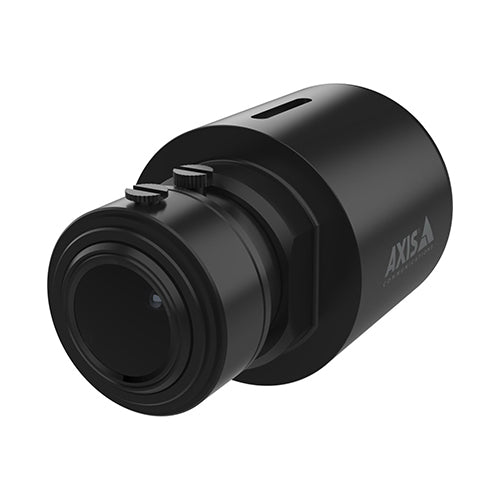

AXIS F2135-RE Fisheye Sensor, 8 pcs (02641-021)
- 2nd generation: Discreet fisheye sensor with 1080p, Only compatible with 2nd generation main units and cables, Up to 60 fps at 1080p and up to 180 fps at 720p, 185° horizontal field of view, Rugged sensor unit, IP66/IP67/IP6K9K rated
$2,279.00
AXIS F2135-RE Fisheye Sensor, 8 pcs (02641-021)
AXIS F2135-RE Fisheye Bulk 8P is a bulk pack of 8x 1080p fisheye sensors for the F-series. It has a 185° horizontal field of view and 1.98 mm focal length. AXIS F2135-RE is a rugged outdoor sensor, IP66/IP67/IP6K9K certified. It delivers up to 60 fps at 1080p or 180 fps at 720p depending on the F91 main unit. Cables and mounting accessories are sold separately. Not compatible with 1st generation F-series main units (F34, F41, F44).
| Properties | AXIS F2135-RE |
| Description | AXIS F2135-RE Fisheye Sensor is ideal for indoor installation, in ATMs, vending machines, buses, and emergency vehicles. It offers up to 1080p at 60 fps, 185° field of view, and good low-light performance in color. A bulk pack of 8x 1080p fisheye sensors. |
| Product Family | Axis Cameras |
| Product Type | Sensor |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| Wide dynamic range | – |
| PoE Class | – |
| Connectors | SMA connector (uses Axis 2nd generation SMA–FAKRA cables) |
| Built-in IR | – |
| Local storage (memory card slot) | – |
| Outdoor Ready | Yes |
| Vandal rating | – |
| IP rating | IP66, IP67, IP6K9K |
| Power (max) | 1.7 W |
| Power (average) | 1.0 W |
| Dimensions | 46 mm (1.8 in) ø 29.8 mm (1.2 in) |
| Weight | 50 g (0.1 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Sustainability | PVC free |
| Specifications | AXIS F2135-RE |
| Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | - |
| Max video resolution | 1920x1080 |
| Max frames per second | 180 |
| Day and Night functionality | Yes (fixed IR-cut filter) |
| Electronic image stabilization | – |
| Focal length | 1.98 mm |
| Varifocal lens | No |
| Aperture | 2.0 |
| Horizontal field of view | 185 ° |
| Vertical field of view | 97 ° |
| Lens mount | M12 |
| Replaceable lens | Yes |
| Audio Support | – |
| Optional accessories | |
| AXIS TU6002 | Right-angle SMA Adaptor |
| AXIS TU6004-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 | 2nd generation Plenum Cable |
| AXIS TU6007-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TF1801-R | Lens Hood |
| AXIS TF1201-RE | Recessed mounting of modular sensor units |
| AXIS TF1203-RE | Recessed mounting of modular sensors |
| AXIS TF1803-RE | Lens Protector |
| AXIS TF1901-RE | Swivel Mount |
| AXIS TF1902-RE | Mounting Bracket |
