AXIS T6101 MK II AUDIO AND I/O INTERFACE (02553-001)
| Model: | 02553-001 |
| Detail: |
Supports two-way audio communication, Power over Ethernet (PoE), Includes two configurable supervised inputs/digital outputs,
< |
| List Price: | |
| Price: | $125.00 |
| You Save: | $4.00 (3% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

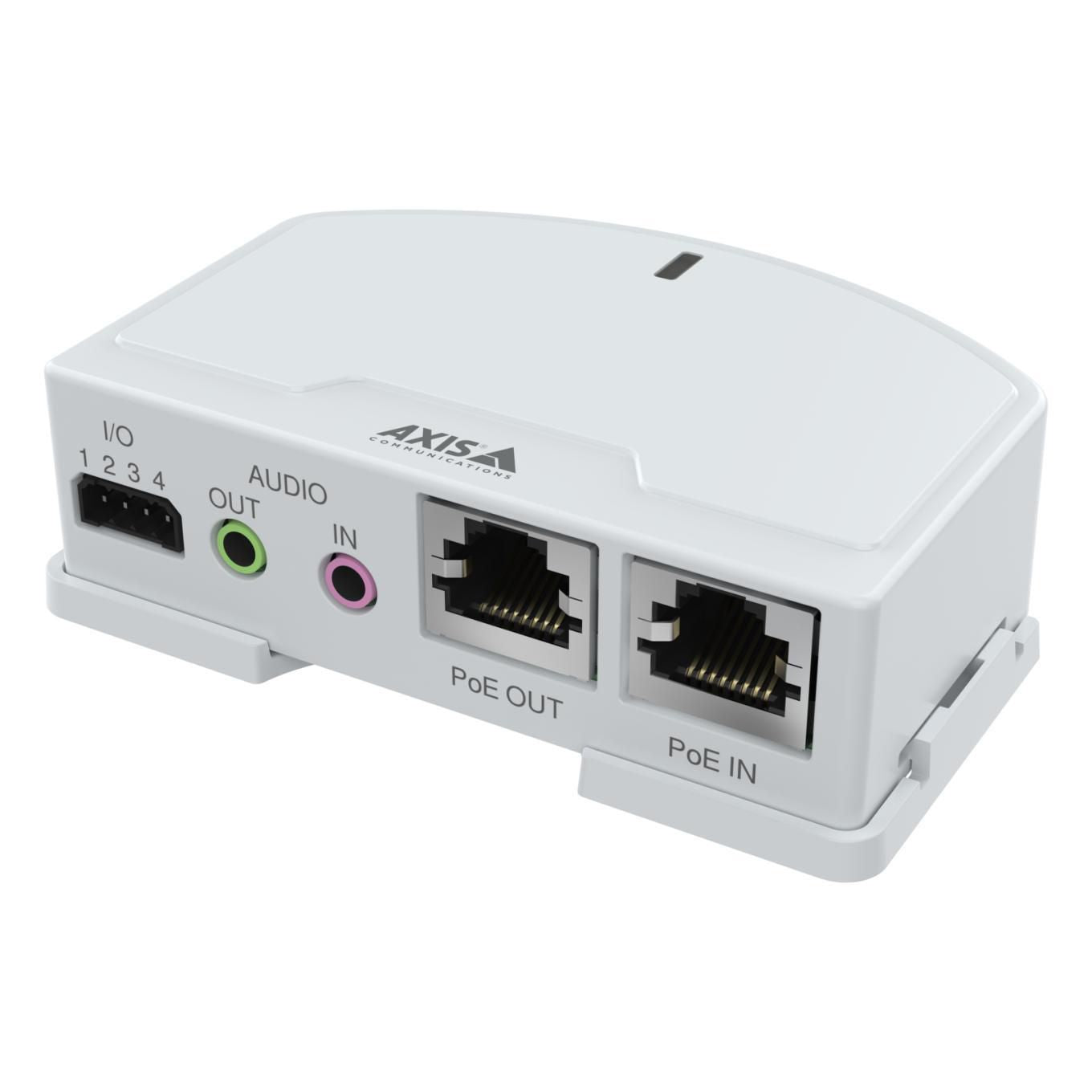

Axis T6101 Audio and I/O Interface
The Axis T6101 Audio and I/O Interface is a seamless solution that adds audio and I/O ports to your Axis cameras, enabling two-way audio and configurable I/O connectivity. This compact and cost-efficient device is designed to work with Axis cameras that do not have built-in audio and I/O functionality, using portcast technology to provide audio and video in one stream over the network. With its plug-and-play design, the Axis T6101 can be installed anywhere between the switch and the camera, delivering enhanced functionality exactly where it's needed.
Key Features:
- Two-Way Audio: Supports two-way audio communication, enhancing the versatility of your surveillance system.
- Configurable I/O Ports: Includes two configurable supervised inputs/digital outputs for various triggering actions and event management.
- Portcast Technology: Allows the use of the camera’s IP address to deliver audio and video in a single stream, reducing network complexity.
- Power over Ethernet (PoE): Simplifies installation with PoE, delivering power and data over a single cable.
- Designed for Flexibility: Can be mounted in the AXIS T94S01P Conduit Back Box, providing a versatile installation solution.
Technical Overview:
- Recommended for: Enhancing Axis cameras with audio and I/O capabilities in surveillance systems requiring two-way communication and advanced event management.
- Audio: Two-way audio streaming, configurable bitrate, supports various audio encodings including LPCM, AAC-LC, G.711 PCM, and more.
- I/O Interface: Two configurable supervised inputs/digital outputs, 12 V DC output (max load 50 mA).
- Power: Powered via Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 or 3.
- Connectivity: PoE in and out via RJ45, audio in/out via 3.5 mm connectors, I/O via 4-pin 2.5 mm terminal block.
- Operating Conditions: -40°C to 55°C (-40°F to 131°F), 10–85% RH (non-condensing).
- Dimensions: 90 mm x 62 mm x 23 mm (3 1/2 in x 2 1/2 in x 1 in).
- Weight: 100 g (0.22 lb).
- Compliance: EMC, safety, and environmental certifications including EN 55032, IEC/EN/UL 62368-1.
You can check the related tab for the Axis T6101 datasheet.
Specifications
| Audio Capabilities | Two-way audio streaming with configurable bitrate, supporting LPCM, AAC-LC, G.711 PCM, and more for flexibility. |
| I/O Interface | Includes two configurable supervised inputs/digital outputs, 12 V DC output with a max load of 50 mA. |
| Power Supply | PoE IEEE 802.3af/802.3at, Type 1 Class 2 or 3, simplifying power management. |
| Connectivity | PoE in and out via RJ45, audio in/out through 3.5 mm connectors, and I/O through 4-pin 2.5 mm terminal block. |
| Operating Temperature | Supports -40°C to 55°C (-40°F to 131°F) for a broad range of environmental conditions. |
| Humidity | Operates at 10–85% RH (non-condensing), suitable for controlled indoor settings. |
| Dimensions | 90 mm x 62 mm x 23 mm (3 1/2 in x 2 1/2 in x 1 in), compact for easy placement. |
| Weight | 100 g (0.22 lb), lightweight for flexible installation. |
| Audio Encoding Options | Supports LPCM, AAC-LC, G.711 PCM, providing high-quality audio streaming. |
| PoE Standards | Compliant with IEEE 802.3af and 802.3at for efficient power delivery. |
| Environmental Compliance | Designed to meet EMC, safety, and environmental certifications, including EN 55032 and IEC/EN/UL 62368-1. |
| Installation Compatibility | Can be mounted within the AXIS T94S01P Conduit Back Box for secure and organized setup. |
| Portcast Integration | Enables seamless audio and video streaming through Portcast technology, reducing network complexity. |
| Cable Management | Offers flexible connectivity through standard RJ45, 3.5 mm, and terminal block connectors. |
Properties
| Product Name | Axis T6101 Audio and I/O Interface |
| Description | Compact interface adding audio and I/O capabilities to Axis cameras without built-in audio or I/O functionality, enhancing system versatility. |
| Two-Way Audio | Supports two-way audio communication, expanding surveillance functionality with real-time communication. |
| Configurable I/O Ports | Features two configurable supervised inputs/digital outputs for triggering actions and event management. |
| Portcast Technology | Uses the camera’s IP address to deliver audio and video in a single stream, simplifying network management. |
| Power over Ethernet (PoE) | Provides power and data over a single cable, simplifying installation. |
| Installation Flexibility | Compatible with the AXIS T94S01P Conduit Back Box for versatile mounting options. |
| Recommended Use | Ideal for adding audio and I/O capabilities to Axis cameras in systems needing two-way communication. |
| Audio Codecs | Supports various audio encodings including LPCM, AAC-LC, G.711 PCM for high-quality sound. |
| Power Supply | Powered via PoE IEEE 802.3af/802.3at Type 1 Class 2 or 3, eliminating the need for additional power cables. |
| Connectivity Options | PoE in and out via RJ45, audio in/out via 3.5 mm connectors, I/O via 4-pin 2.5 mm terminal block. |
| Temperature Range | Operates reliably in temperatures from -40°C to 55°C (-40°F to 131°F). |
| Humidity Range | Designed for 10–85% RH (non-condensing), suitable for varied indoor environments. |
| Compliance Standards | Meets EMC, safety, and environmental standards, including EN 55032 and IEC/EN/UL 62368-1. |
| Compact Design | Small footprint (90 mm x 62 mm x 23 mm), making it easy to integrate into existing setups. |
| PoE Efficiency | Supports PoE power efficiency, providing seamless integration with existing network infrastructure. |
