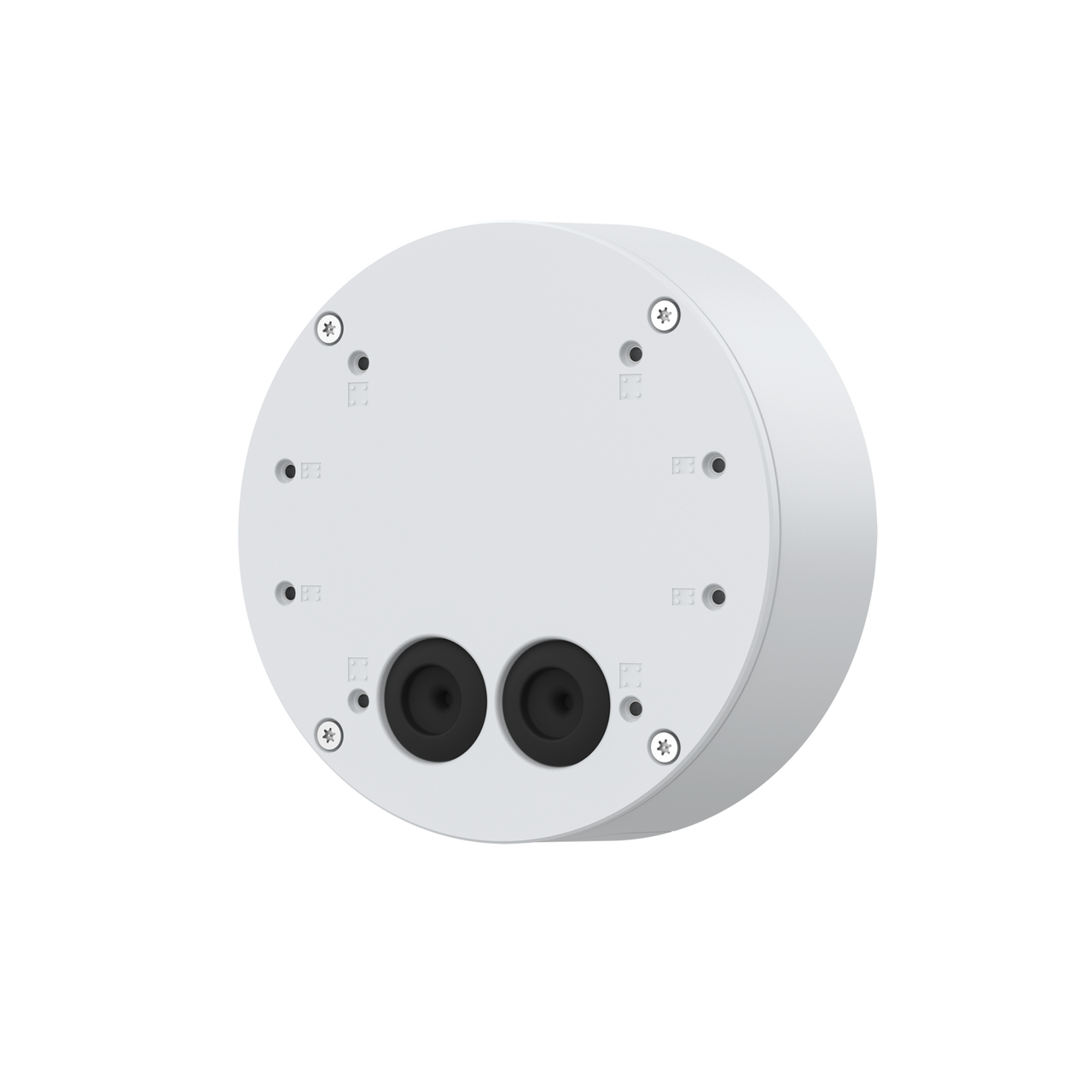

AXIS TQ1602-E Conduit Back Box (02421-001)

The AXIS TQ1602-E Conduit Back Box is a durable, outdoor-ready back box designed to enhance the installation and security of AXIS bullet cameras. With an IP66/IP67-rated compartment, it provides a safe storage area for connectivity devices such as IP-over-COAX adapters or network cable couplers. Its IK10+ impact-resistant design ensures protection against vandalism, making it an ideal choice for demanding environments. Featuring multiple conduit interfaces, it enables flexible cable routing and seamless integration with various AXIS mounting accessories.

Key Features:

• Secure Storage Compartment: IP66/IP67-rated compartment for connectivity devices.
• Impact-Resistant Design: IK10+ rating protects against vandalism.
• Flexible Cable Routing: ¾" conduit entrances on the sides and three cable holes at the back with M20 gaskets.
• Compatible with AXIS Cameras: Designed for AXIS P14, Q17, and Q19 Series bullet and thermal cameras.
• Multiple Mounting Options: Supports double gang, single gang, octagon, and square junction boxes.
• Weatherproof Construction: Built from powder-coated aluminum with stainless steel screws.

Technical Specifications:

• Material: Powder-coated aluminum with stainless steel screws
• Color: White (NCS S 1002-B)
• Maximum Load: 2.3 kg (5 lb)
• Ingress Protection: IP66/IP67
• Impact Resistance: IK10+
• Cable Routing: 3 cable holes (back), ¾" conduit entrances (sides), multiple gaskets (underside and top cover)
• Mounting Compatibility: Double gang, single gang, 4” octagon, and 4” square junction boxes
• Dimensions: 157 mm (6 3/16 in) diameter, 53.5 mm (2 1/8 in) height
• Weight: 750 g (1.65 lb)
