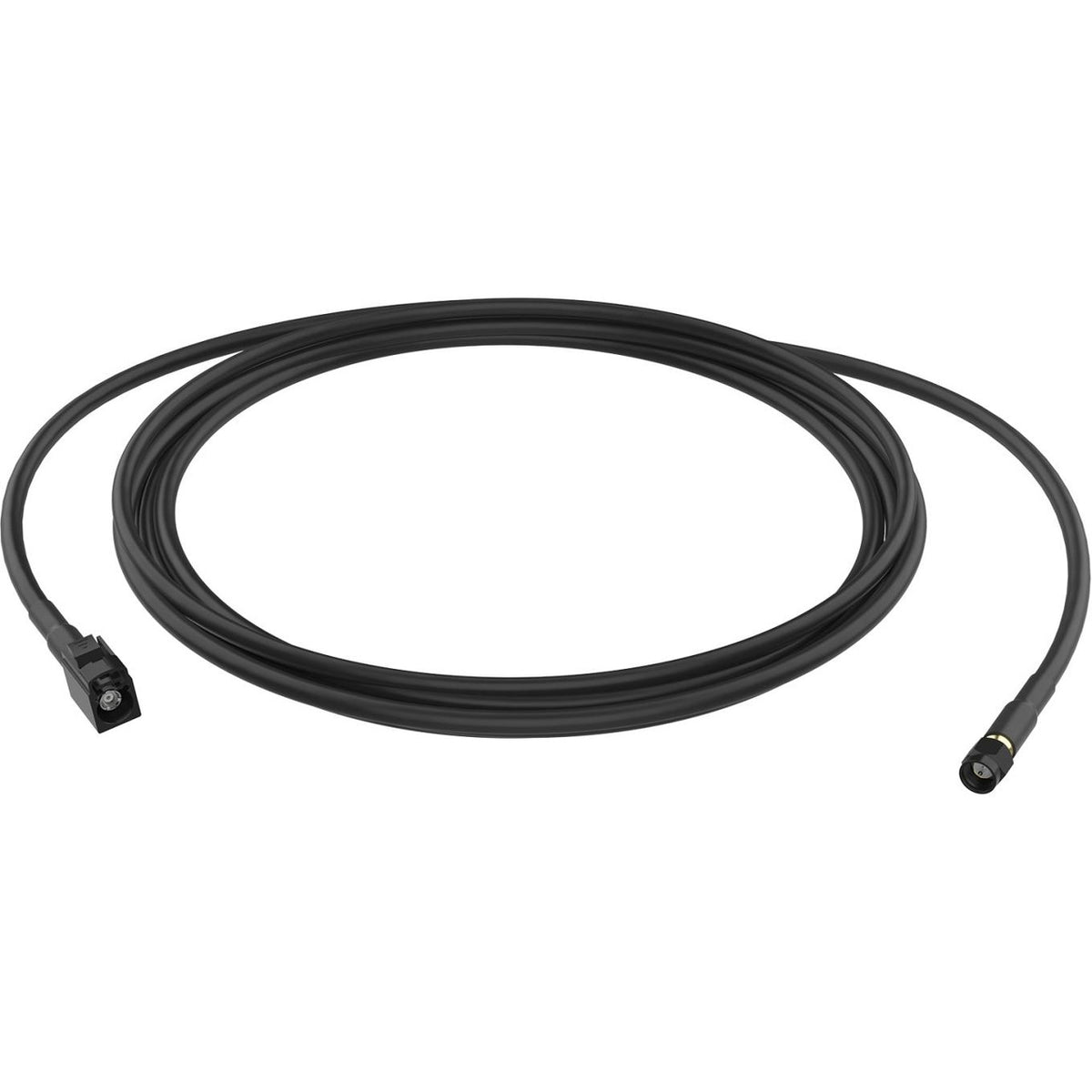

AXIS TU6005 20 Meter Plenum Cable (02267-001)

The AXIS TU6005 20 Meter Plenum Cable is a high-performance, plenum-rated cable designed for secure and efficient data transmission in indoor surveillance installations. Engineered with a 32 mm (1.3 in) bending radius, this cable ensures flexibility while maintaining high bandwidth capacity to minimize latency between AXIS sensor units and main units. Its SMA-FAKRA connectors provide a secure connection, making it compatible with a range of AXIS F Series products.

Key Features:

• 20 Meter Length: Designed for extended connectivity in plenum-rated installations.
• Plenum-Rated: Suitable for safe installation in air-handling spaces.
• High-Speed Data Transmission: Supports signals up to 3 GHz.
• Secure Connectors: Equipped with rugged SMA and FAKRA connectors.
• Flexible Installation: 32 mm (1.3 in) bending radius for easy routing.
• Compatible with AXIS Devices: Works with AXIS F91 main units, F21 sensor units, F4105-LRE Dome Sensor, and F7225-RE Pinhole Sensor.

Technical Specifications:

• Length: 20 meters (65 ft)
• Diameter: 4 ±0.15 mm (0.16 in)
• Bending Radius: 32 mm (1.3 in)
• Impedance: 50 Ohms
• Frequency Range: 0–3 GHz
• Connectors: SMA and FAKRA
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Weight: 640 g (1.41 lb)
• Compliance: UL CMP E329281
