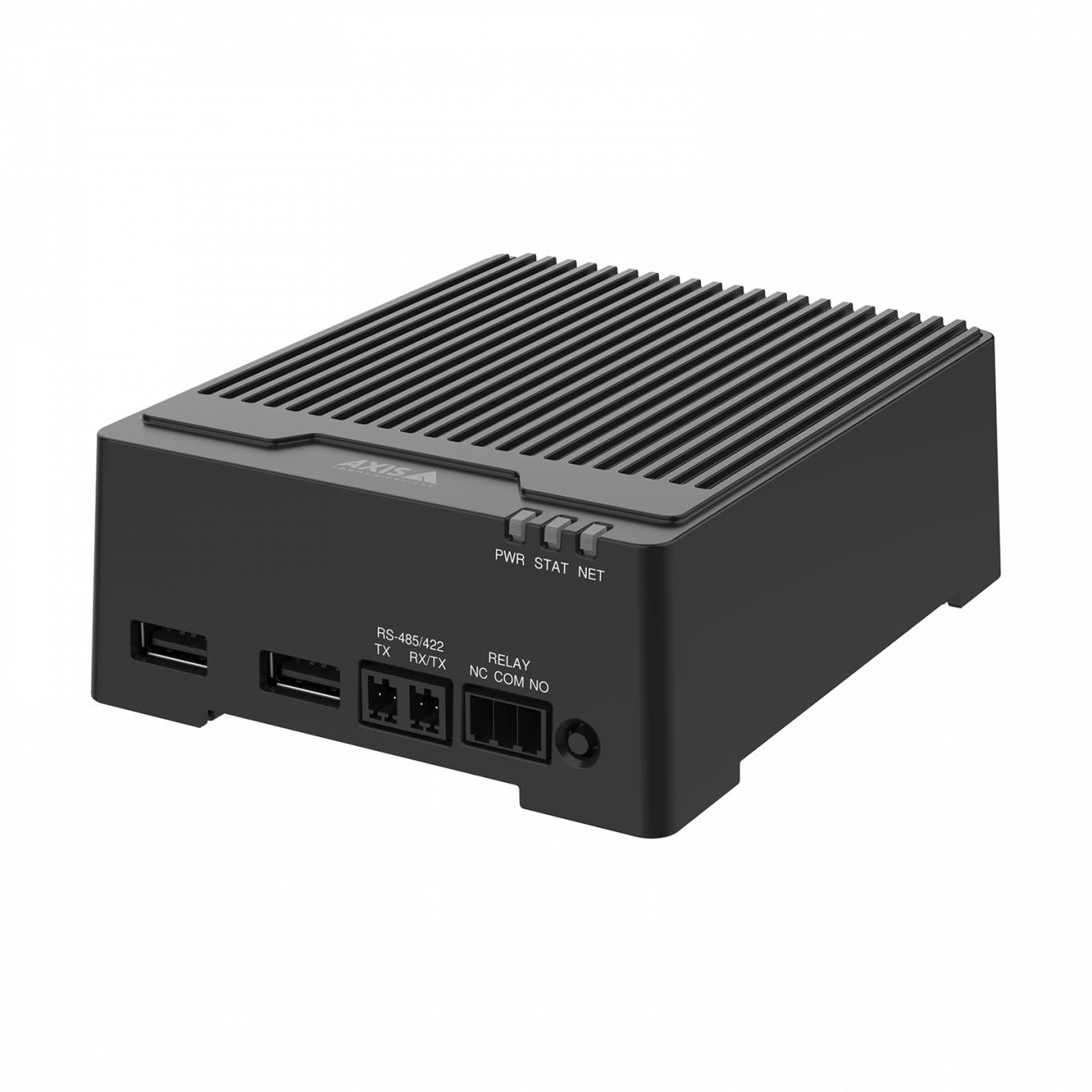

AXIS D3110 Connectivity Hub

The AXIS D3110 Connectivity Hub enhances network video systems by providing secure sensor and audio integration. This versatile hub connects non-visual sensors to trigger alarms and events, while also supporting high-quality audio through microphones and speakers. Designed for integration with Axis end-to-end solutions, it supports multiple protocols such as VAPIX®, MQTT, and SIP for seamless communication. With built-in cybersecurity features, the AXIS D3110 ensures secure and reliable integration in surveillance systems, making it ideal for various applications where additional sensor and audio capabilities are needed.

Key Features:

• Secure Sensor and Audio Integration: Adds sensor and audio capabilities to existing network video systems, enabling efficient alarm triggering and audio communication.
• Multiple I/O Ports: Features eight supervised configurable I/Os for connecting sensors and controlling devices.
• High-Quality Audio Support: Includes two audio-in ports and one audio-out port for microphone and speaker connections, with support for two-way, full-duplex audio.
• Seamless Integration: Supports VAPIX®, MQTT, and SIP protocols for integration with Axis and third-party systems.
• Built-In Cybersecurity: Includes features such as signed firmware, secure boot, and Axis Edge Vault to protect against unauthorized access and ensure system integrity.

Technical Specifications:

• System on Chip (SoC): i.MX 6ULL
• Memory: 512 MB RAM, 512 MB Flash
• Audio Encoding: LPCM, AAC-LC, G.711, G.726, Opus
• Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at or 10–28 V DC, max power consumption 13.5 W
• Operating Conditions: -40 °C to 65 °C (-40 °F to 149 °F)
• Dimensions: Height: 42.2 mm (1.7 in), Width: 99 mm (3.9 in), Depth: 117.8 mm (4.6 in)
• Weight: 392 g (0.9 lb)

For more information about the AXIS D3110 Connectivity Hub, visit the Axis product page.

This product has been discontinued.
