AXIS P3727-PLE PANORAMIC CAMERA

Accessories

Optional accessories

• AXIS T94N01D Pendant Kit • AXIS T94N01L Recessed Mount* • AXIS TP3814-E Black Casing • AXIS TP3815-E Smoked Dome • AXIS cabinets • AXIS Surveillance Cards *: The camera’stampering alarm doesn’tworkwhen mounted in AXIS T94N01L Recessed Mount

Specifications

Specifications	AXIS P3818-PVE Panoramic Camera
Camera
Image sensor	4 x 1/2.8” progressive scan RGB CMOS
Lens	Varifocal, 3–6 mm, F1.8–2.6
	4x1080p capture mode:
	Horizontal field of view: 96°–49°
	Vertical field of view: 53°–27°
	Diagonal field of view: 113°–55°
	Fixed iris, IR corrected, remote zoom and focus
Day and night	Automatically removable infrared-cut filter
Minimum illumination	With Forensic WDR and Lightfinder:
	Color: 0.17 lux at 50 IRE, F1.8
	B/W: 0 lux at 50 IRE, F1.8
Shutter speed	1/32500 s to 2 s with 50 Hz
	1/32500 s to 2 s with 60 Hz
Camera angle adjustment	Pan ±90°,
	tilt +25 to +95°,
	rotation –5 to +95°,
	twist ±20°
System on chip (SoC)
Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Compute capabilities	Machine learning processing unit (MLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	4 x 1920x1080 (4 x HDTV 1080p) to 640x360
Frame rate	Up to 25/30 fps (50/60 Hz)
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
Image settings	Saturation, contrast, brightness, sharpness, Forensic WDR, white
	balance, day/night threshold, tone mapping, exposure mode,
	exposure zones, compression, rotation: 0°, 90°, 180°, 270°
	including Corridor Format, mirroring, dynamic text and image
	overlay, polygon privacy masks
Audio
Audio output/output	Two-way audio connectivity via optional AXIS T61 Audio and I/O
	Interfaces with portcast technology.
	A 30 W midspan or higher is required between AXIS T61 Audio
	and I/O Interfaces and AXIS P3727-PLE.
Network
IP address	One IP address for all channels
Security	Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified)
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Supported protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-click cloud connection
	ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T
Onscreen controls	IR illumination
	Autofocus
	Privacy mask
Event conditions	Audio: audio clip playing
	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, casing
	open, IP address removed, network lost, new IP address,storage
	failure, system ready, within operating temperature
	Edge storage: recording ongoing, storage disruption, storage
	health issues detected
	I/O: manual trigger, virtual input
	MQTT subscribe
	Scheduled and recurring: scheduled event
	Video: average bitrate degradation, day-night mode, live stream
	open, tampering
Event actions	Record video: SD card and network share
	MQTT publish
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
	share, and email
	Notification: email, HTTP, HTTPS, TCP, and SNMP trap
	Overlay text, play audio clip, day/night mode, status LED, IR
	illumination, MQTT
Data streaming	Event data
Built-in installation aids	Pixel counter, remote focus, remote zoom
Analytics
AXIS Object Analytics	Object classes: humans, vehicles
	Trigger conditions: line crossing, object in area, time in areaBETA
	Up to 10 scenarios
	Metadata visualized with trajectories and color-coded bounding
	boxes
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Applications	Included
	AXIS Object Analytics, AXIS Video Motion Detection,
	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard,
	active tampering alarm
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
General
Casing	IP66-, IP67-, NEMA 4X- and IK09-rated impact-resistant,
	aluminum and plastic casing with polycarbonate hard-coated dome
	Color: white NCS S 1002-B
	Dome intrusion switch
	For repainting instructions of skin cover or casing and impact on
	warranty, contact your Axis partner.
Mounting	Mounting bracket with junction box holes (double-gang,
	single-gang, 4” square, and 4” octagon)
	½” (M20) conduit side entry
Sustainability	PVC free
Power	Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
	IR illumination on* : Class 4, typical 12.5 W, max 21.7 W
	IR illumination off* : Class 3, typical 6.4 W, Class 4, max 15.0 W
	*: Typical power consumption at ambient temperature 20°C (68°F) and maximum power consumption at -30°C (-22°F)
Connectors	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
	Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces
	with portcast technology
IR illumination	Four individually controllable IR with power-efficient, long-life
	850 nm IR LEDs
	Range of reach 15 m (50 ft) or more depending on the scene
Storage	Support for microSD/microSDHC/microSDXC card
	Dual SD cards
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	(-30 °C to 50°C) (-22 °F to 122 °F)
	Humidity 10–100% RH (condensing)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
Approvals	EMC
	EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1,
	EN 61000-6-2, FCC Part 15 Subpart B Class A,
	ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35,
	RCM AS/NZS CISPR 32 Class A, VCCI Class A
	Safety
	CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1,
	IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252
	Environment
	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
	IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67,
	IEC/EN 62262 IK09, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
	Network
	NIST SP500-267
Dimensions	Height: 92 mm (3.6 in)
	ø 255 mm (10.0 in)
Weight	2.0 kg (4.4 lb)
Included accessories	Installation guide, Windows® decoder 1-user license, connector
	guard, screw bit T20
Video management software	AXIS Companion, AXIS Camera Station, video management
	software from Axis Application Development Partners available
	at axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese

Properties

Properties	AXIS P3727-PLE Panoramic Camera

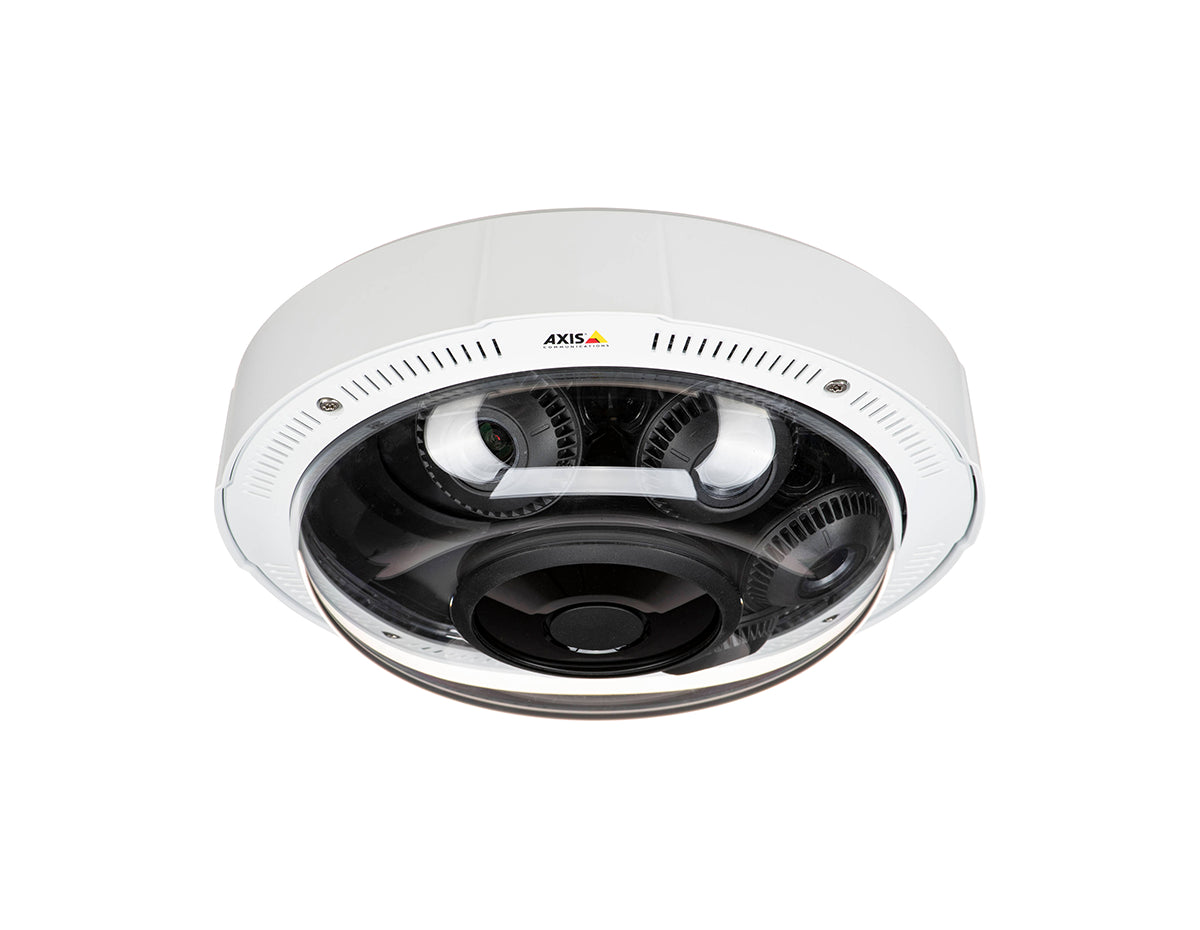

Description	The AXIS P3727-PLE Panoramic Camera is a multidirectional camera featuring four channels, each with 2MP resolution at 30 fps. With flexible positioning of four varifocal camera heads, it captures scenes in wide-angle or zoomed-in views in four directions. The camera includes 360° IR illumination with controllable LEDs, automatic IR cut filter, and remote zoom/focus capabilities for quick and precise installation. AXIS Edge Vault enhances security, while AXIS Object Analytics provides nuanced object classification and reliable detection on one channel, reducing false positives. Edge storage is supported with two microSD card slots.
Product Family	AXIS P3727-PLE Panoramic Camera
Product Type	Camera
