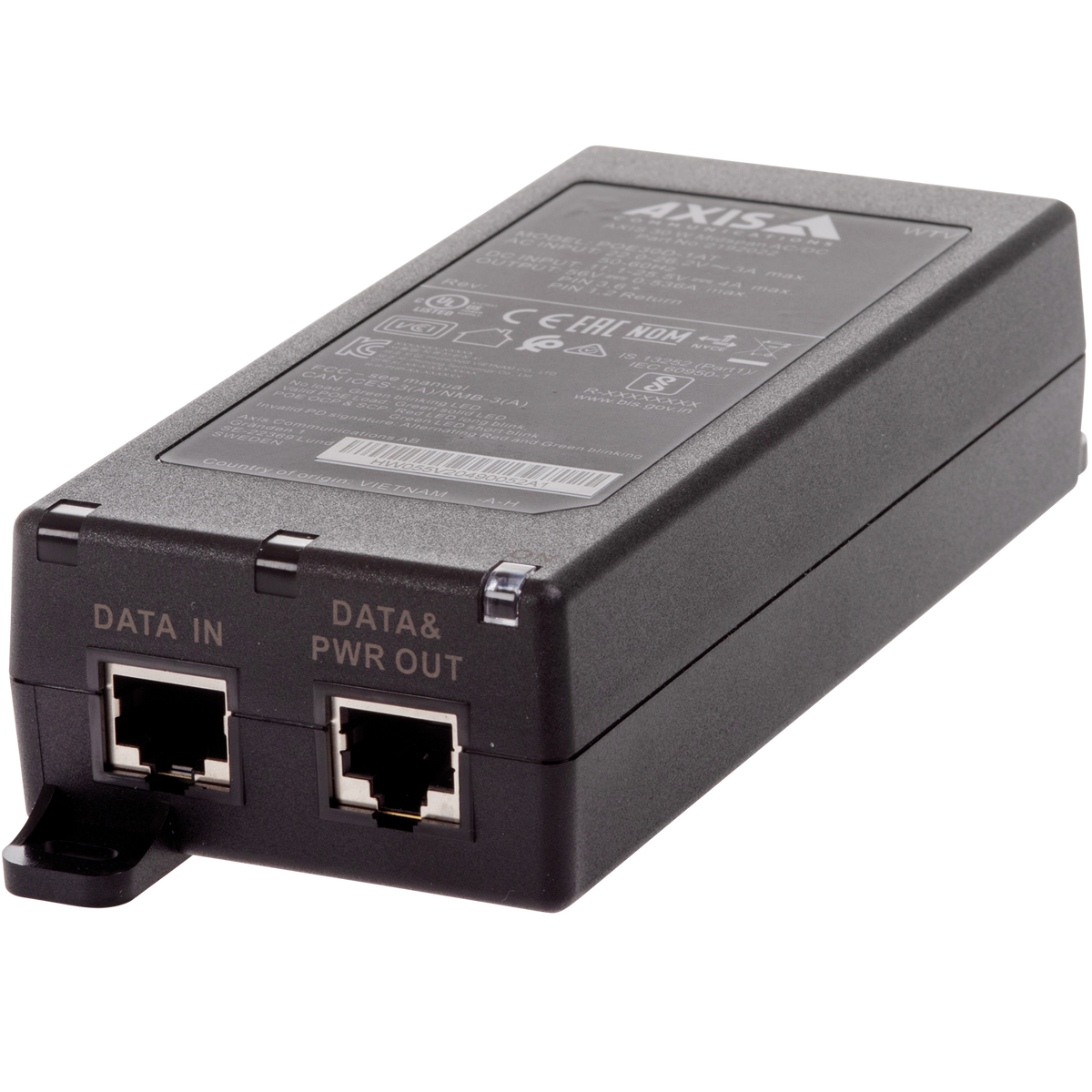

Axis 30W Single Port AC/DC Midspan (02208-001)

Name: Axis 30W Single Port AC/DC Midspan (02208-001)
Brand: Axis
SKU: 02208-001-NEW
Price: 124.95 USD
Availability: InStock

Part Number: 02208-001

Technical Details

Supports 24 V AC and 10-28 V DC inputs, Delivers up to 30 W of power, 10/100/1000 Mbps data rate.

$124.95

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

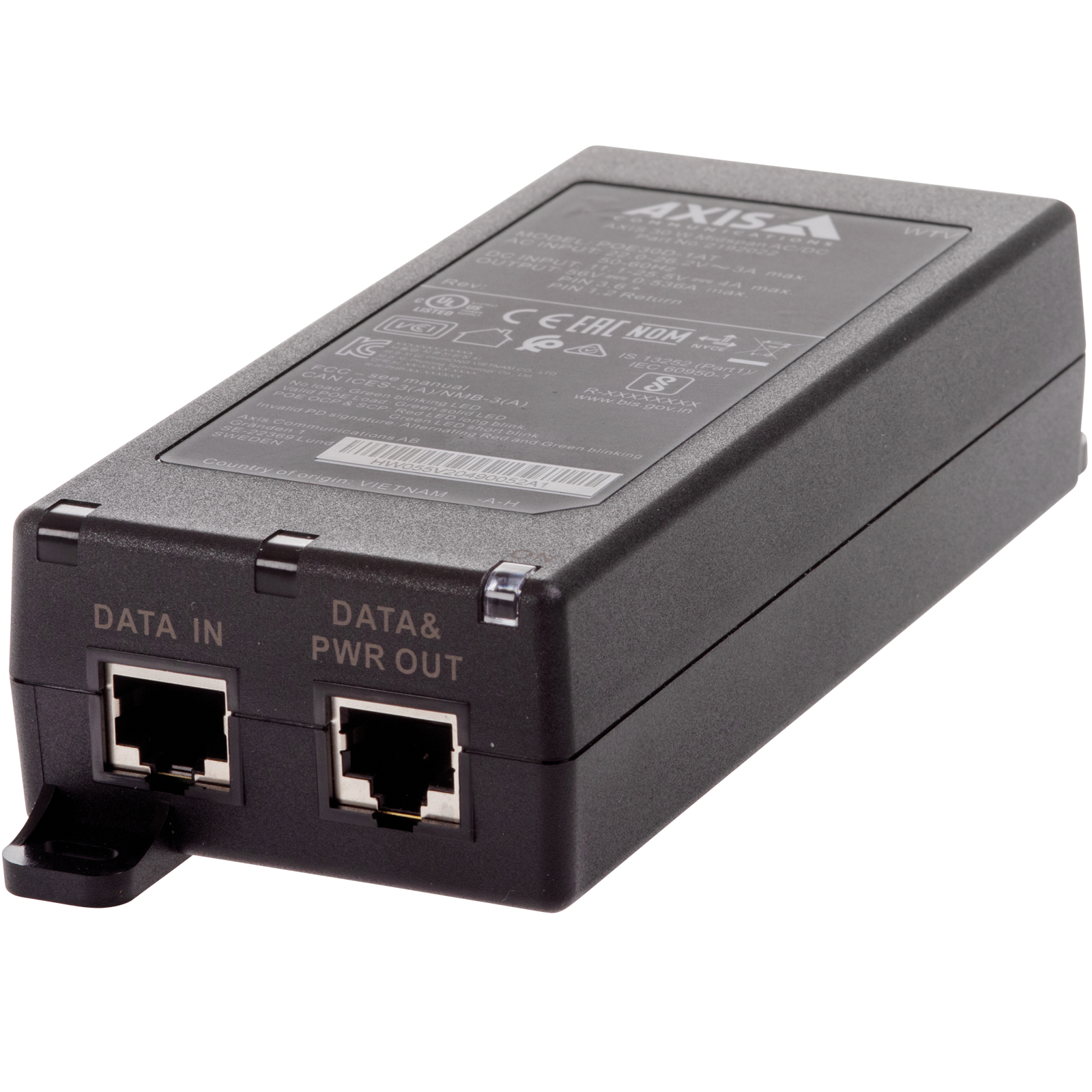

Axis 30 W Midspan AC/DC

The Axis 30 W Midspan AC/DC is a versatile power solution for network devices where mains power is not an option. It offers flexible power input options of 10-28 V DC or 24 V AC, making it ideal for installations in challenging environments. Whether you need to retrofit box, dome, or PTZ cameras, or require a solution for solar-powered or battery-backed setups, this midspan delivers up to 30 W of power according to IEEE 802.3at standards. Its plug-and-play design ensures easy and flexible installation, and it is compatible with all Axis PoE devices.

Key Features:

Flexible Power Input: Supports 24 V AC and 10-28 V DC inputs, providing adaptability for various installation scenarios.
High Power Output: Delivers up to 30 W of power, compatible with IEEE 802.3af and 802.3at standards.
Wide Compatibility: Works seamlessly with Axis PoE devices, making it suitable for a range of network video products.
Easy Installation: Plug-and-play design with automatic PoE detection and local LED indicators for easy management.
Durable Design: Operates in a wide temperature range and is built to withstand harsh environmental conditions.

Technical Overview:

Recommended for: Network installations where mains power is unavailable, including solar-powered setups and retrofit projects.
Power Input: 10-28 V DC or 24 V AC.
Power Output: 56 V DC, up to 30 W according to IEEE 802.3at standards.
Data Rate: 10/100/1000 Mbps.
Operating Conditions: -20 °C to 70 °C (-4 °F to 158 °F) at 15 W; -20 °C to 50 °C (-4 °F to 122 °F) at 30 W.
Dimensions: 164 x 65 x 37 mm (6.46 x 2.56 x 1.46 in).
Weight: 233 g (0.51 lb).
Mounting Options: Wall, shelf, or DIN rail.
Included Accessories: Installation guide.

You can check the related tab for the Axis 30 W Midspan AC/DC datasheet.

Properties

Product Name	Axis 30 W Midspan AC/DC
Description	Versatile midspan designed for network installations without mains power, offering AC/DC power options with support for Axis PoE devices.
Flexible Power Input	Accepts 10-28 V DC or 24 V AC, adaptable to various installation needs, including solar-powered and battery-backed setups.
High Power Output	Provides up to 30 W power output in compliance with IEEE 802.3af and IEEE 802.3at standards.
Wide Compatibility	Works with all Axis PoE devices, suitable for a range of network video products.
Easy Installation	Plug-and-play with automatic PoE detection and LED indicators for simple management.
Temperature Resilience	Operates in temperatures from -20 °C to 70 °C at 15 W, and up to 50 °C at full 30 W power output.
Recommended Use	Ideal for off-grid installations, retrofits, and challenging environments where mains power is unavailable.
Data Rate	Supports 10/100/1000 Mbps, ensuring reliable and high-speed data connectivity.
Durability	Engineered to withstand harsh environmental conditions for reliable performance.
Power Output	Delivers 56 V DC, up to 30 W, compatible with high-power PoE devices.
Environmental Safety	Tested for environmental resilience in demanding conditions, ensuring durability and performance.
Mounting Flexibility	Can be wall-mounted, shelf-mounted, or DIN rail-mounted for versatile installation options.
LED Indicators	Local LEDs indicate power and connectivity status for easy monitoring.
Construction Quality	Robust construction designed for demanding installation environments.
Power Management	Ensures stable power distribution to connected devices, with compatibility for various installation setups.

Specifications

Power Input	10-28 V DC or 24 V AC, adaptable for non-mains installations.
Power Output	56 V DC, providing up to 30 W in compliance with IEEE 802.3at (Type 2).
Data Rate	10/100/1000 Mbps, providing stable and high-speed network connectivity.
Operating Temperature	Supports -20 °C to 70 °C (-4 °F to 158 °F) at 15 W, and up to 50 °C (122 °F) at 30 W.
Dimensions	164 x 65 x 37 mm (6.46 x 2.56 x 1.46 in), compact for easy integration.
Weight	233 g (0.51 lb), lightweight for flexible mounting.
Environmental Protection	Designed for reliable operation in extreme conditions, suitable for rugged installations.
PoE Standards	Compatible with IEEE 802.3af and IEEE 802.3at, supporting diverse device needs.
Mounting Options	Supports wall, shelf, and DIN rail mounting configurations.
LED Indicators	Provides local LED indicators for power and connectivity status, aiding in device management.
Device Compatibility	Works with Axis PoE-enabled devices, ensuring broad compatibility across the Axis product line.
Installation Ease	Plug-and-play design with automatic detection, simplifying setup.
Heat Management	Designed for effective operation within a wide temperature range to maintain device longevity.
Power Flexibility	Adaptable power input options for challenging installation environments, enhancing versatility.
