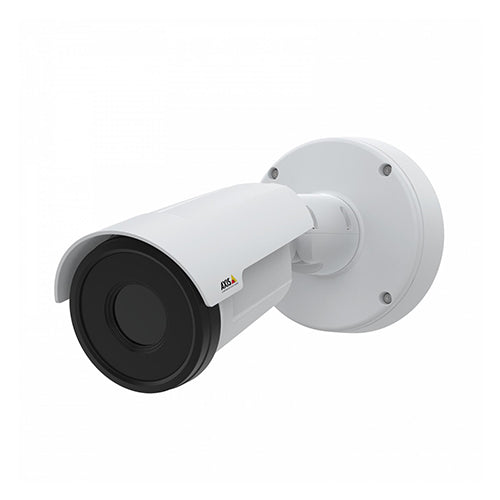

AXIS Q1952-E 35 MM 30 FPS PT MOUNT THERMAL NETWORK CAMERA

Accessories



Optional accessories

• AXIS T94F01M J-Box/Gang Box Plate • AXIS T91A47 Pole Mount • AXIS T94P01B Corner Bracket • AXIS T94F01P Conduit Back Box • AXIS Weather Shield K • AXIS PoE Midspans



Specifications

Specifications	AXIS Q1951-E 35mm 30 fps Thermal Camera
Camera
Image sensor	Uncooled microbolometer 384x288 pixels, pixel size: 17 μm.
	Spectral range: 8-14 μm
Lens	Athermalized
	35 mm
	Horizontal field of view: 10.5°, F1.14
	Near focus distance: 33 m (108 ft)
Sensitivity	NETD 40 mK @25C, F1.0
System on chip (SoC)
Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	Sensor is 384x288. Image can be scaled up to 768x576
Frame rate	Up to 30 fps
Video streaming	Multiple, individually configurable streams in H.264, H.265, and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Video streaming indicator
Image settings	Contrast, brightness, sharpness, exposure zones, compression,
	rotation: auto, 0°, 90°, 180°, 270° including Corridor Format,
	mirroring, dynamic text and image overlay, polygon privacy mask,
	electronic image stabilization
Audio
Audio streaming	One-way, two-way audio via edge-to-edge technology
Audio encoding	24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726
	ADPCM 8 kHz, Opus 8/16/48 kHz
	Configurable bit rate
Audio input/output	External microphone input or line input, simplex, two-way audio
	via edge-to-edge technology, ring power, automatic gain control
Network
Security	Password protection, IP address filtering, HTTPS (*) encryption, IEEE 802.1x (EAP-TLS)(*) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified)
	(*:This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit, and cryptographic software written by Eric Young)
Supported protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS(*) , HTTP/2, TLS(*) , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
	(*:This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit, and cryptographic software written by Eric Young)
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-click cloud connection
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
	ONVIF® Profile T
Onscreen controls	Heater, electronic image stabilization
Event conditions	Analytics, operating temperature, supervised external input, edge
	storage events, digital audio, virtual inputs through API
Event actions	Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email
	Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap Overlay text, play audio clip, I/O, MQTT
Data streaming	Event data
Built-in installation aids	Pixel counter
Analytics
Applications	Included
	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard
	AXIS Video Motion Detection, active tampering alarm, audio
	detection
	Supported
	AXIS Perimeter Defender with AI-based functionality
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications.
General
Casing	IP66/IP67-, NEMA 4X-, and IK10-rated (Excluding front window) casing Polycarbonate blend and aluminum Color: white NCS S 1002-B
Sustainability	PVC free, BFR/CFR free
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
	Typical 4.96 W, max 12.95 W
	12–28 V DC, typical 4.92 W, max 12.95 W
Connectors	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T
	3.5 mm mic/line in
	Terminal block for 1 supervised alarm input and 1 output (12 V
	DC output, max. load 25 mA)
	DC input, terminal block
Storage	Support for microSD/microSDHC/microSDXC card
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	(-40 °C to 60 °C) (-40 °F to 140 °F)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
	Humidity 10–100% RH (condensing)
	De-icing capability, compliant to MIL-STD-810H Method 521.4
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
	Humidity 5-95% RH (non-condensing)
Approvals	EMC
	CISPR 24, CISPR 35, EN 50121-4, EN 55024,
	EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
	FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
	KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A,
	VCCI Class A
	Safety
	IEC/EN/UL 60950-22, IEC/EN/UL 62368–1
	Environment
	IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2,
	IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78,
	IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b
	, ISO 21207 Method
	B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6,
	509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X,
	NEMA TS 2 (2.2.7–2.2.9)
	Network
	NIST SP500-267
Dimensions	Ø132 x 272 mm (Ø5.2 x 10.7 in)
Weight	1400 g (3.1 lb)
Included accessories	Installation guide, Windows®
	decoder 1-user license, Resistorx®
	L-key, wall and ceiling mount bracket, terminal block connectors,
	connector guard
Video management software	AXIS Companion, AXIS Camera Station, video management
	software from Axis Application Development Partners available
	at axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese

Properties

Properties	AXIS Q1952-E 35 mm 30 fps PT Mount Thermal Network Camera
Description	The AXIS Q1952-E Thermal Camera offers high-resolution thermal imaging for 24/7 reliable detection in perimeter security. Packed with cybersecurity features, including Axis Edge Vault and a FIPS 140-2 level 2 certified TPM, it ensures unauthorized access prevention. The camera supports AI-based analytics, has a compact, robust, halogen-free design, and boasts a VGA resolution of 640x480 for detailed thermal visuals. Ideal for harsh conditions, it provides a powerful solution for advanced surveillance needs.
Product Family	AXIS Q1952-E Thermal Camera Series
Product Type	Thermal Camera
