AXIS Q1951-E 35MM 30 FPS THERMAL CAMERA
| Model: | 02156-001 |
| Detail: |
|
| List Price: | |
| Price: | $3,730.00 |
| You Save: | $369.00 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

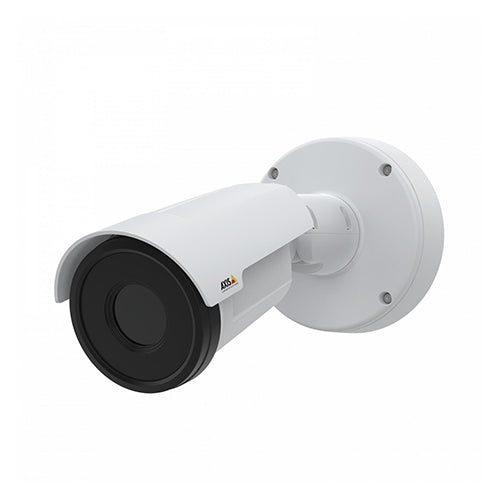

AXIS Q1951-E 35mm 30 fps Thermal Camera (02156-001)
The AXIS Q1951-E camera provides a dependable thermal video feed suitable for continuous detection purposes. Specifically designed for perimeter security applications, this camera incorporates advanced surveillance features such as AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard to enhance proactive monitoring capabilities. Additionally, it offers seamless integration with third-party analytics tools through a robust analytics platform. The camera is equipped with built-in cybersecurity measures to prevent unauthorized access and ensure system security. Moreover, the inclusion of a Trusted Platform Module (TPM) certified at FIPS 140-2 level 2 adds an extra layer of security.
Quick Specs:
- Reliable detection 24/7
- Electronic image stabilization
- Support for AI-based analytics
- Compact, robust and halogen-free design
Please see the related tabs for the 02156-001 datasheet and compatible accessories.
| Feature | AXIS Q1941-E | AXIS Q1941-E PT Mount | AXIS Q1942-E | AXIS Q1942-E PT Mount | AXIS Q1951-E | AXIS Q1952-E | AXIS Q1961-TE | AXIS Q1971-E |
|---|---|---|---|---|---|---|---|---|
| Image sensor size | 384x288 | 384x288 | 640x480 | 640x480 | 384x288 | 640x480 | 384x288 | 384x288 |
| Two-way audio | ✔ | - | ✔ | - | - | - | - | - |
| Alarm inputs/outputs | 2 | 2 | 2 | 2 | 1/1 | 1/1 | 1/1 | 1/1 |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Accessories
| Optional accessories | • AXIS T94F01M J-Box/Gang Box Plate • AXIS T91A47 Pole Mount, AXIS T94P01B Corner Bracket • AXIS T94F01P Conduit Back Box, AXIS Weather Shield K • AXIS PoE Midspans |
Specifications
| Specifications | AXIS Q1951-E 35mm 30 fps Thermal Camera |
| Camera | |
| Image sensor | Uncooled microbolometer 384x288 pixels, pixel size: 17 μm. |
| Spectral range: 8-14 μm | |
| Lens | Athermalized |
| 35 mm | |
| Horizontal field of view: 10.5°, F1.14 | |
| Near focus distance: 33 m (108 ft) | |
| Sensitivity | NETD 40 mK @25C, F1.0 |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | Sensor is 384x288. Image can be scaled up to 768x576 |
| Frame rate | Up to 30 fps |
| Video streaming | Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Video streaming indicator | |
| Image settings | Contrast, brightness, sharpness, exposure zones, compression, |
| rotation: auto, 0°, 90°, 180°, 270° including Corridor Format, | |
| mirroring, dynamic text and image overlay, polygon privacy mask, | |
| electronic image stabilization | |
| Audio | |
| Audio streaming | One-way, two-way audio via edge-to-edge technology |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input/output | External microphone input or line input, simplex, two-way audio |
| via edge-to-edge technology, ring power, automatic gain control | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS (*) encryption, IEEE 802.1x (EAP-TLS)(*) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified) |
| (*:This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit, and cryptographic software written by Eric Young) | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS(*) , HTTP/2, TLS(*) , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| (*:This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit, and cryptographic software written by Eric Young) | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T | |
| Onscreen controls | Heater, electronic image stabilization |
| Event conditions | Analytics, operating temperature, supervised external input, edge |
| storage events, digital audio, virtual inputs through API | |
| Event actions | Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email |
| Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap Overlay text, play audio clip, I/O, MQTT | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard | |
| AXIS Video Motion Detection, active tampering alarm, audio | |
| detection | |
| Supported | |
| AXIS Perimeter Defender with AI-based functionality | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications. | |
| General | |
| Casing | IP66/IP67-, NEMA 4X-, and IK10-rated (Excluding front window) casing Polycarbonate blend and aluminum Color: white NCS S 1002-B |
| Sustainability | PVC free, BFR/CFR free |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.96 W, max 12.95 W | |
| 12–28 V DC, typical 4.92 W, max 12.95 W | |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| 3.5 mm mic/line in | |
| Terminal block for 1 supervised alarm input and 1 output (12 V | |
| DC output, max. load 25 mA) | |
| DC input, terminal block | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-40 °C to 60 °C) (-40 °F to 140 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C | |
| (165 °F) | |
| Humidity 10–100% RH (condensing) | |
| De-icing capability, compliant to MIL-STD-810H Method 521.4 | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) | |
| Approvals | EMC |
| CISPR 24, CISPR 35, EN 50121-4, EN 55024, | |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, | |
| KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, | |
| VCCI Class A | |
| Safety | |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368–1 | |
| Environment | |
| IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, | |
| IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, | |
| IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b | |
| , ISO 21207 Method | |
| B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, | |
| 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, | |
| NEMA TS 2 (2.2.7–2.2.9) | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Ø132 x 272 mm (Ø5.2 x 10.7 in) |
| Weight | 1400 g (3.1 lb) |
| Included accessories | Installation guide, Windows® |
| decoder 1-user license, Resistorx® | |
| L-key, wall and ceiling mount bracket, terminal block connectors, | |
| connector guard | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese | |
Properties
| Properties | AXIS Q1951-E 35mm 30 fps Thermal Camera |
| Description | The AXIS Q1951-E Thermal Camera ensures 24/7 reliable detection with optimal image contrast. Designed for perimeter security, it includes proactive surveillance features like AXIS Motion Guard and AXIS Fence Guard. The camera supports third-party analytics, features built-in cybersecurity with Axis Edge Vault, and has a compact, robust, halogen-free design suitable for harsh conditions. Additionally, it offers electronic image stabilization (EIS). |
| Product Family | AXIS Q1951-E Thermal Camera Series |
| Product Type | Thermal Camera |
