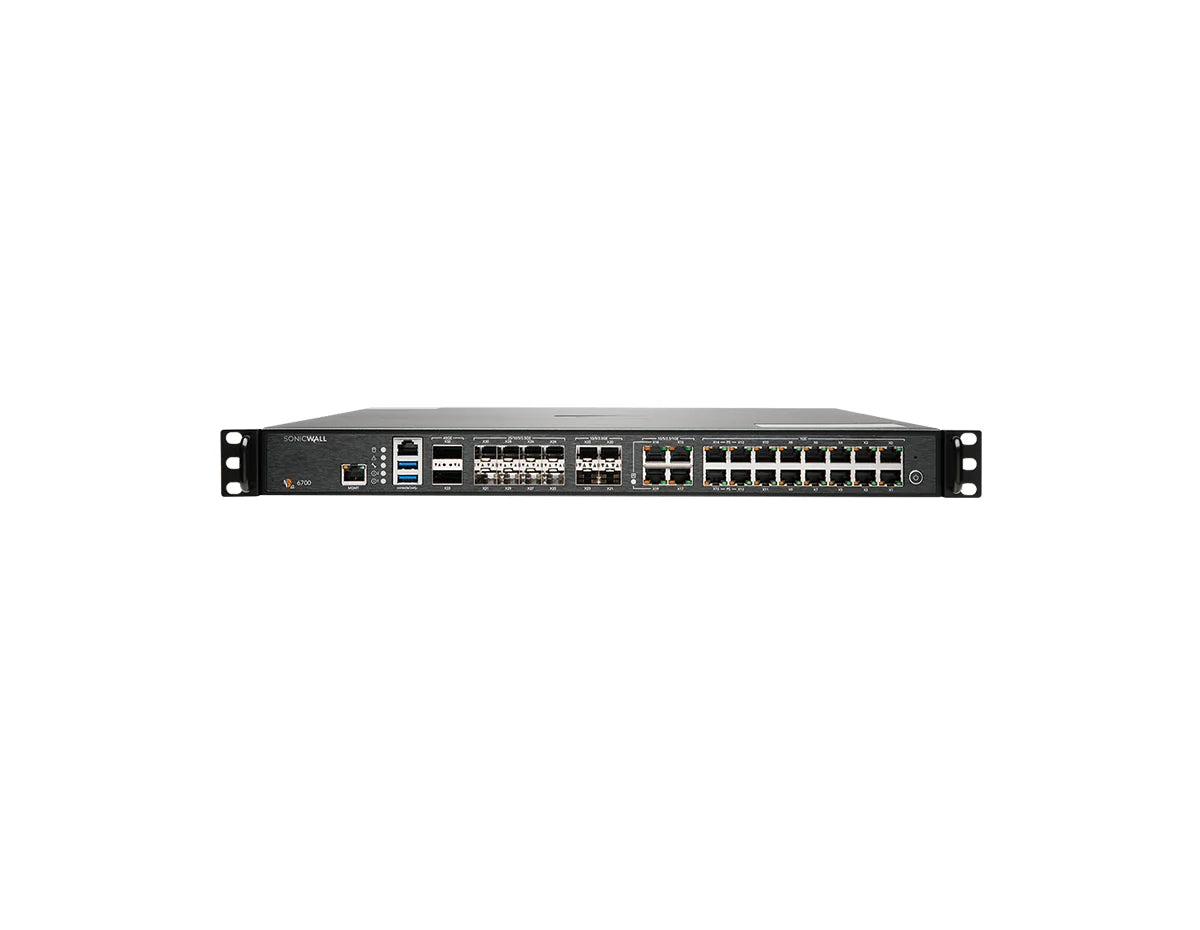

SonicWall NSa 6700 02-SSC-9592 1U Rackmount Firewall, TotalSecure Advanced Edition 1-Year
Overview
The SonicWall Gen 7 NSa Series is a 1U next-generation firewall line for medium- to large-sized enterprises. The 02-SSC-9592 is the NSa 6700 TotalSecure Advanced Edition bundle. It combines the appliance with 1 year (12 months) of the Advanced Protection Security Suite (APSS).
Technical Details
The SonicWall NSa 6700 02-SSC-9592 is a 1U rackmount next-generation firewall running SonicOS 7, with 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25GbE, 2×40GbE QSFP+. Threat Prevention throughput is 19 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (36 Gbps firewall inspection), and it holds up to 8,000,000 concurrent SPI connections. This part number bundles the appliance with TotalSecure Advanced Edition for 1 year (12 months). It is used at a campus or main-office internet edge, in the DMZ and between user and server segments.
Best For
The NSa 6700 suits a campus or main-office internet edge that needs 19 Gbps of Threat Prevention throughput and up to 8,000,000 concurrent SPI connections. It suits buyers who want TotalSecure Advanced Edition for 1 year activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 19 Gbps, the published Threat Prevention throughput
02-SSC-9592 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25GbE, 2×40GbE QSFP+ |
| Max Port Speed | 40 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0 |
| Performance & Scale | |
| Firewall Throughput | 36 Gbps (RFC 2544) |
| Threat Prevention Throughput | 19 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 9 Gbps (DPI SSL) |
| IPsec VPN Throughput | 19 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 8,000,000 (SPI) |
| New Sessions per Second | 228,000 |
| Maximum DPI Connections | 6,000,000 (DPI) |
| Maximum IPsec VPN Tunnels | 6,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 256 GB M.2 (storage expansion slot up to 1 TB) |
| Power & Thermal | |
| Power Supply | 350 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 139.2 W |
| Cooling | 3 removable fans |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.8 × 16.9 × 18.1 in (4.5 × 43 × 46.5 cm) |
| Weight | 17.9 lb (8.1 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) |
| Routing Protocols & IPv6 | BGP4, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall NSa 6700 02-SSC-9592 include a security subscription?
Yes. The 02-SSC-9592 includes 1 year (12 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware support, and SaaS or on-premises Network Security Manager (NSM) management with 7-day alerting, advanced reporting and analytics. When the term ends the services stop receiving updates unless the subscription is renewed.
How much traffic can the SonicWall NSa 6700 02-SSC-9592 handle?
SonicWall publishes no user count, so size the NSa 6700 on its figures. Firewall inspection throughput is 36 Gbps, but Threat Prevention throughput is 19 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 8,000,000 concurrent SPI connections and 6,000,000 DPI connections, and opens 228,000 new connections per second.
What interfaces does the SonicWall NSa 6700 02-SSC-9592 have?
The NSa 6700 provides 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25GbE, 2×40GbE QSFP+. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSa 6700 02-SSC-9592 support high availability?
The NSa 6700 supports Active/Passive high availability with stateful synchronization.
What is the difference between the NSa 6700 and the NSa 5700?
Both run the same SonicOS 7. The NSa 6700 is rated at 36 Gbps firewall inspection throughput, 19 Gbps Threat Prevention throughput and 8,000,000 concurrent SPI connections; the NSa 5700 is rated at 28 Gbps, 15 Gbps and 5,000,000. Check both interface sets in the specification tables.
Does the 02-SSC-9592 include SonicWall support?
Support is included for the bundle term: SonicWall's Gen 7 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.
How is the SonicWall NSa 6700 02-SSC-9592 managed?
The NSa 6700 is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 02-SSC-9592 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-9592 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
