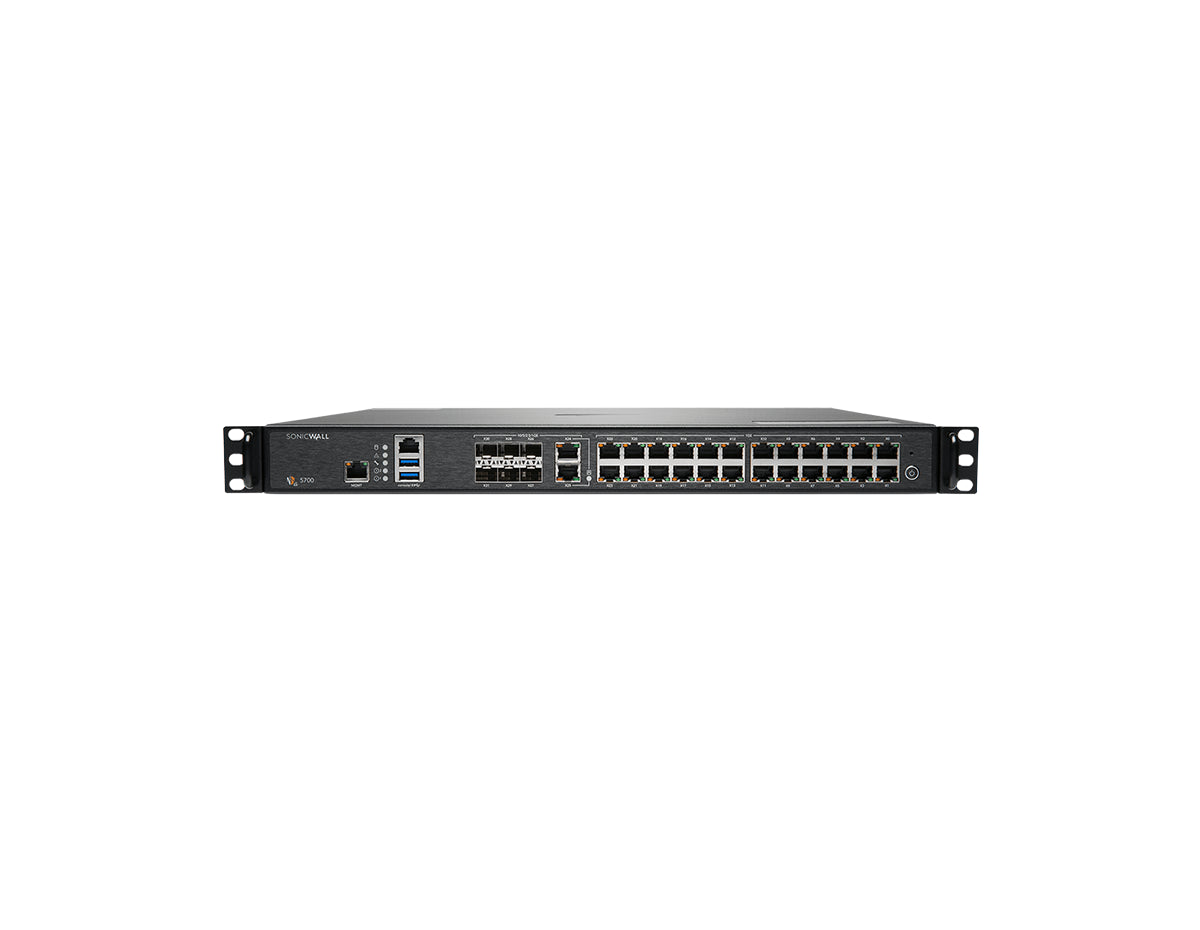

SonicWall NSa 5700 02-SSC-4330 1U Rackmount Firewall, Appliance Only
Overview
The SonicWall Gen 7 NSa Series is a 1U next-generation firewall line for medium- to large-sized enterprises. The 02-SSC-4330 is the NSa 5700 appliance. It is supplied as Appliance Only: the firewall, VPN and routing run on SonicOS 7, while SonicWall support and optional security subscriptions are sold separately.
Technical Details
The SonicWall NSa 5700 02-SSC-4330 is a 1U rackmount next-generation firewall running SonicOS 7, with 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45. Threat Prevention throughput is 15 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (28 Gbps firewall inspection), and it holds up to 5,000,000 concurrent SPI connections. This part number is Appliance Only: SonicWall support and optional security subscriptions are sold separately. It is used at a campus or main-office internet edge, in the DMZ and between user and server segments.
Best For
The NSa 5700 suits a campus or main-office internet edge that needs 15 Gbps of Threat Prevention throughput and up to 5,000,000 concurrent SPI connections. It suits buyers who already hold SonicWall support or plan to add it. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 15 Gbps, the published Threat Prevention throughput
- you need security services included in the part number, since this one is Appliance Only
02-SSC-4330 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45 |
| Max Port Speed | 10 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0 |
| Performance & Scale | |
| Firewall Throughput | 28 Gbps (RFC 2544) |
| Threat Prevention Throughput | 15 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 7 Gbps (DPI SSL) |
| IPsec VPN Throughput | 15 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 5,000,000 (SPI) |
| New Sessions per Second | 228,000 |
| Maximum DPI Connections | 3,500,000 (DPI) |
| Maximum IPsec VPN Tunnels | 6,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 128 GB (storage expansion slot up to 1 TB) |
| Power & Thermal | |
| Power Supply | 350 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 128.1 W |
| Cooling | 2 removable fans |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.8 × 16.9 × 18.1 in (4.5 × 43 × 46.5 cm) |
| Weight | 17.2 lb (7.8 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) |
| Routing Protocols & IPv6 | BGP4, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
02-SSC-4330 Accessories
| Optional Power Supply | Optional Redundant Power Adapter |
FAQ
Does the SonicWall NSa 5700 02-SSC-4330 include a security subscription?
No. The 02-SSC-4330 is Appliance Only: firewall, VPN and routing run on SonicOS 7, while SonicWall support and security subscriptions such as the Advanced Protection Security Suite are sold separately.
How much traffic can the SonicWall NSa 5700 02-SSC-4330 handle?
SonicWall publishes no user count, so size the NSa 5700 on its figures. Firewall inspection throughput is 28 Gbps, but Threat Prevention throughput is 15 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 5,000,000 concurrent SPI connections and 3,500,000 DPI connections, and opens 228,000 new connections per second.
What interfaces does the SonicWall NSa 5700 02-SSC-4330 have?
The NSa 5700 provides 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSa 5700 02-SSC-4330 support high availability?
The NSa 5700 supports Active/Passive high availability with stateful synchronization.
What is the difference between the NSa 5700 and the NSa 6700?
Both run the same SonicOS 7. The NSa 5700 is rated at 28 Gbps firewall inspection throughput, 15 Gbps Threat Prevention throughput and 5,000,000 concurrent SPI connections; the NSa 6700 is rated at 36 Gbps, 19 Gbps and 8,000,000. Check both interface sets in the specification tables.
Does the 02-SSC-4330 include SonicWall support?
Support is not included with an Appliance Only part number. SonicWall support and optional security subscriptions are sold separately, and Network Devices Inc. confirms the correct support option before the order is placed.
How is the SonicWall NSa 5700 02-SSC-4330 managed?
The NSa 5700 is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them. SonicWall includes centralized management and alerting as part of support, so NSM management needs an active support contract or security bundle.
What condition is the 02-SSC-4330 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-4330 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
