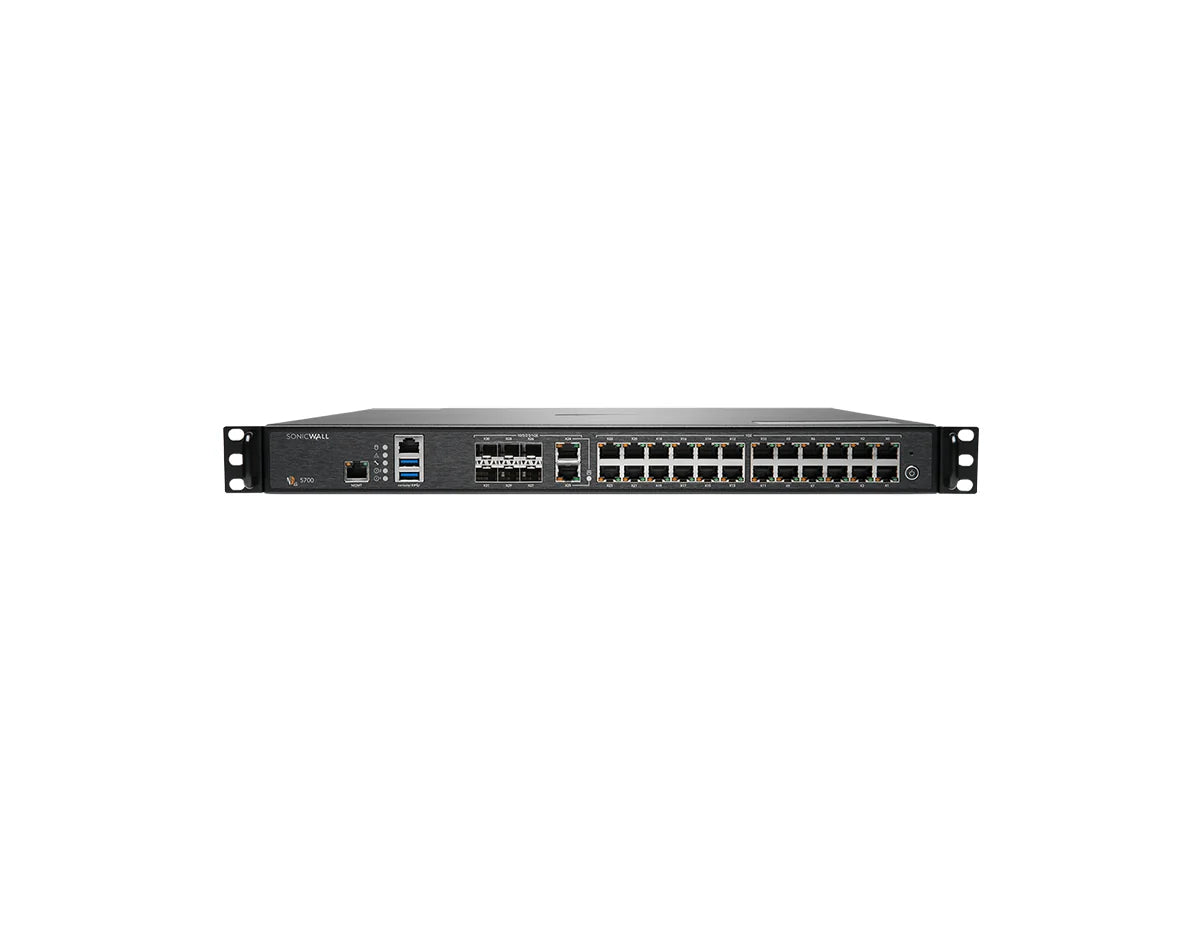

SonicWall NSa 5700 02-SSC-3929 1U Rackmount Firewall, Secure Upgrade Plus Advanced Edition 2-Year
Overview
The SonicWall Gen 7 NSa Series is a 1U next-generation firewall line for medium- to large-sized enterprises. The 02-SSC-3929 is the NSa 5700 Secure Upgrade Plus Advanced Edition bundle. It combines the appliance with 2 years (24 months) of the Advanced Protection Security Suite (APSS). Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls.
Technical Details
The SonicWall NSa 5700 02-SSC-3929 is a 1U rackmount next-generation firewall running SonicOS 7, with 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45. Threat Prevention throughput is 15 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (28 Gbps firewall inspection), and it holds up to 5,000,000 concurrent SPI connections. This part number bundles the appliance with Secure Upgrade Plus Advanced Edition for 2 years (24 months). It is used at a campus or main-office internet edge, in the DMZ and between user and server segments.
Best For
The NSa 5700 suits a campus or main-office internet edge that needs 15 Gbps of Threat Prevention throughput and up to 5,000,000 concurrent SPI connections. It suits buyers who want Secure Upgrade Plus Advanced Edition for 2 years activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 15 Gbps, the published Threat Prevention throughput
- you are not eligible for SonicWall's upgrade program, since this part number is restricted
02-SSC-3929 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45 |
| Max Port Speed | 10 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0 |
| Performance & Scale | |
| Firewall Throughput | 28 Gbps (RFC 2544) |
| Threat Prevention Throughput | 15 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 7 Gbps (DPI SSL) |
| IPsec VPN Throughput | 15 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 5,000,000 (SPI) |
| New Sessions per Second | 228,000 |
| Maximum DPI Connections | 3,500,000 (DPI) |
| Maximum IPsec VPN Tunnels | 6,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 128 GB (storage expansion slot up to 1 TB) |
| Power & Thermal | |
| Power Supply | 350 W; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 128.1 W |
| Cooling | 2 removable fans |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.8 × 16.9 × 18.1 in (4.5 × 43 × 46.5 cm) |
| Weight | 17.2 lb (7.8 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) |
| Routing Protocols & IPv6 | BGP4, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall NSa 5700 02-SSC-3929 include a security subscription?
Yes. The 02-SSC-3929 includes 2 years (24 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, DNS Filtering, 24x7 support with firmware support, and SaaS or on-premises Network Security Manager (NSM) management with 7-day alerting, advanced reporting and analytics. When the term ends the services stop receiving updates unless the subscription is renewed.
How much traffic can the SonicWall NSa 5700 02-SSC-3929 handle?
SonicWall publishes no user count, so size the NSa 5700 on its figures. Firewall inspection throughput is 28 Gbps, but Threat Prevention throughput is 15 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 5,000,000 concurrent SPI connections and 3,500,000 DPI connections, and opens 228,000 new connections per second.
What interfaces does the SonicWall NSa 5700 02-SSC-3929 have?
The NSa 5700 provides 24×1GbE RJ45, 6×10/5/2.5/1GbE SFP+, 2×10/5/2.5/1GbE RJ45. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSa 5700 02-SSC-3929 support high availability?
The NSa 5700 supports Active/Passive high availability with stateful synchronization.
What is the difference between the NSa 5700 and the NSa 6700?
Both run the same SonicOS 7. The NSa 5700 is rated at 28 Gbps firewall inspection throughput, 15 Gbps Threat Prevention throughput and 5,000,000 concurrent SPI connections; the NSa 6700 is rated at 36 Gbps, 19 Gbps and 8,000,000. Check both interface sets in the specification tables.
Who can buy the NSa 5700 Secure Upgrade Plus bundle?
Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls, subject to SonicWall eligibility requirements. Network Devices Inc. confirms eligibility for the 02-SSC-3929 before the order is placed.
Does the 02-SSC-3929 include SonicWall support?
Support is included for the bundle term: SonicWall's Gen 7 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.
How is the SonicWall NSa 5700 02-SSC-3929 managed?
The NSa 5700 is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 02-SSC-3929 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-3929 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
