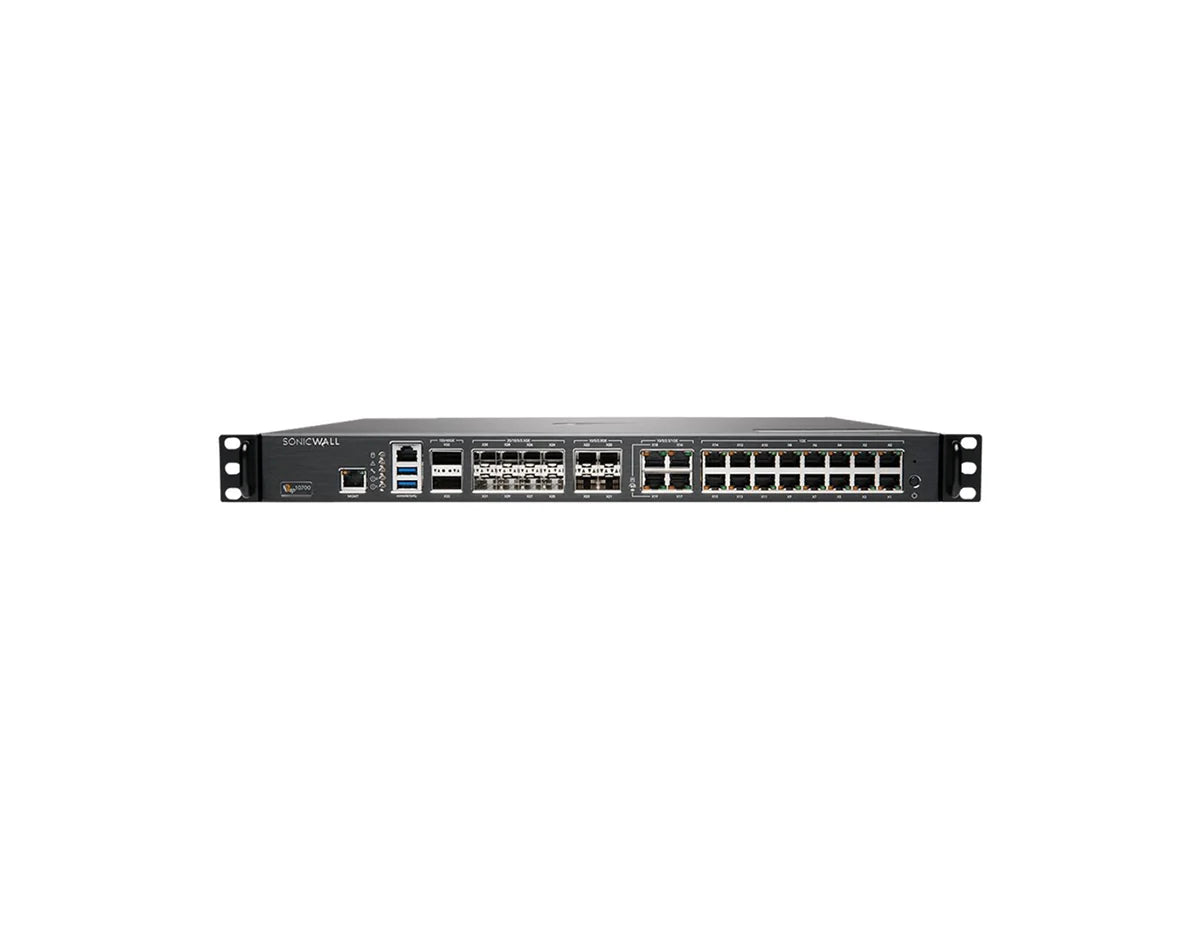

SonicWall NSsp 10700 02-SSC-3629 1U Rackmount Firewall, Secure Upgrade Plus Advanced Edition 2-Year
Overview
The SonicWall Gen 7 NSsp (Network Security services platform) Series is a high-port-density next-generation firewall line built to process several million connections for zero-day and advanced threats in large enterprises. The 02-SSC-3629 is the NSsp 10700 Secure Upgrade Plus Advanced Edition bundle. It combines the appliance with 2 years (24 months) of the Advanced Protection Security Suite (APSS). Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls.
Technical Details
The SonicWall NSsp 10700 02-SSC-3629 is a 1U rackmount next-generation firewall running SonicOS 7, with 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25/10/5/2.5GbE SFP28, 2×100/40GbE QSFP28. Threat Prevention throughput is 28 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (42 Gbps firewall inspection), and it holds up to 15,000,000 concurrent SPI connections and opens 280,000 new connections per second. This part number bundles the appliance with Secure Upgrade Plus Advanced Edition for 2 years (24 months). It is used at a large-enterprise or data-center edge for north-south inspection and high-connection-count workloads.
Best For
The NSsp 10700 suits a large-enterprise or data-center edge that needs 28 Gbps of Threat Prevention throughput and up to 15,000,000 concurrent SPI connections. It suits buyers who want Secure Upgrade Plus Advanced Edition for 2 years activated with the hardware. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 28 Gbps, the published Threat Prevention throughput
- you are not eligible for SonicWall's upgrade program, since this part number is restricted
02-SSC-3629 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25/10/5/2.5GbE SFP28, 2×100/40GbE QSFP28 |
| Max Port Speed | 100 GbE |
| Management & Console Ports | 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A) |
| Performance & Scale | |
| Firewall Throughput | 42 Gbps (RFC 2544) |
| Threat Prevention Throughput | 28 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 10 Gbps (DPI SSL) |
| IPsec VPN Throughput | 22.5 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 15,000,000 (SPI) |
| New Sessions per Second | 280,000 |
| Maximum DPI Connections | 12,000,000 (DPI) |
| Maximum IPsec VPN Tunnels | 6,000 (site-to-site) |
| Hardware & Memory | |
| Onboard Storage | 1.5 TB |
| Power & Thermal | |
| Power Supply | 2×350 W, hot-swappable; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Yes |
| Maximum Power Consumption | 155.3 W |
| Cooling | 3 removable fans |
| Physical & Environmental | |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.8 × 16.9 × 18.1 in (4.5 × 43 × 46 cm) |
| Weight | 20.1 lb (9.1 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Passive with stateful synchronization |
| Central Management Platform | Network Security Manager (NSM) 3.0 and above |
| Routing Protocols & IPv6 | BGP4, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall NSsp 10700 02-SSC-3629 include a security subscription?
Yes. The 02-SSC-3629 includes 2 years (24 months) of the Advanced Protection Security Suite (APSS), which covers Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, NSM Essential with management and 7-day reporting, and 24x7 support with firmware. When the term ends the services stop receiving updates unless the subscription is renewed.
How much traffic can the SonicWall NSsp 10700 02-SSC-3629 handle?
SonicWall publishes no user count, so size the NSsp 10700 on its figures. Firewall inspection throughput is 42 Gbps, but Threat Prevention throughput is 28 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 15,000,000 concurrent SPI connections and 12,000,000 DPI connections, and opens 280,000 new connections per second.
What interfaces does the SonicWall NSsp 10700 02-SSC-3629 have?
The NSsp 10700 provides 16×1GbE RJ45, 4×10/5/2.5/1GbE RJ45, 4×10/5/2.5/1GbE SFP+, 8×25/10/5/2.5GbE SFP28, 2×100/40GbE QSFP28. Management and console connectivity is 1×1GbE RJ45 out-of-band management, 1×Console, 2×USB (type-A). Transceivers for any SFP-type ports are sold separately.
Does the SonicWall NSsp 10700 02-SSC-3629 support high availability?
The NSsp 10700 supports Active/Passive high availability with stateful synchronization. The NSsp datasheet prints no clustering mode, so none is claimed for this appliance.
What is the difference between the NSsp 10700 and the NSsp 11700?
Both run SonicOS 7. The NSsp 10700 is rated at 42 Gbps firewall inspection throughput, 28 Gbps Threat Prevention throughput and 15,000,000 concurrent SPI connections; the NSsp 11700 is rated at 47 Gbps, 37 Gbps and 20,000,000. Check both interface sets in the specification tables.
Who can buy the NSsp 10700 Secure Upgrade Plus bundle?
Secure Upgrade Plus is SonicWall's upgrade and trade-in program for owners of older firewalls, subject to SonicWall eligibility requirements. Network Devices Inc. confirms eligibility for the 02-SSC-3629 before the order is placed.
Does the 02-SSC-3629 include SonicWall support?
Support is included for the bundle term: SonicWall's Gen 7 APSS suite includes 24x7 support. Renewal of the suite renews support. Network Devices Inc. confirms the renewal option before the term ends.
How is the SonicWall NSsp 10700 02-SSC-3629 managed?
The NSsp 10700 is managed through Network Security Manager (NSM) 3.0 and above, and locally through the SonicOS web interface and CLI. Firewall policy, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them.
What condition is the 02-SSC-3629 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-3629 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
