Axis 30W Single Port PoE Outdoor Midspan (01944-001)

Name: Axis 30W Single Port PoE Outdoor Midspan (01944-001)
Brand: Axis
SKU: 01944-001-NEW
Price: 303.45 USD
Availability: InStock

Part Number: 01944-001

Technical Details

100 to 240 V AC 50–60 Hz, 54 V DC up to 30 W, IP66/67- and NEMA 4X-rated for protection against dust, water, and other environmental factors.

$303.45

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

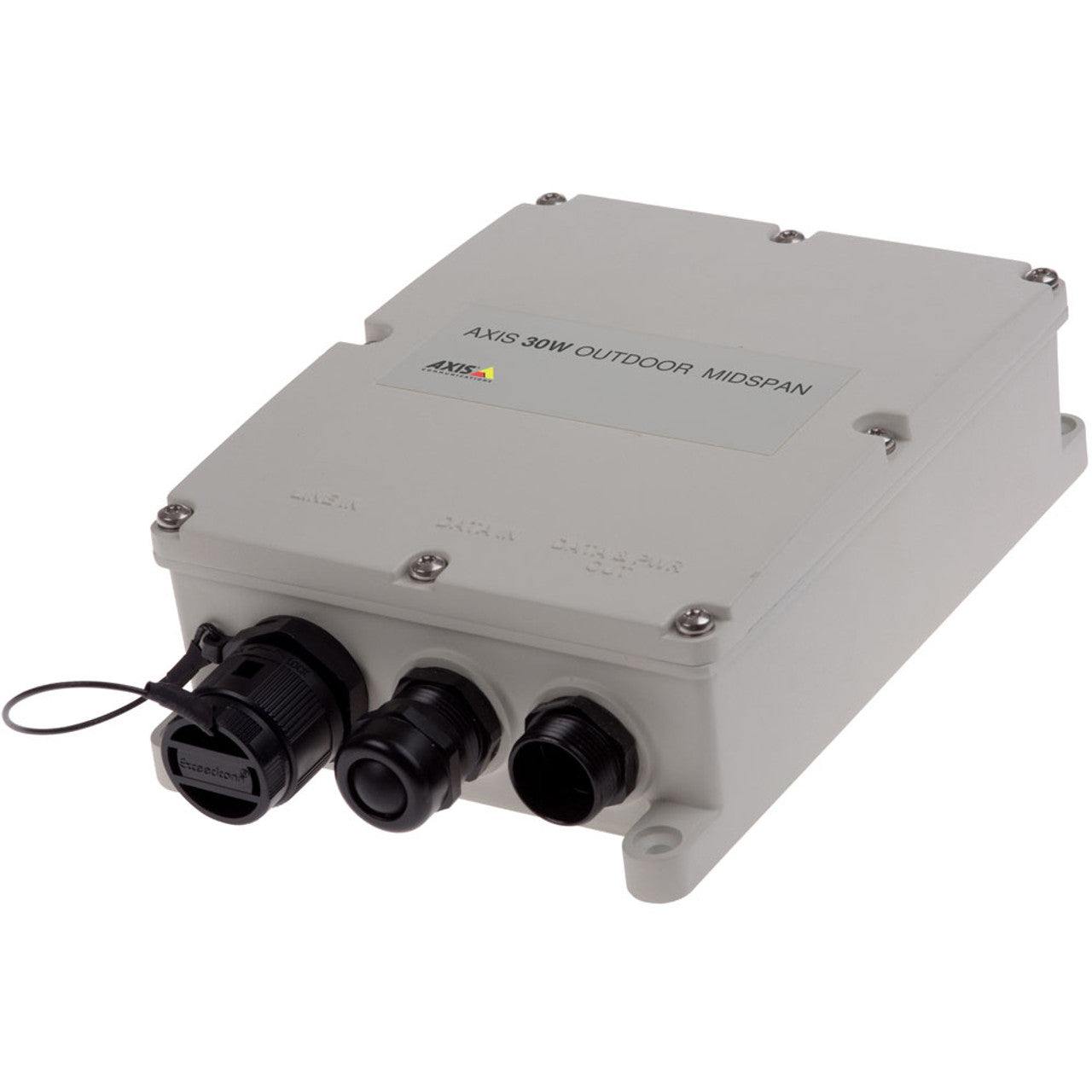

Axis 30W Outdoor Midspan

The Axis 30W Outdoor Midspan is a robust and reliable power solution designed for outdoor installations. It delivers up to 30 W of power to one network device, ensuring compatibility with IEEE 802.3af and 802.3at compliant Axis network devices. This midspan provides a simple and cost-effective way to power network products over Ethernet, eliminating the need for additional power cabling. It is ideal for harsh outdoor environments, offering surge protection up to 6kV for both the AC and PoE ports, and it meets stringent IP66/67 and NEMA 4X standards for weather resistance.

Key Features:

Outdoor-Ready: IP66/67- and NEMA 4X-rated for protection against dust, water, and other environmental factors.
PoE Compatibility: Supports both IEEE 802.3af (Type 1 Class 3) and IEEE 802.3at (Type 2 Class 4) standards, providing up to 30 W of power.
Surge Protection: Equipped with enhanced surge protection, capable of handling up to 6kV surges on data and AC lines.
High Data Rate: Supports data transfer speeds of 10/100/1000 Mbps for fast and reliable network performance.
Durable Construction: Made from aluminum and designed to operate in extreme temperatures ranging from -40 °C to 65 °C (-40 °F to 149 °F).

Technical Overview:

Recommended for: Outdoor installations requiring reliable PoE power in harsh environments.
Power Input: 100 to 240 V AC, 50–60 Hz.
Power Output: 54 V DC, up to 30 W according to IEEE 802.3at standards.
Data Rate: 10/100/1000 Mbps.
Operating Conditions: -40 °C to 65 °C (-40 °F to 149 °F), IP66/67 and NEMA 4X-rated for outdoor use.
Dimensions: 170 x 140 x 60 mm (6.69 x 5.51 x 2.36 in).
Weight: 1.4 kg (3.1 lb).
Mounting Options: Wall or pole mount (optional accessory).
Included Accessories: Installation guide.

You can check the related tab for the Axis 30W Outdoor Midspan datasheet.

Properties

Product Name	Axis 30W Outdoor Midspan
Description	Outdoor-ready midspan designed to power Axis network devices with up to 30 W, offering compatibility with IEEE 802.3af and IEEE 802.3at standards.
Outdoor-Ready	IP66/67- and NEMA 4X-rated for protection against dust, water, and other harsh environmental conditions.
PoE Compatibility	Supports IEEE 802.3af (Type 1 Class 3) and IEEE 802.3at (Type 2 Class 4) standards, delivering up to 30 W.
Surge Protection	Provides 6kV surge protection on both AC and PoE ports for safe outdoor operation.
High Data Rate	Supports 10/100/1000 Mbps data speeds for reliable network performance.
Durable Construction	Made from aluminum, designed to withstand extreme temperatures in outdoor environments.
Recommended Use	Ideal for outdoor installations requiring reliable PoE power in harsh conditions.
Power Input	Accepts 100 to 240 V AC, 50–60 Hz for flexible power options.
Power Output	Delivers 54 V DC, up to 30 W in compliance with IEEE 802.3at standards.
Mounting Options	Wall or pole mounting options available (mounting accessory not included).
Ease of Installation	Eliminates need for separate power cables, simplifying setup with PoE.
Weather Resistance	Tested to withstand harsh weather conditions, with robust IP66/67 and NEMA 4X ratings.

Specifications

Power Input	100 to 240 V AC, 50–60 Hz for wide-ranging compatibility.
Power Output	54 V DC, up to 30 W, compliant with IEEE 802.3at (Type 2).
Data Rate	Supports 10/100/1000 Mbps for fast network connectivity.
Operating Temperature	Designed for -40 °C to 65 °C (-40 °F to 149 °F), suitable for extreme outdoor conditions.
Surge Protection	Equipped with 6kV surge protection on both AC and PoE ports for reliable safety.
Dimensions	170 x 140 x 60 mm (6.69 x 5.51 x 2.36 in), compact for easy integration.
Weight	1.4 kg (3.1 lb), robust construction for stable installation.
Weather Rating	Meets IP66/67 and NEMA 4X standards, ideal for exposure to elements.
Mounting Compatibility	Supports wall or pole mounting options for flexible placement.
Material	Constructed from aluminum, providing durability in challenging environments.
