AXIS ExCam XPT Q6075 Explosion-Protected PTZ Camera - Network Devices Inc

AXIS ExCam XPT Q6075 Explosion-Protected PTZ Camera (01928-001)

Name: AXIS ExCam XPT Q6075 Explosion-Protected PTZ Camera (01928-001)
Brand: Axis
SKU: 01928-001-NEW
Price: 17910.0 USD
Availability: InStock

Part Number: 01928-001

Technical Details

Zone 1-certified high-speed PTZ dome camera, HDTV 1080p at 50/60 fps, with 40x optical zoom, Axis Lightfinder 2.0, Autotracking 2 and orientation aid, TPM, FIPS 140-2 level 2 certified, ATEX, IECEx, EAC and IA; Zone 1, 21

$17,910.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS ExCam XPT Q6075 Explosion-Protected PTZ Camera (01928-001)

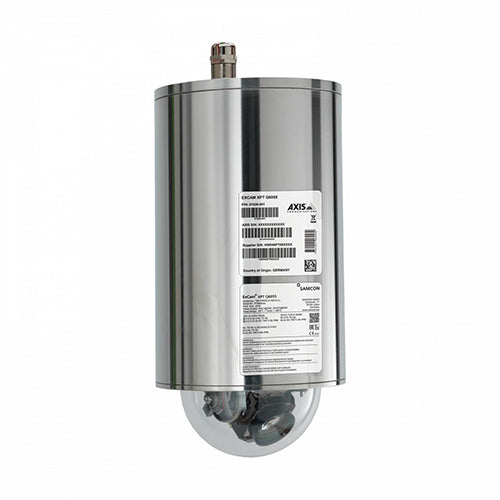

The ExCam XPT Q6075 is a high-quality camera that provides 40x optical zoom and excellent video resolution in HDTV 1080p. It also comes equipped with several Axis analytic applications that ensure the safety of personnel and equipment. This PTZ dome camera is much lighter than traditional positioning cameras, weighing only 20 kg, and it is enclosed in a robust stainless-steel explosion-protected housing. Furthermore, it is certified (ATEX, IECEx, EAC, and IA) for use in potentially combustible environments.

Quick Specs:

TPM, FIPS 10-2 level 2 certified
Autotracking 2 and orientation aid
HDTV 1080p at 50/60 fps, with 40x optical zoom
ATEX, IECEx, EAC and IA; Zone 1,21

Please see the related tabs for the 01928-001 datasheet and compatible accessories.

Properties

Properties	XPT Q6075
Description	AXIS ExCam XPT Q6075 is a high-performance PTZ camera that offers superior light sensitivity for a clear, sharp overview and remarkable detail in near darkness. Enclosed in a stainless-steel housing, it's certified (ATEX, IECEx, EAC, and IA) for use in potentially combustible environments.
Product Family	ExCam XPT Series
Product Type	Explosion-protected Camera
Image sensor	1/2.8" progressive scan RGB CMOS
Lightfinder	Lightfinder 2.0
Wide dynamic range	Forensic WDR
PoE Class	4
Connectors	EXTB-3 Junction Box ExCam: 10 terminal clamps UT 2.5 2 conductor terminal USLKG 5.3 3 M20 cable entries
Signed firmware	Yes
Secure boot	Yes
TPM	Yes
Remote focus	–
Remote zoom	–
Local storage (memory card slot)	Yes
Outdoor Ready	Yes
IP rating	IP66, IP68
DC input voltage	24 V DC (for heater), PoE+ (Class 4) for camera
Max consumption	17.1 W (camera via PoE+), up to 60 W (heater at -50 °C)
Dimensions	ø 195 mm (7 11/16 in) x 378 mm (14 7/8 in)
Weight	20 kg (44.1 lb)
Operating Temperature	-50 °C to 50 °C (-58 °F to 122 °F), intermittent up to 60 °C (140 °F)
Event actions	Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap PTZ: PTZ preset, start/stop guard tour
	File upload via FTP, SFTP, HTTP, HTTPS network share and email
	Notification via email, HTTP, HTTPS and TCP
	MQTT publish
Applications	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, autotracking 2, active gatekeeper Basic analytics (not to be compared with third-party analytics): object removed, enter/exit detector, object counter Support for AXIS Camera Application Platform enabling installation of third-party applications

Specifications

Specifications	XPT Q6075
System on chip (SoC) Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Min illumination/ light sensitivity (Color)	0.1 lux
Min illumination/ light sensitivity (B/W)	0.002 lux
Max video resolution	1920x1080
Max frames per second	50/60
Electronic image stabilization	Yes
Focal length	4.25 - 170 mm
Pan/Tilt/Zoom	Pan: 360° endless, 0.05°–450°/s Tilt: 180°, 0.05°–450°/s Zoom: 40x optical, 12x digital, Total 480x zoom E-flip, 256 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, orientation aid PTZ, set new pan 0°, adjustable zoom speed, focus recall
Horizontal field of view	65.1-2 °
Vertical field of view	39.1-1.18 °
Zipstream	Yes
H.264	Baseline, High, Main
H.265	Yes
Motion JPEG	Yes
Cybersecurity	Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption, Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure keystore, secure boot, IEEE 802.1X (EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
Certifications	Model key: T08-TNXCD-LL.H-005.A-T ATEX: II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T80°C Db Certificate: TÜV 18 ATEX 8218X IECEx: Ex d IIC T6 Gb, Ex tb IIIC T80°C Db Certificate: IECEx TUR 18.0023X EAC Ex: Ex d IIC T6 Gb, Ex tb IIIC T80°C Db Series: T8, Model: T08-TNXCD. Certificate: RU C-DE.HA65.B.01652/22 IA: Ex d IIC T6 Gb, Ex tb IIIC T80°C Db Certificate: MASC MS/18-3256X UKCA: II 2 G Ex db IIC T5 Gb, II 2 D Ex tb IIIC T95 °C Db Certificate: TÜV 22 UKEX 7137 X EXTB-3 Junction Box ExCam: Model key: T12-3M20 ATEX: II 2 G Ex eb IIC T5 Gb, Ex II 2 D Ex tb IIIC T95°C Db IP66 Certificate: PTB 99 ATEX 3103 IECEx: Ex e IIC T5 Gb, Ex IIIC T95°C Db IP66 Certificate: IECEx PTB 06.0026 EAC Ex: 1Ex e IIC T5 Gb X, Ex tb IIIC T95°C Db X Certificate: RU C-DE.AA71.B.00120

Accessories

Included accessories	Pre-connected 5 m (16 ft) ASKDP03-T Armoured Cable ExCam, AXIS T8154 60 W SFP Midspan, EXTB-3 Junction Box ExCam, AXIS Surveillance Card 128 GB, Installation guide, Windows® decoder 1-user license
SKDP03-T	Non-armored data and power cable
ASKDP03-T	Armored data and power cable
ExConnection Rail 4-Port PoE	Four 30 W PoE ports
ExConnection Rail 8-Port PoE	Eight 30 W PoE ports
Pole Mount 110-150 mm, stainless steel
Wall Mount ExCam XPT
Ceiling Mount ExCam XPT
