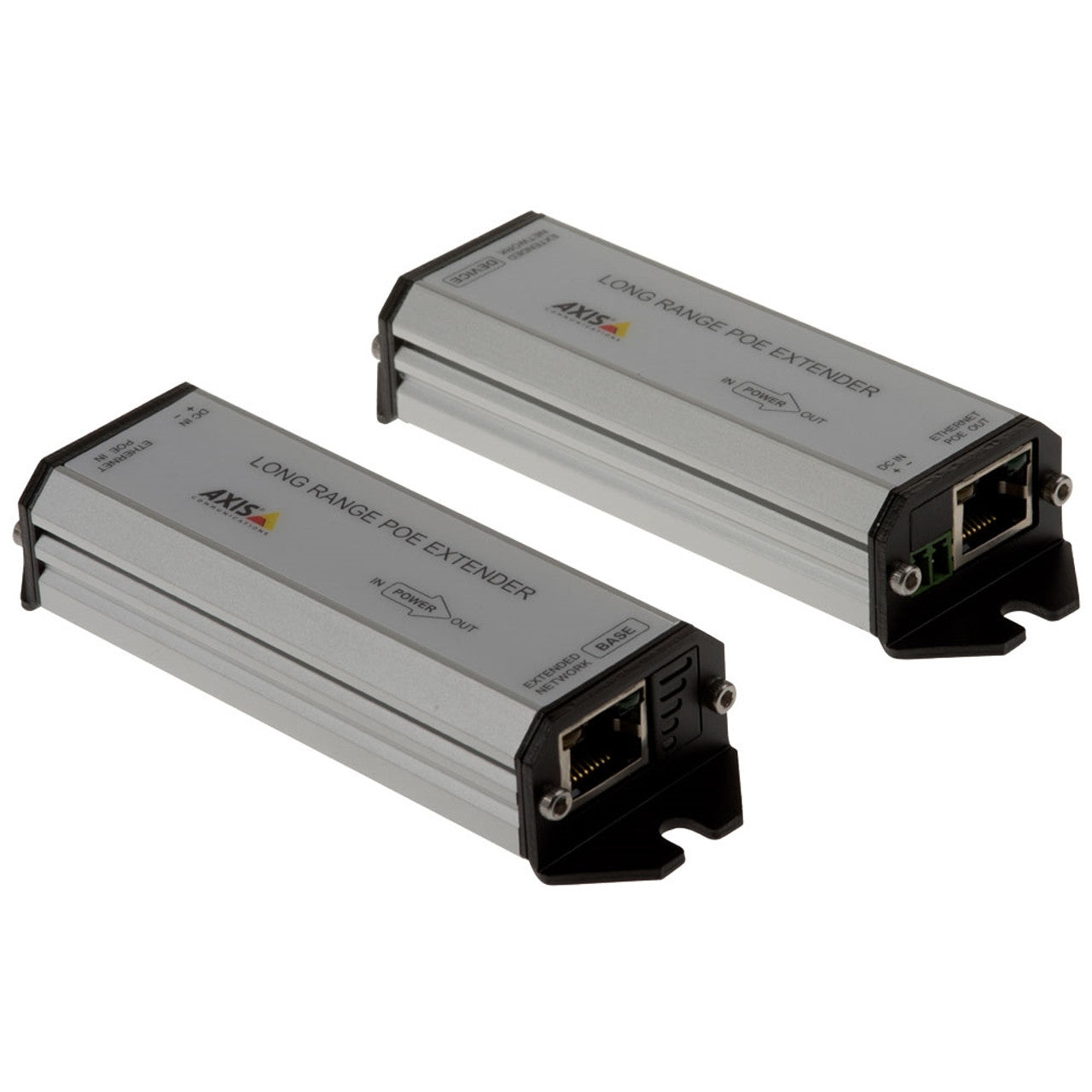

AXIS Long Range PoE Extender Kit

The AXIS Long Range PoE Extender Kit is a compact and efficient solution designed to extend the reach of your network and Power over Ethernet (PoE) connections. This kit enables the installation of Axis network devices at distances beyond the standard 100 m (328 ft) Ethernet cable limit, supporting up to 1000 m (3280 ft). It is compatible with IEEE 802.3af and IEEE 802.3at PoE devices, providing flexibility for various indoor network setups. The design ensures reliable performance in standard indoor environments, offering extended reach with minimal infrastructure requirements.

Key Features:

• Extends Ethernet and PoE Connections: Supports distances up to 1000 m (3280 ft), allowing for flexible installations.
• IEEE 802.3af and IEEE 802.3at Support: Compatible with a wide range of PoE and PoE+ devices.
• Reliable Indoor Design: Optimized for indoor environments with consistent performance.
• Cost-Efficient Solution: Eliminates the need for additional network infrastructure, reducing overall installation costs.
• NEMA TS 2 Compatible: Ensures stable operation and compliance for professional installations.

Technical Specifications:

• Data Rate: 100 Base-TX, 10 Base-T
• Maximum Distance: Up to 1000 m (3280 ft)
• Connectors: RJ45, 2-pin DC power
• Network Cables: CAT5e, CAT6
• Power Input: PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4), DC power 57 V
• Power Output: PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4)
• Operating Conditions: -40 °C to 70 °C (-40 °F to 158 °F), max humidity 85% (non-condensing)
• Dimensions: 120 x 36 x 23 mm (4.7 x 1.4 x 0.9 in)
• Weight: 100 g (0.2 lb)
• Approvals: EMC, Safety, NEMA TS 2, Environment

For more information about the AXIS Long Range PoE Extender Kit, visit the Axis product page.
