Axis M1135 1080p Indoor Bullet IP Camera (01768-001)

Name: Axis M1135 1080p Indoor Bullet IP Camera (01768-001)
Brand: Axis
SKU: 01768-001-NEW
Price: 419.0 USD
Availability: InStock

Part Number: 01768-001

Technical Details

Indoor surveillance requiring high-definition video, 1/2.9" progressive scan RGB CMOS, 2 MP / HDTV 1080p at 30 fps for clear and detailed footage.

$419.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

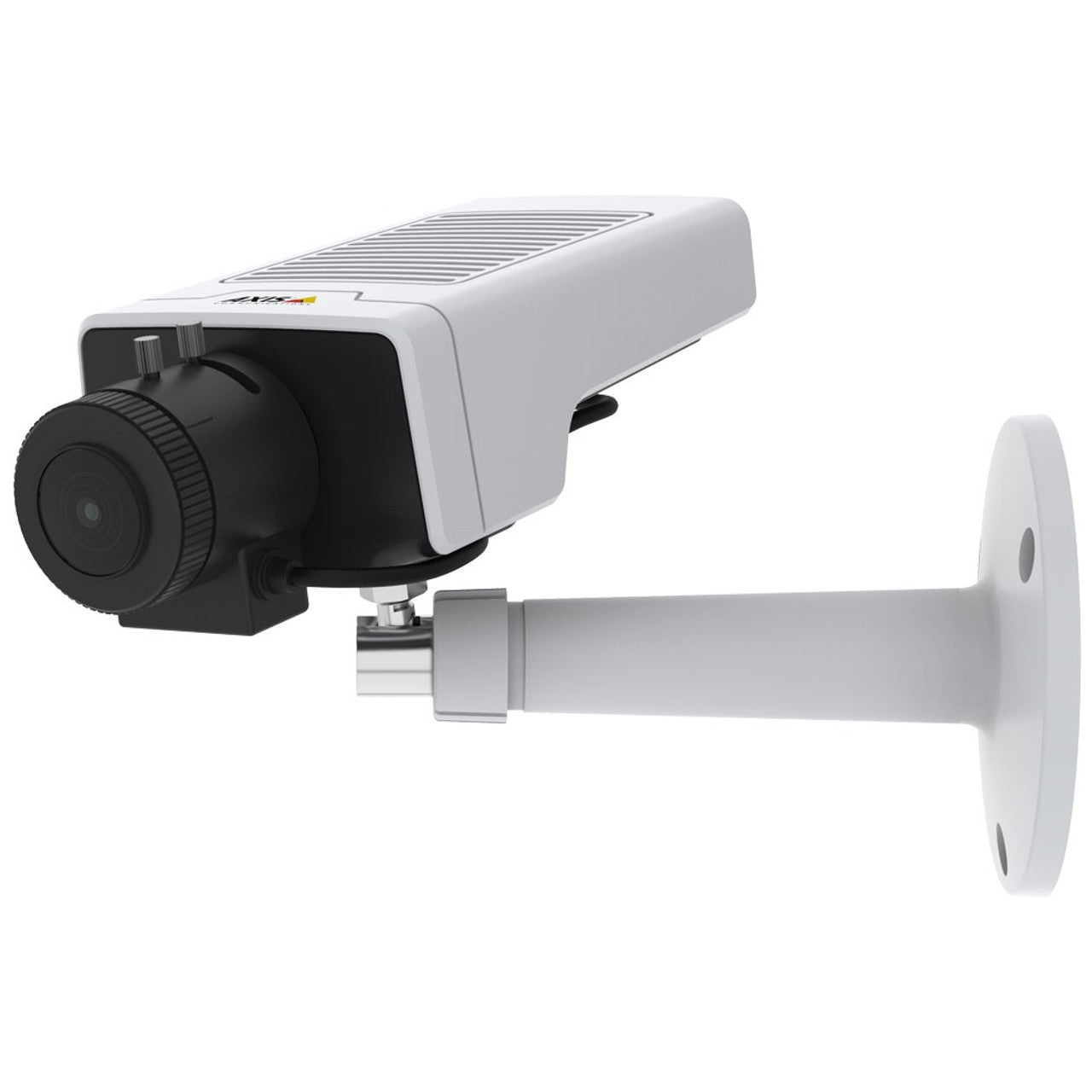

Axis M1135 Network Camera

The Axis M1135 Network Camera is a 2 MP premium surveillance solution that offers affordability without compromising on quality. Compact and easy to install, this camera supports Power over Ethernet (PoE) and redundant DC power to ensure data safety during power outages. Featuring Axis Lightfinder and Axis Forensic WDR, the M1135 delivers true colors and detailed images in challenging light conditions or near darkness. It includes a CS-mount, allowing easy lens replacement to suit specific requirements, and a built-in microphone for audio recording. Additionally, Axis Zipstream technology with H.264/H.265 reduces bandwidth and storage needs while maintaining high video quality.

Key Features:

High-Resolution Video: 2 MP / HDTV 1080p at 30 fps for clear and detailed footage.
Lightfinder and Forensic WDR: Superior performance in low light and challenging lighting conditions.
Built-in Microphone: Supports audio recording with the option to disable the microphone if needed.
Exchangeable Lens: CS-mount with varifocal lens allows easy customization of the camera’s field of view.
Efficient Streaming: Axis Zipstream technology supporting H.264 and H.265 optimizes bandwidth and storage usage.

Technical Overview:

Recommended for: Indoor surveillance requiring high-definition video and advanced low-light performance.
Image Sensor: 1/2.9" progressive scan RGB CMOS.
Lens: Varifocal, IR corrected, CS-mount, DC-iris, 3–10.5 mm with horizontal FOV: 90°–33°, vertical FOV: 49°–19°.
Minimum Illumination: 0.15 lux (color) and 0.03 lux (B/W) with Forensic WDR and Lightfinder.
Video Compression: H.264, H.265, Motion JPEG, with Axis Zipstream technology for optimized bandwidth usage.
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F), humidity 10–85% RH (non-condensing).
Power: PoE IEEE 802.3af/802.3at Type 1 Class 2, max 6.49 W, typical 4.1 W.
Dimensions: 46 x 70 x 148 mm (1.8 x 2.8 x 5.8 in).
Weight: Barebone: 165 g (0.36 lb); With optics: 205 g (0.45 lb).
Included Accessories: AXIS T91A11 Stand White, installation guide, Windows® decoder 1-user license.

You can check the related tab for the Axis M1135 datasheet.

This product has reached its end-of-life. The recommended replacement model is M1135 Mk II (02483-001)

Properties

Product Name	Axis M1135 Network Camera
Description	Compact 2 MP network camera offering high-quality surveillance with advanced light handling features, suitable for indoor installations.
High-Resolution Video	Provides 2 MP / HDTV 1080p resolution at 30 fps for clear, detailed footage.
Low-Light Performance	Features Axis Lightfinder and Forensic WDR for true-to-life colors and detail in low-light and high-contrast scenes.
Built-in Microphone	Supports audio recording with an option to disable the microphone if privacy is required.
Exchangeable Lens	CS-mount with a varifocal, IR-corrected lens allows easy customization of the field of view.
Efficient Streaming	Axis Zipstream technology with H.264/H.265 compression reduces bandwidth and storage needs without losing quality.
Audio Capabilities	Supports audio input (simplex) with an integrated microphone for sound monitoring.
Power Redundancy	Supports Power over Ethernet (PoE) and redundant DC power for continuous operation during outages.
Minimum Illumination	Delivers 0.15 lux (color) and 0.03 lux (B/W) for visibility in near-darkness.
Recommended Use	Ideal for indoor surveillance with challenging lighting conditions, such as retail and office environments.
Durability	Constructed for reliable indoor operation with robust environmental tolerance.
Mounting Compatibility	Comes with a compatible stand, suitable for wall or ceiling mounting.

Specifications

Image Sensor	1/2.9" progressive scan RGB CMOS sensor, providing high-quality image capture.
Lens Type	Varifocal, IR-corrected, CS-mount with a DC-iris; adjustable 3–10.5 mm focal length.
Field of View	Horizontal FOV: 90°–33°, Vertical FOV: 49°–19°, adaptable for different monitoring areas.
Minimum Illumination	0.15 lux (color) and 0.03 lux (B/W) with Lightfinder and Forensic WDR.
Video Compression	Supports H.264, H.265, and Motion JPEG with Axis Zipstream for bandwidth optimization.
Operating Temperature	Operates in temperatures from -20 °C to 50 °C (-4 °F to 122 °F).
Humidity Range	10–85% RH (non-condensing), suitable for controlled indoor environments.
Power Consumption	PoE IEEE 802.3af/802.3at Type 1 Class 2, with a maximum of 6.49 W and typical usage of 4.1 W.
Dimensions	46 x 70 x 148 mm (1.8 x 2.8 x 5.8 in), compact for versatile placement.
Weight	Without optics: 165 g (0.36 lb); With optics: 205 g (0.45 lb), lightweight for easy installation.
Installation Flexibility	Compatible with Axis T91A11 Stand, providing mounting options for different setups.
Audio Channels	Supports audio input (simplex) for sound monitoring.
Power Options	Supports PoE and redundant DC power, providing flexibility and reliability.
Heat Management	Engineered to operate efficiently within a broad temperature range.

Accessories

Included Accessories

AXIS T91A11 Stand White.
