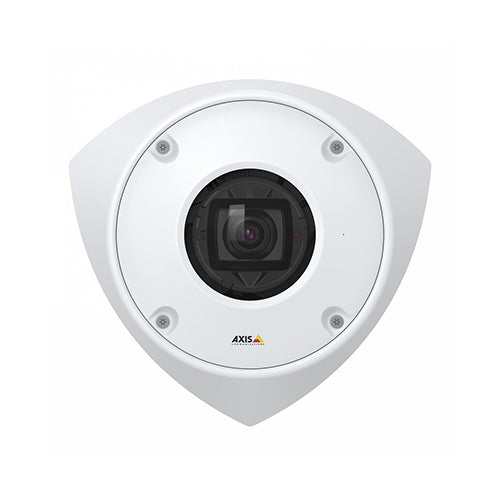

Robust stainless steel corner-mount camera replacing AXIS Q8414 (Trinity).
Key features:
• Anti-ligature, stainless steel, IK11, IP66,
• 4MP, >90 degree VFoV, >120 degree HFoV,
• 940nm LEDs for invisible IR
• H.264 + H.265 with Zipstream,
• Built-in michrophone,
• I/O and optional line-in/out,
• Option to further prevent screw-tampering
| Properties | AXIS Q9216-SLV Network Camera - White |
| Description | The AXIS Q9216-SLV Network Camera is a durable 4 MP anti-ligature corner-mount camera with a compact design. It covers 125 degrees horizontally, 95 degrees vertically, and features invisible IR for covert surveillance in complete darkness. With an IK11/IP66 rated casing, removable built-in microphone, and indication LED, it ensures robustness. The camera supports flexible coverage with polygonal privacy masking, and security features like signed firmware and TPM prevent unauthorized access. Easy to install with Zipstream support for H.264 and H.265, it delivers high-quality video with no blind spots. |
| Product Family | AXIS Q9216-SLV Network Camera |
| Product Type | Camera |
| Specifications | AXIS Q9216-SLV Network Camera - White |
| Camera | |
| Image sensor | 1/2.5” progressive scan RGB CMOS |
| Lens | 2.4 mm, F2.0 |
| Horizontal field of view: 125° | |
| Vertical field of view: 95° | |
| Fixed focus, fixed iris, M12 mount | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | Color: 0.23 lux at F2.1 |
| B/W: 0.05 lux at F2.1 | |
| 0 lux with IR illumination on | |
| Shutter speed | 1/32500 s to 1/5 s |
| System on chip (SoC) | |
| Model | S5L |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Main and High profile |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 2304 x 1728 to 320x 240 |
| Frame rate | Up to 30/25 fps (60/50 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| HDMI | |
| Multi-view streaming | individually cropped out view areas |
| HDMI output | HDMI 1080p (16:9) @25/30 fps (50/60 Hz) |
| HDMI 720p (16:9) @50/60 fps (50/60 Hz) | |
| Pan/Tilt/Zoom | Digital PTZ |
| Image settings | Saturation, contrast, brightness, sharpness, WDR, white balance, |
| day/night threshold, exposure mode, compression, rotation: 0°, | |
| 90°, 180°, 270° including Corridor Format, mirroring, dynamic | |
| text and image overlay, polygon privacy mask | |
| Audio | |
| Audio streaming | Two-way, full duplex |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input/output | External microphone input or line input, line output, built-in |
| microphone (removable) | |
| Balanced audio in and audio out is supported | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4,IPv6 USGv6, HTTP, HTTP/2, HTTPS* , SSL/TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, SIP, MQTT v3.1.1, Syslog |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-Click Cloud Connection | |
| ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T, | |
| specification at onvif.org | |
| Support for Session Initiation Protocol (SIP) for integration with | |
| Voice over IP (VoIP) systems, peer to peer or integrated with | |
| SIP/PBX | |
| Event conditions | Analytics, shock detection, casing open, edge storage events, |
| supervised external input, audio level, time scheduled | |
| Event actions | Calls: answer, end SIP calls, make SIP calls |
| Upload of images or video clips: FTP, HTTP, HTTPS, SFTP, email | |
| and network share | |
| Notification: HTTP, HTTPS, TCP and email | |
| Audio clips, day-night mode, guard tours, I/O, IR illumination, | |
| overlay text, power saving mode, preset positions, prioritized | |
| text, recordings, SNMP trap messages, status LED, WDR mode | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter, adjustable IR illumination intensity |
| Analytics | |
| Applications | Included |
| AXIS Video Motion Detection, AXIS Motion Guard, | |
| AXIS Fence Guard, and AXIS Loitering Guard | |
| active tampering alarm | |
| Support for AXIS Camera Application Platform enabling | |
| General | |
| Casing | Anti-ligature and anti-grip stainless steel casing and |
| polycarbonate hard-coated dome. | |
| IP66-, IP69-, IP6K9K- and NEMA 4X-rated | |
| IK11 50 joules impact-resistant | |
| White: Color: White NCS S 1002-B | |
| For repainting instructions | |
| contact your Axis partner. | |
| Sustainability | PVC-free, BFR/CFR free |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 |
| Max. 10.8 W | |
| Typical 4.7 W (default IR) | |
| Typical 3.9 W (power-saving mode with limited IR) | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4–pin 2.5 mm (0.098 in) terminal block for 1 supervised | |
| digital input and 1 digital output (12 V DC output, max. load | |
| 25 mA) | |
| 3.5 mm mic/line in, 3.5 mm line out | |
| HDMI type D | |
| IR illumination | Power-efficient, long-life and invisible 940 nm IR LED. |
| Range of reach up to 15 m (49 ft) depending on the scene | |
| Optional power-saving mode to minimize IR LED power | |
| consumption | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| Operating conditions | (-20°C to 50 °C (-4 °F to 122 °F) |
| Maximum temperature (intermittent): 55 °C (131 °F) | |
| Start-up temperature: -20 °C (-4 °F) to 55 °C (131 °F) | |
| Humidity 10-85% RH (condensing) | |
| Storage conditions | (-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) | |
| Approvals | EMC |
| EN 50130-4, EN 55032 Class A, EN 55035, IEC/EN 61000-6-1, | |
| IEC/EN 61000-6-2, FCC Part 15 Subpart B Class A, | |
| ICES-3(A)/NMB-3(A), VCCI Class A, KC KN-32 Class A, KC KN-35, | |
| RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35 | |
| Safety | |
| IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471, | |
| IS 13252 | |
| Environment | |
| EN 50130–5 Class I, IEC 60068-2-1, IEC 60068-2-2, | |
| IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, | |
| IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, | |
| ISO 20653 IP6K9K, IEC/EN 62262 IK11, NEMA 250 Type 4X | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Height: 131 mm (5.16 in) |
| Width: 209 mm (8.23 in) | |
| Depth: 176 mm (6.93 in) | |
| Height when corner–mounted: 116 mm (4.57 in) | |
| Depth when corner–mounted: 148 mm (5.83 in) | |
| Weight | 1.6 kg (3.5 lb) |
| Included accessories | Installation guide, Windows® |
| decoder 1-user license, AVHS | |
| Authentication key, AXIS Device Microphone A, AXIS Connector | |
| A 4–pin 2.5 straight, cable gaskets, RESISTORX® 20 bit | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese | |
