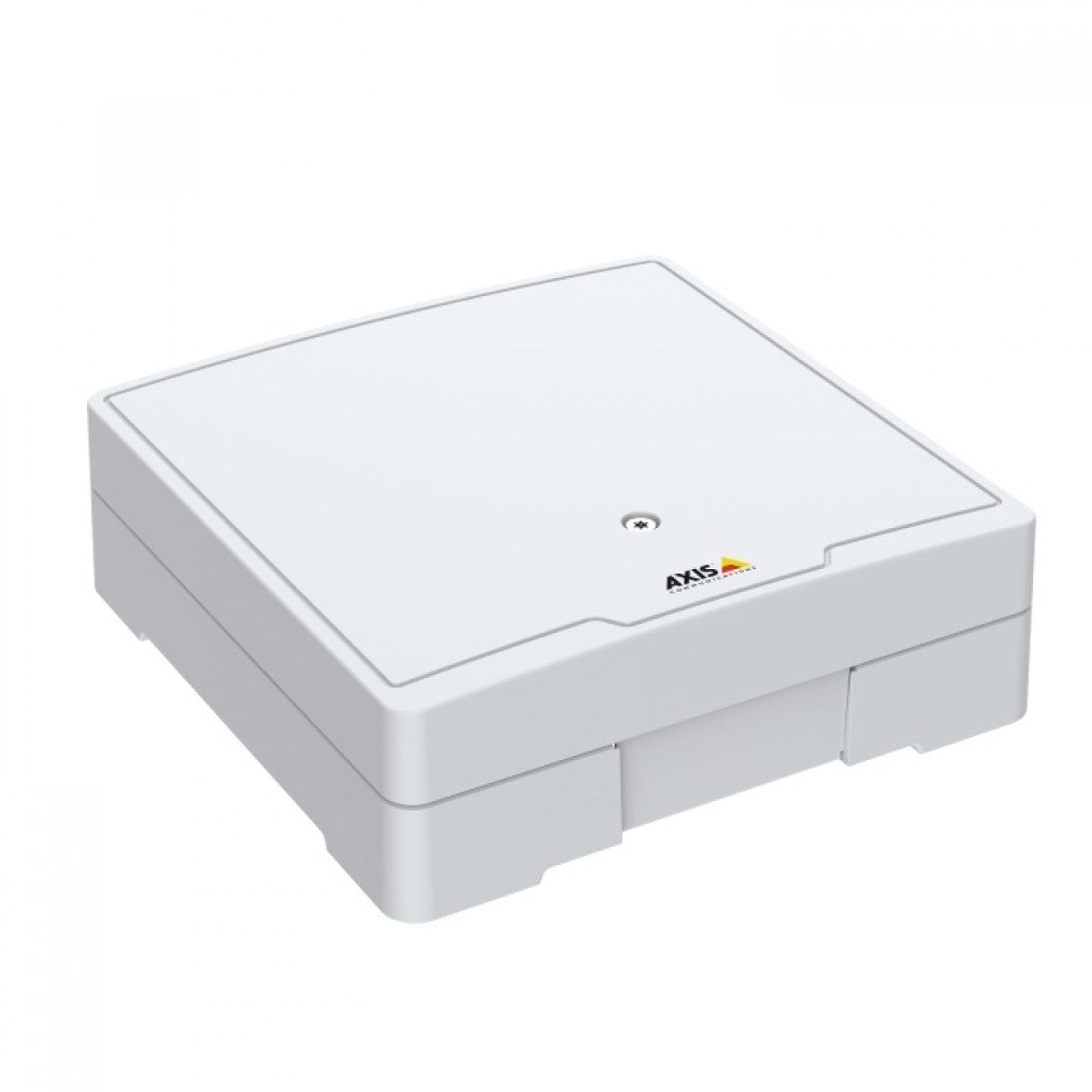

AXIS A1601 Network Door Controller

The AXIS A1601 Network Door Controller is an advanced, open-platform access management solution designed for midsized to large installations. This high-performance controller enables seamless integration with third-party software and hardware, providing a scalable and future-proof access control system. It is ideal for multi-site installations that require a reliable, flexible, and secure system. Featuring Power over Ethernet (PoE+) support, the AXIS A1601 can power connected devices, minimizing cabling requirements. It supports up to two readers and can manage wired and wireless locks, offering an efficient and comprehensive access management solution.

Key Features:

• Open Platform: Compatible with third-party access management software and hardware, offering flexibility in system design.
• PoE+ Support: Powers the controller and connected equipment with a single Ethernet cable, simplifying installation.
• Support for Wired and Wireless Locks: Controls up to 2 wired doors and integrates with wireless lock technologies.
• Advanced Security: Includes tamper detection, encrypted communication, and HTTPS support for enhanced security.
• Seamless Integration: ONVIF Profile A and C compliant, allowing easy integration with video surveillance and intrusion detection systems.

Technical Specifications:

• Reader Compatibility: Supports up to 2 RS485 (OSDP) or Wiegand readers
• Credential Storage: Unlimited credentials with third-party software, up to 70,000 stored locally
• I/O Interface: 2x2 supervised inputs/outputs, 12 V DC output for connected devices
• Power: PoE+ IEEE 802.3at, 10.5–28 V DC, backup battery support
• Event Log: Stores up to 100,000 events in FIFO (First In, First Out) mode
• Operating Conditions: -40 °C to 55 °C (-40 °F to 131 °F)
• Dimensions: 175 x 175 x 60 mm (6 7/8 x 6 7/8 x 2 3/8 in)
• Weight: 1.2 kg (2.6 lb)

For more information about the AXIS A1601 Network Door Controller, visit the Axis product page.
