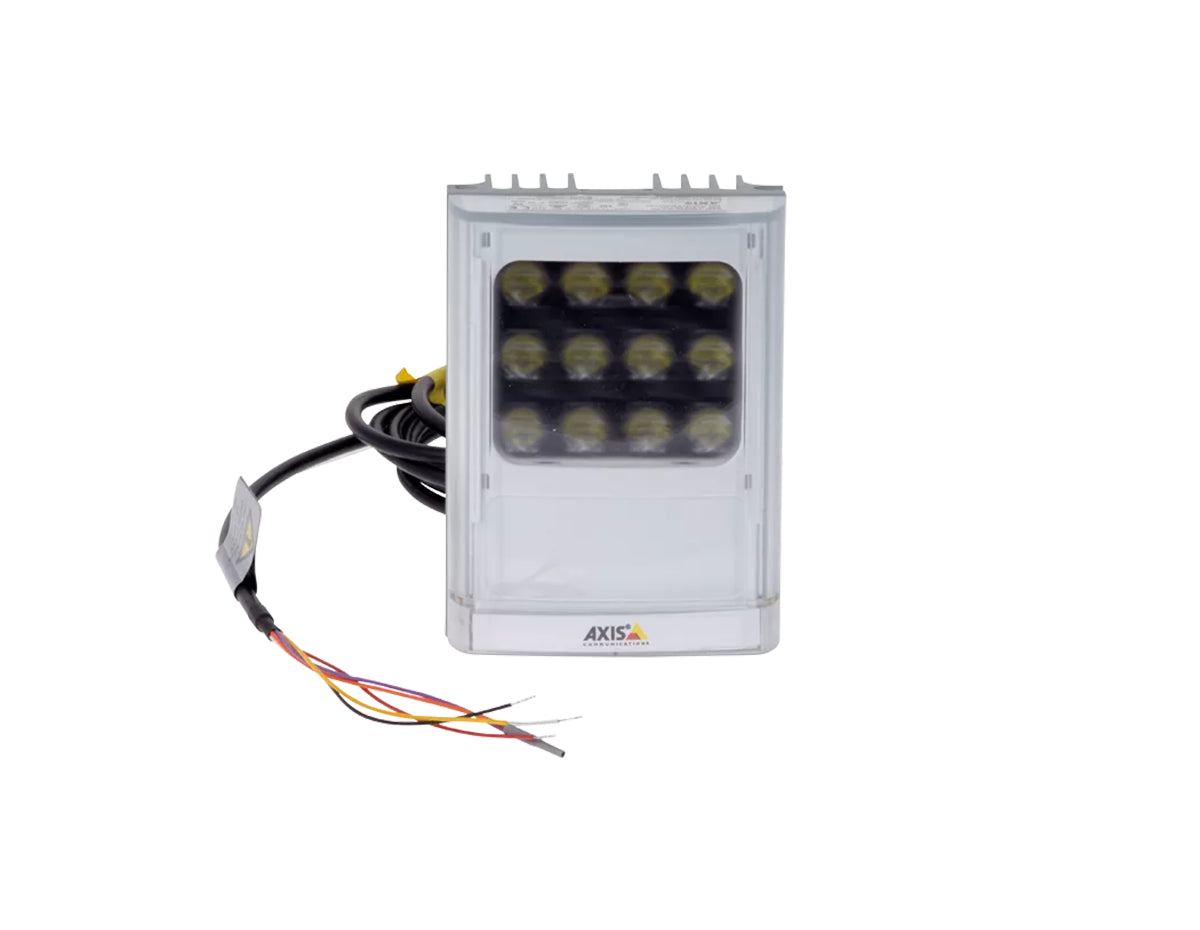

The AXIS T90D25 W-LED delivers powerful, efficient wide-spectrum illumination for video surveillance, ensuring excellent visibility in low-light environments using optimized LED distribution. Its flexible lens system allows fine-tuning of coverage to match the exact field of view of the camera, minimizing foreground overexposure and supporting longer detection distances.
With options for either AC/DC or PoE powering, plus remote control adjustment, the T90D25 integrates seamlessly into existing installations and enables easy on-site or remote configuration. Built with rugged IP66/IK09 environmental protection, it delivers reliable performance in harsh outdoor conditions, from -50°C to +50°C.
Precision illumination with durable and flexible power options
- Optimized LED output for improved clarity and visibility in dark environments
- Interchangeable beam lenses provide tailored illumination angles from 10° to 120°
- Choice of AC/DC or PoE input enables flexible deployment
- Rugged IP66 and IK09 durability ensures reliable outdoor performance
- Remote control capability for power and sensitivity adjustment
- Supports ALL Axis network cameras
Ideal Use Cases
- Critical perimeter and fence-line monitoring
- Parking lots, industrial zones, loading bays
- Public security & municipal surveillance
- Warehouse yards & outdoor commercial sites
- Any location requiring bright visual identification at night
Technical Specifications Summary
- Illumination: White-light 6000K, 1863 lm
- Lens angles: 10°, 35°, 60°, 80°, 120°
- Max illumination range: 110 m (361 ft)
- Power (AC/DC): 12–24 V AC/DC; 24 W max
- Power (PoE): IEEE 802.3at Class 4; 25 W max
- Operating temperature: -50°C to 50°C (-58°F to 122°F)
- Environmental protection: IP66, IK09
- Mounting options: Wall, ceiling, pole, housing
Upgrade Your Operations
Enhance night-time surveillance performance with optimized high-power illumination.
