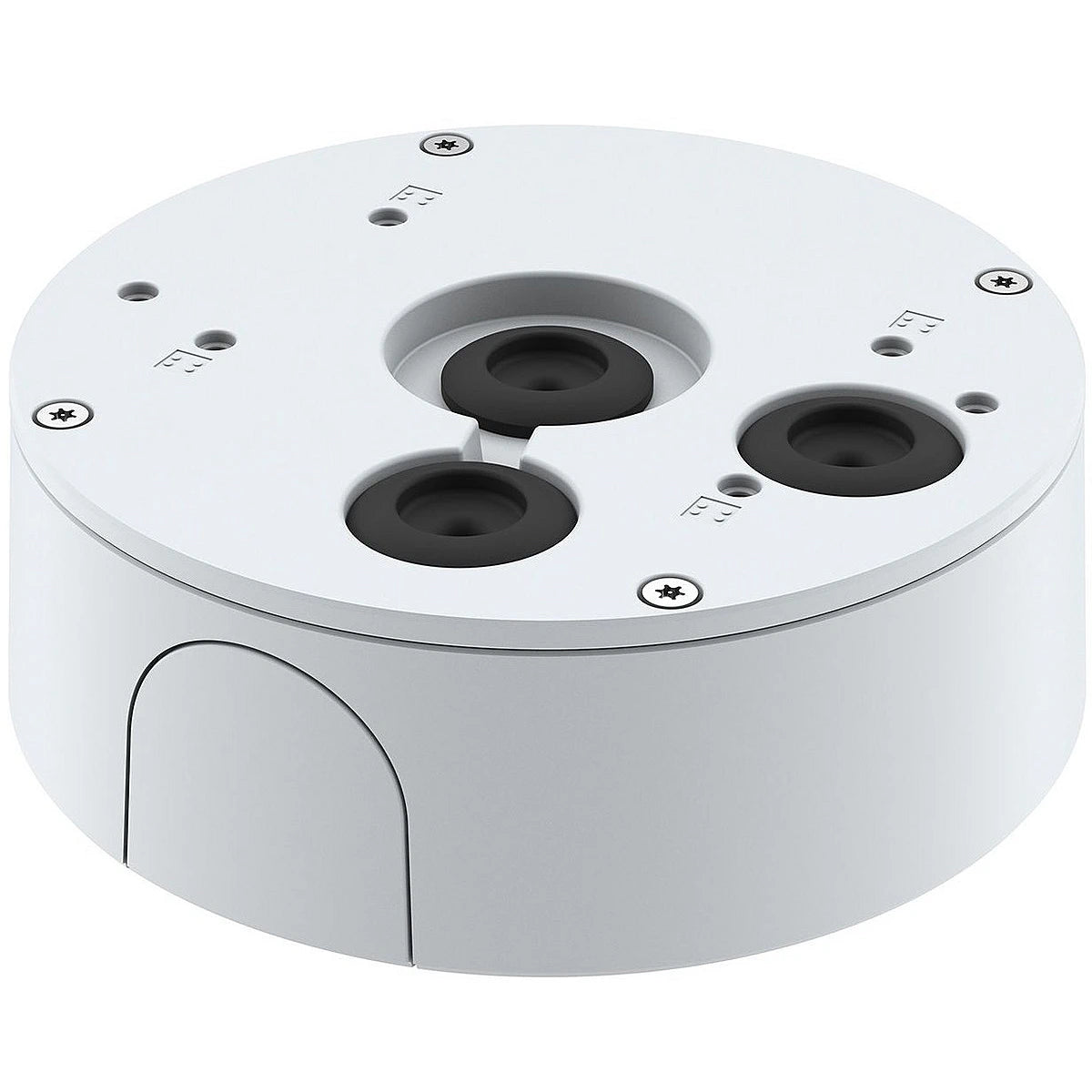

AXIS T94S01P Conduit Back Box

The AXIS T94S01P Conduit Back Box is an outdoor-ready, impact-resistant (IK10+) back box designed for mounting Axis network cameras. This versatile back box offers an ingress-protected (IP66/IP67) compartment for secure storage of connectivity devices, such as IP-over-COAX adapters or network cable couplers, allowing for safe installation of both the camera and connectivity device at the same point without additional cabinets. Its robust design makes it ideal for harsh outdoor environments, providing reliable protection against dust, water, and vandalism.

Key Features:

• Outdoor-Ready: IP66/IP67-rated for protection against dust, water, and harsh weather conditions.
• Impact-Resistant: IK10+ rating for high protection against vandalism.
• Integrated Connectivity Device Storage: Provides a secure compartment for storing connectivity devices such as cable couplers or IP-over-COAX adapters.
• Conduit Interface: Features ¾” / M25 conduit entrances on both the side and back for flexible cable routing.
• Compatibility: Supports a wide range of Axis network cameras, including AXIS P32, P33, Q35, and Q36 series.

Technical Specifications:

• Material: Powder-coated aluminum casing with stainless steel screws (TX20)
• Cable Routing: Back: 3 cable holes; Sides: 3/4” conduit entrances; Top: 3x gaskets C M20 (5–9.5 mm)
• Dimensions: Height: 53.5 mm (2 1/8 in), Diameter: 157 mm (6 3/16 in)
• Maximum Load: 2.3 kg (5 lb)
• Weight: 750 g (1.65 lb)
• Environment: Indoor/Outdoor
• Approvals: IK10+, IP66/IP67, NEMA 250 Type 4X

For more information about the AXIS T94S01P Conduit Back Box, visit the Axis product page.
