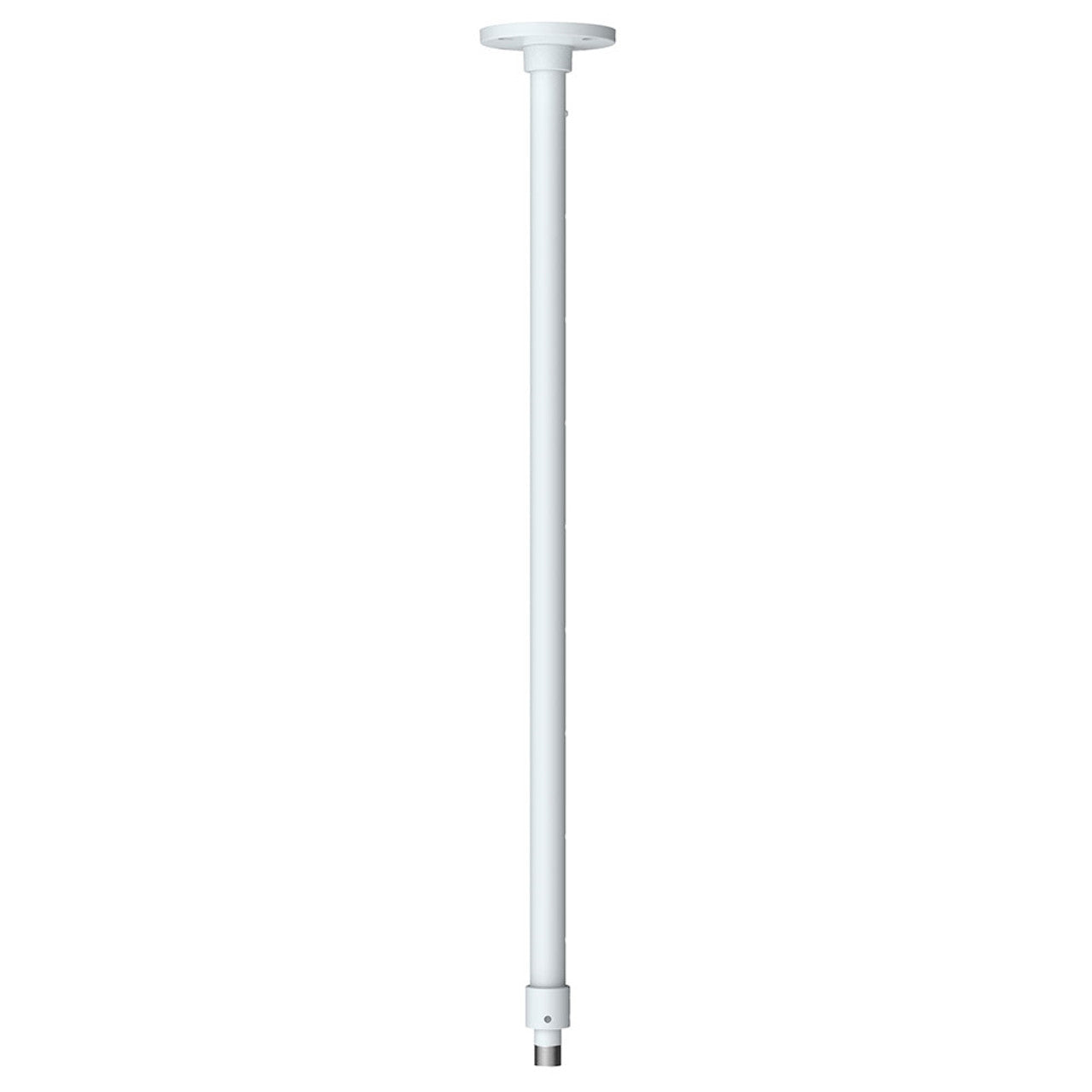

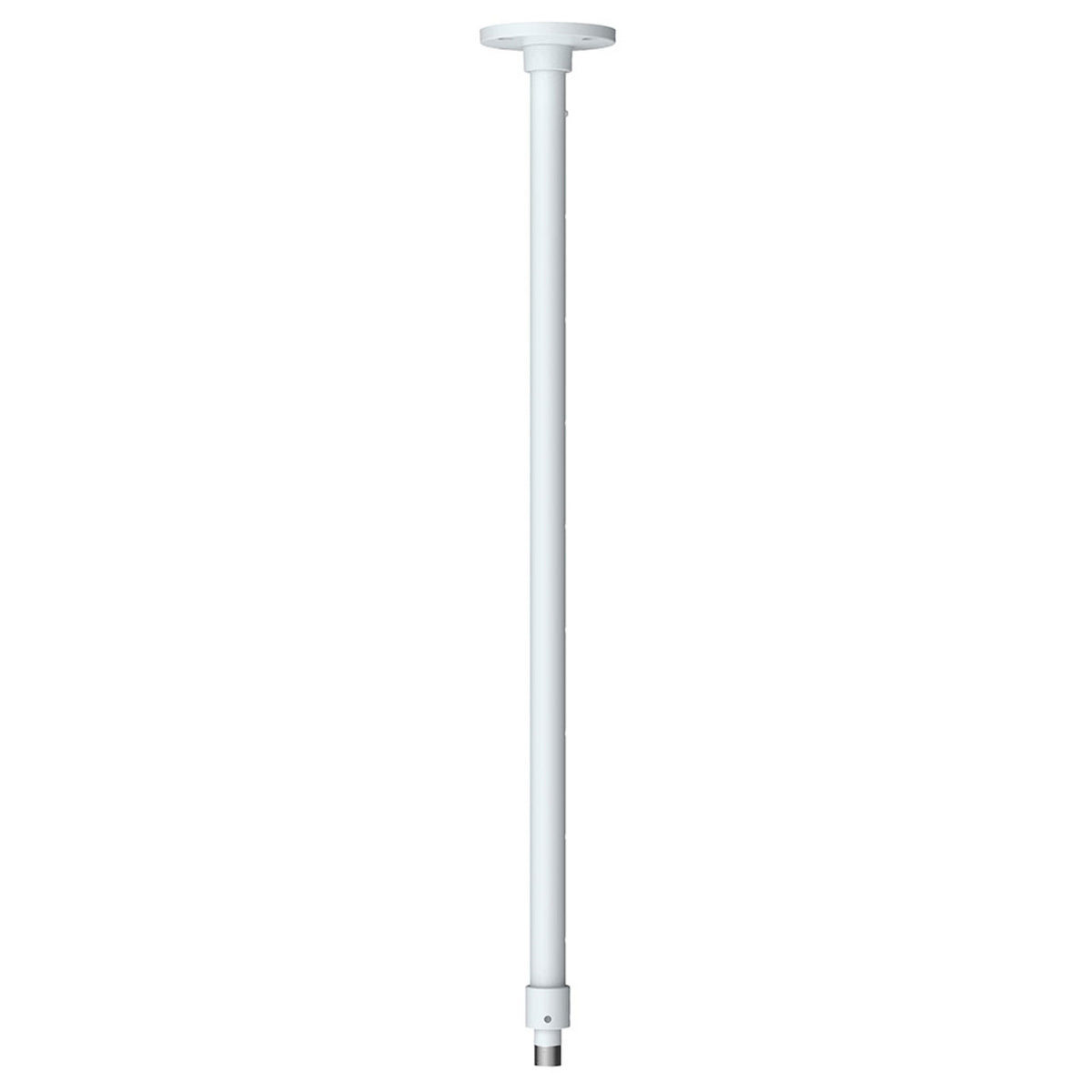

AXIS T91B53 Telescopic Ceiling Mount

The AXIS T91B53 Telescopic Ceiling Mount offers an affordable and flexible installation solution for retail and commercial environments, especially where fixed dome or box cameras need to be mounted under high ceilings. With its telescopic functionality, this ceiling mount allows easy adjustment of the extension length from 1m (3.2 ft) to 1.8m (6 ft) at 10 cm (4”) intervals. The base of the mount is compatible with the AXIS T94F01P Conduit Back Box, ensuring safe cabling through 1/2” (M20) conduit pipes. This lightweight yet robust ceiling mount can also be installed horizontally on walls when secured with the AXIS Safety Wire.

Key Features:

• Flexible Installation: Extendable between 1 to 1.8 m (3.2 to 6 ft) for versatile mounting heights.
• Robust and Lightweight Design: Made from powder-coated aluminum, IK08 impact-resistant for durability in various environments.
• Compatibility: Works with Axis pendant kits and camera holders with 3/4” conduit interface for a wide range of Axis cameras.
• Indoor Use: Ideal for retail and commercial spaces, supporting secure ceiling and wall installations.
• Easy Cable Routing: Supports side and back cable routing options for clean installations.

Technical Overview:

• Recommended for: Retail and commercial environments requiring secure and flexible ceiling or wall mounting solutions for Axis cameras.
• Material: Powder-coated aluminum, IK08 impact-resistant casing, PVC-free.
• Mounting Options: Ceiling or wall (requires safety wire for wall installation).
• Dimensions: Minimum height: 1 m (39.3 in), Maximum height: 1.8 m (70.8 in) for ceiling mount; 1 m (39.3 in) for wall mount.
• Weight: 1.2 kg (2.6 lb).
• Maximum Load: Supports up to 1.6 kg (3.5 lb).
• Approvals: Compliant with IEC/EN/UL 62368-1 safety standards, IK08 environment rating, and other relevant certifications.
• Included Accessories: Installation guide, Screw and Nut kit.

You can check the related tab for the Axis T91B53 datasheet.
