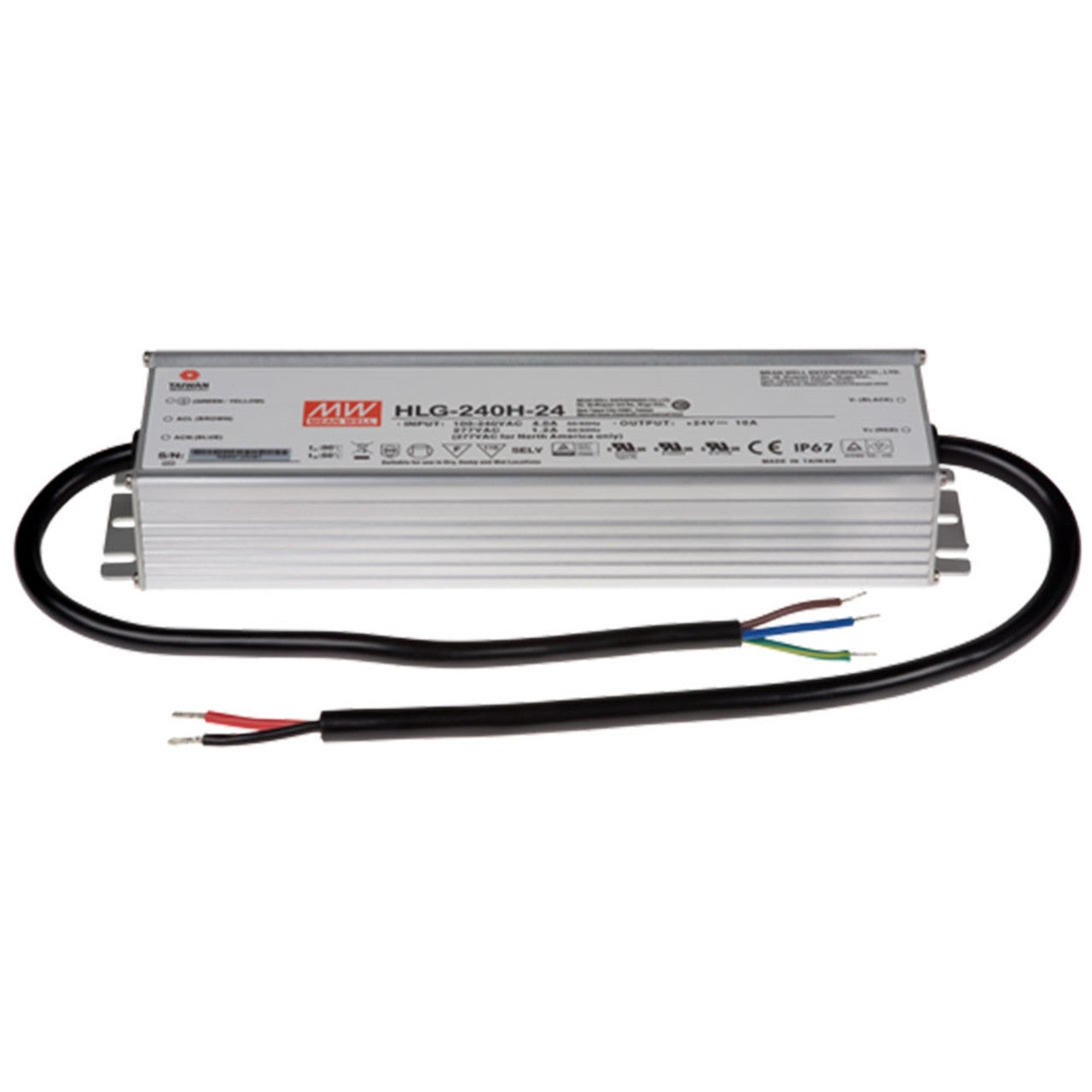

AXIS PS24 Power Supply 240 W

The AXIS PS24 Power Supply delivers dependable 24 VDC output at 240 watts, specifically built to power Axis network devices in harsh conditions. Housed in an IP67-rated enclosure, it ensures protection against water, dust, and extreme weather. With support for temperatures as low as -40°F and as high as 158°F, it performs even in the most challenging installations. When operating above 122°F (50°C), output power automatically adjusts to a minimum of 60% to maintain device safety. Ideal for outdoor surveillance setups, the PS24 offers a single connection and includes global input voltage support, making it a versatile solution for industrial or remote network applications.

Key Features:

• Reliable 24V Output: Provides consistent 24 VDC output for compatible Axis devices and accessories
• High Total Wattage: Capable of delivering up to 240 watts of power for larger deployments
• IP67 Protection: Fully sealed enclosure resists water, dust, and weather conditions for outdoor use
• Extreme Temperature Support: Operates from -40°F to 158°F, with automatic power adjustment above 122°F
• Global Input Compatibility: Accepts 100 to 240 VAC at 50/60 Hz, compatible with international power standards
• Compact Form Factor: Designed for easy integration into various outdoor installations
• Regulatory Certification: CE-certified to ensure compliance and safety standards

Technical Specifications:

• Model: AXIS PS24 (01170-001)
• Input Power: 100 to 240 VAC, 50 / 60 Hz at 4 A
• Output Voltage: 24 VDC
• Total Wattage: 240 W
• Max Output Reduction: Drops to 60% (144 W) when ambient temperature exceeds 122°F (50°C)
• Number of Output Connections: 1
• Environmental Protection: IP67 rated (dustproof and waterproof)
• Operating Temperature: -40 to 158°F (-40 to 70°C)
• Operating Humidity: 20% to 95% (non-condensing)
• Certifications: CE
• Enclosure Dimensions (Boxed): 12.3 x 4.5 x 4.4 in
• Weight (Boxed): 3.03 lb (1.37 kg)
