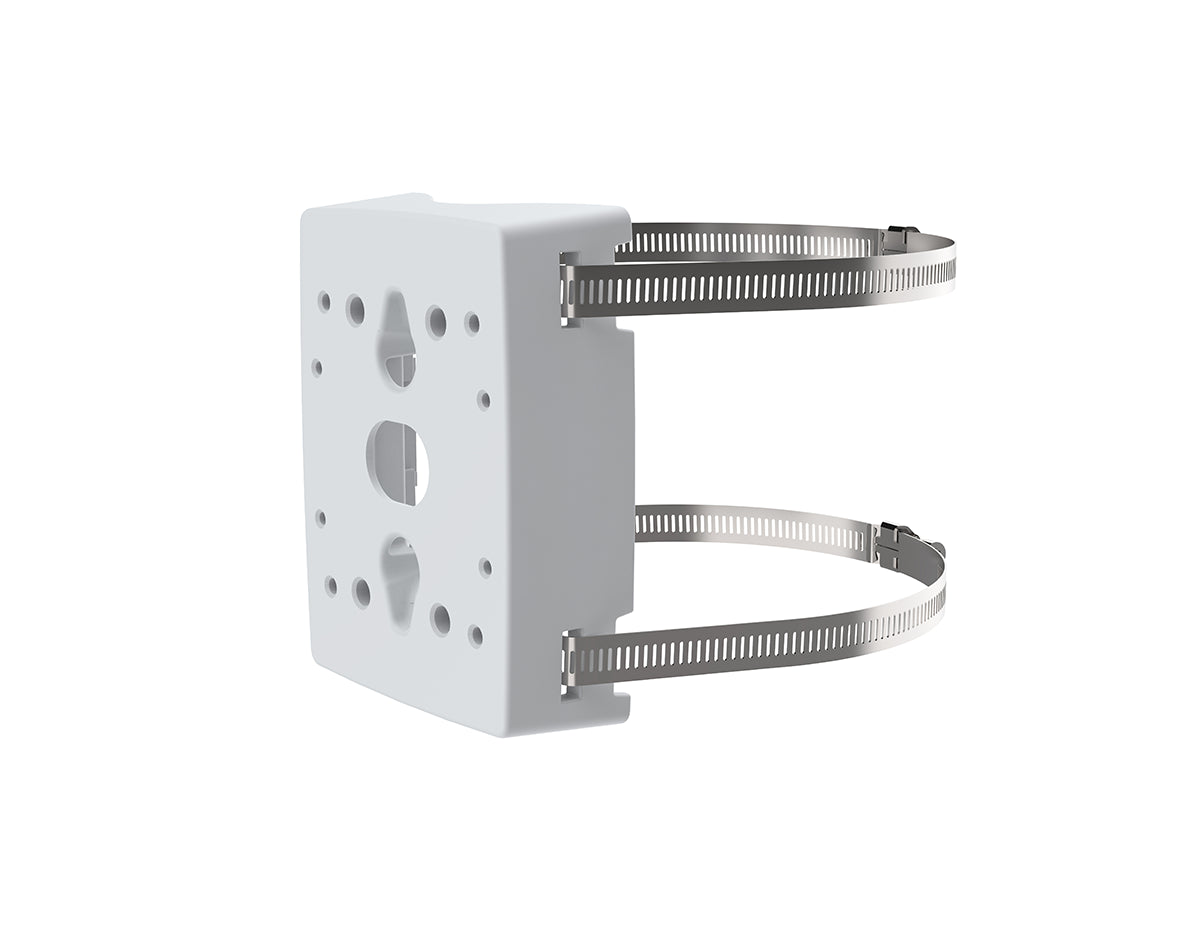

AXIS T91B47 100-410mm Pole Mount (01164-001)

Name: AXIS T91B47 100-410mm Pole Mount (01164-001)
Brand: Axis
SKU: 01164-001-NEW
Price: 105.0 USD
Availability: InStock

Part Number: 01164-001

Technical Details

Powder-coated aluminum (white NCS S 1002-B), Maximum Load: 15 kg (33 lb), Operating Environment: Indoor and outdoor use.

$105.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS T91B47 Pole Mount (01165-001)

The AXIS T91B47 Pole Mount is a versatile and durable mounting solution designed for both indoor and outdoor use. It supports a wide range of Axis network cameras, making it ideal for surveillance setups on poles or beams. Available in two models, the mount is compatible with poles ranging from 50-150 mm (2-6 in) or 100-410 mm (4-16 in) in diameter. The robust design features marine-grade stainless steel straps and offers IK10-rated vandal resistance and NEMA 4X corrosion protection, ensuring longevity in harsh environmental conditions.

Key Features:

Wide Compatibility: Supports a variety of Axis fixed box, bullet, and dome cameras, as well as thermal cameras.
Durable Construction: Made with IK10-rated powder-coated aluminum and NEMA 4X corrosion protection for long-lasting use in harsh environments.
Flexible Installation: Available in two versions to fit poles with diameters of 50-150 mm or 100-410 mm. This one is 50-150mm.
Cable Management: Features back and side cable routing options for clean and safe installation.
Safe and Easy Installation: No additional accessories are required when mounting Axis fixed dome or bullet cameras.

Technical Specifications:

Material: Powder-coated aluminum (white NCS S 1002-B)
Pole Diameter: 50–150 mm (2–6 in) or 100–410 mm (4–16 in)
Maximum Load: 15 kg (33 lb)
Dimensions: 111 x 42 x 147 mm (4 3/8 x 1 5/8 x 5 13/16 in)
Weight: 0.3 kg (0.7 lb) without steel straps
Approvals: IK10, NEMA 4X, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22
Operating Environment: Indoor and outdoor use

Properties

Product Name	AXIS T91B47 Pole Mount (01165-001)
Description	The AXIS T91B47 Pole Mount is a robust, versatile mounting solution compatible with a variety of Axis network cameras, ideal for pole-mounted surveillance in indoor and outdoor settings. Available in two models, it supports poles with diameters ranging from 50-150 mm (2-6 in) and 100-410 mm (4-16 in). Its durable construction features IK10-rated vandal resistance and NEMA 4X corrosion protection.
Compatibility	Supports Axis fixed box, bullet, dome, and thermal cameras
Construction Material	Powder-coated aluminum (white NCS S 1002-B) with marine-grade stainless steel straps
Pole Diameter	Supports pole diameters of 50–150 mm (2–6 in)
Cable Routing	Back and side cable management for clean installation
Installation Requirements	No additional accessories required for mounting Axis fixed dome or bullet cameras
Load Capacity	Supports up to 15 kg (33 lb) of equipment
Impact Resistance	IK10-rated for high durability in harsh environments
Corrosion Protection	NEMA 4X-rated for protection against environmental damage
Dimensions	111 x 42 x 147 mm (4 3/8 x 1 5/8 x 5 13/16 in)
Weight	0.3 kg (0.7 lb) without steel straps
Usage	Flexible mounting for poles in various surveillance setups
Environmental Suitability	Indoor and outdoor use in harsh environments
Compliance	Complies with IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 standards
Color	Axis standard white finish for seamless integration

Specifications

Material Composition	Powder-coated aluminum with marine-grade stainless steel straps for weather resistance
Pole Compatibility	Designed for poles with diameters of 100–410 mm (4–16 in)
Maximum Load Capacity	Supports up to 15 kg (33 lb)
Cable Routing Options	Features both back and side cable access for clean installation
Environmental Protection	NEMA 4X-rated for corrosion resistance in harsh environments
Impact Protection	IK10-rated for protection against vandalism and tampering
Dimensions	111 x 42 x 147 mm (4 3/8 x 1 5/8 x 5 13/16 in) for streamlined mounting
Weight	0.3 kg (0.7 lb) without steel straps for ease of installation
Approvals	Complies with IK10, NEMA 4X, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 standards
Temperature Range	Engineered for stability across a wide temperature range for indoor and outdoor use
Color Consistency	Axis standard white (NCS S 1002-B) for cohesive installation
Security Compatibility	Ideal for securing Axis cameras in high-risk environments
Installation Accessories	No additional accessories required for mounting Axis dome or bullet cameras
Installation Type	Pole-mounted, suitable for flexible surveillance configurations
Maintenance	Low maintenance with high durability for long-term use
Reliability Rating	Engineered for continuous operation in harsh outdoor conditions
Environmental Compliance	RoHS compliant for sustainable installations
Design Integration	Seamlessly integrates with Axis camera systems for uniform setup
Logistics	Includes necessary mounting hardware for streamlined installation
