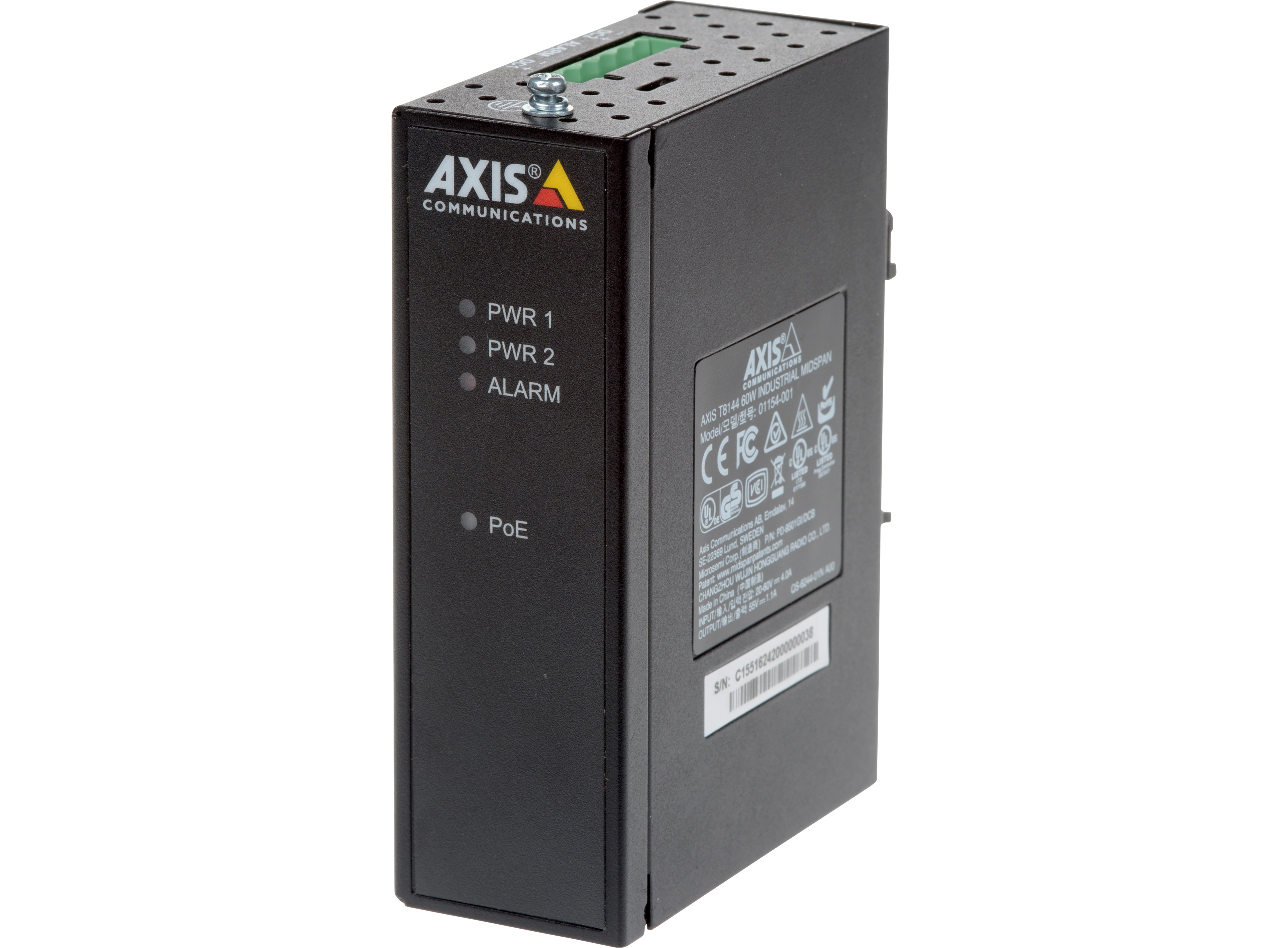

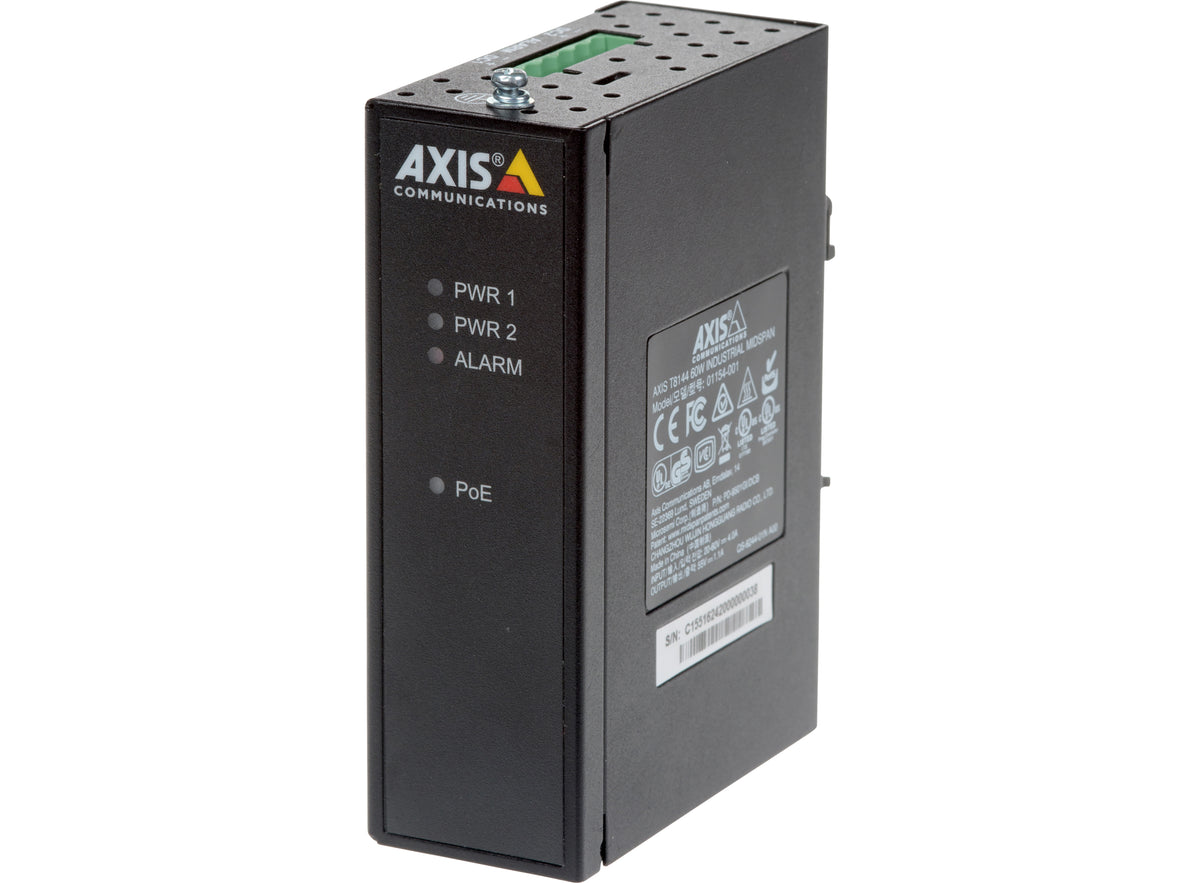

AXIS T8144 60 W Industrial Midspan

The AXIS T8144 60 W Industrial Midspan is an industrial-grade, 1-port midspan designed for powering network devices in harsh environments. With its robust construction, wide temperature range, and dual DC input for power redundancy, this midspan is ideal for industrial applications where reliable power delivery is essential. It supports Power over Ethernet (PoE) with up to 60 W of power, making it compatible with high-power Axis network devices. The AXIS T8144 is easy to install with plug-and-play functionality and can be mounted on walls or DIN rails for added versatility.

Key Features:

• 60 W Power over Ethernet: Provides up to 60 W of power for high-demand network devices.
• Wide Operating Temperature Range: Operates in extreme temperatures from -40 °C to 75 °C (-40 °F to 167 °F).
• Dual DC Input: Ensures power redundancy with support for 20-60 V DC input.
• Industrial-Grade Construction: Built to withstand harsh environments, ideal for industrial applications.
• Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices for easy setup.

Technical Specifications:

• Power Output: 55 V DC, max 60 W
• Input Voltage: 20-60 V DC, max 72 W
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
• Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), humidity max 95% RH (non-condensing)
• Dimensions: 78 x 36 x 111 mm (3.1 x 1.4 x 4.4 in)
• Weight: 315 g (0.7 lb)

For more information about the AXIS T8144 60 W Industrial Midspan, visit the Axis product page.
