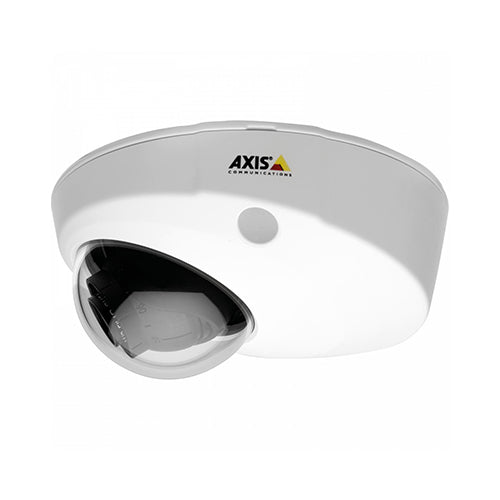

AXIS P3905-R MK II RJ45, 10 PCS NETWORK CAMERA

Accessories

Optional Accessories
Lenses	• 2.1 mm, F2.2: horizontal field of view 147° • 2.8 mm, F1.2: horizontal field of view 110° • 6 mm, F1.6: horizontal field of view 52° • 8 mm, F1.6: horizontal field of view 40°
Other	• AXIS T96B05 Outdoor Housing • AXIS T94D01S Mount Bracket • AXIS T94D02S Curved Mount Bracket • network coupler IP66 • network cable coupler indoor

Specifications

Specifications	AXIS P3905-R Mk II RJ45 Network Camera
Camera
Image sensor	1/2.9” Progressive scan RGB CMOS
Lens	3.6 mm, F2.0 Horizontal field of view: 87° Vertical field of view: 47° M12 mount, fixed iris See Optional accessories for exchangeable lenses
Light sensitivity	HDTV 1080p 25/30 fps with Lightfinder Color: 0.15 lux at 50 IRE F2.0 Color: 0.06 lux at 30 IRE F2.0 Color: 0.08 lux at 50 IRE F1.2 Color: 0.04 lux at 30 IRE F1.2
Shutter speed	1/32500 s to 2 s
Camera angle adjustment	Pan: ±30° Tilt: 15-90° Rotation: ±175°
System on chip (SoC)
Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Resolution	1920x1080 to 160x90
WDR	WDR - forensic capture
Frame rate	Up to 25/30 fps (50/60 Hz) in all resolutions
Video streaming	Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264
Image settings	Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, fine-tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, text and image overlay, 20 individual privacy mask, mirroring of images, Traffic Light mode
Pan/Tilt/Zoom	Digital PTZ, preset positions, guard tour, control queue
Network
Security	Password protection, IP address filtering, HTTPS* encryption, network access control, digest authentication, user access log, centralized certificate management *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF® Profile G and ONVIF® Profile S,
Event conditions	Analytics, time scheduled, edge storage events
Event actions	Record video: SD card and network share Upload images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text
Data streaming	Event data
Built-in installation aids	Pixel counter
Analytics
Applications	Included AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm* Supported AXIS Perimeter Defender Support for AXIS Camera Application Platform *: For detection of tampering attempts in static and non-crowded scenes.
General
Casing	Aluminum and polycarbonate casing
Sustainability	PVC free
Mounting	Inside vehicles and rolling stock (For outdoor applications, use AXIS T96B05 Outdoor Housing)
Memory	512 MB RAM, 256 MB Flash
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 2.9 W, max 3.6 W
Connectors	RJ45: male, 10BASE-T/100BASE-TX All connectors support PoE
Storage	Support for microSD/microSDHC/microSDXC card and encryption Support for recording to network-attached storage (NAS)
Operating conditions	Normal: -40 °C to 60 °C (-40 °F to 140 °F) Maximum (intermittent): 70 °C (158 °F) Arctic Temperature Control: start-up at -40 °C (-40 °F) Humidity: 10-100% RH
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
Approvals	EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, EAC Safety IEC/EN/UL 62368-1, EN 45545, UN ECE R118, parts of NFPA 130*, IS 13252 Environment IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66/67, NEMA 250 Type 4X, IEC/EN 62262 IK08, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155:2017 Class OT2/ST2 (EN 50155:2007 Class TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78 Network NIST SP500-267 *: ASTM E162 and the non-flaming parts of ASTM E662
Dimensions	Height: 49 mm (1 15/16 in), ø 109 mm (4 3/16 in)
Weight	RJ45: 241 g (0.53 lb)
Included accessories	Installation guide, Windows® decoder 1-user license, drill hole template, top cover tool, lens tool, Allen key Resistorx®
Video management software	AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners available at axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Warranty	5-year warranty

Properties

Properties	AXIS P3905-R Mk II RJ45 Network Camera
Description	The AXIS P3905-R Mk II Network Camera is designed for vehicle surveillance, featuring a rugged, compact design with IP66/IP67 rating for durability. With HDTV 1080p resolution, WDR, and Lightfinder, it excels in diverse lighting conditions. Compliance with EN 50155:2017 Class OT2/ST2 ensures reliability in transportation. The camera supports Zipstream for efficient bandwidth use and includes Traffic Light mode for color recognition in dark scenes. Optional accessories are available for outdoor installation and broader field of view.
Product Family	AXIS P3905-R Mk II Network Camera
Product Type	Camera
