| Specifications |

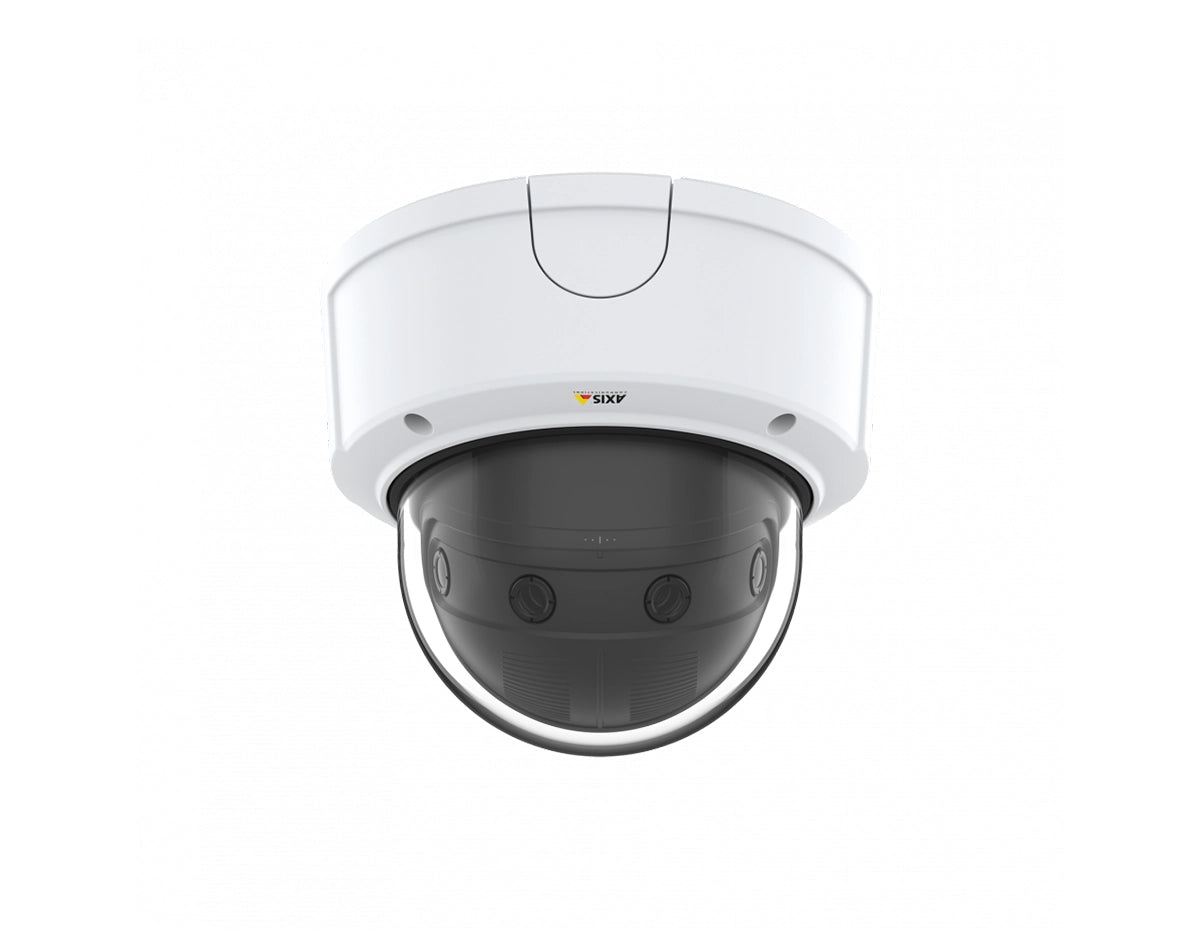

AXIS P3807-PVE Panoramic Camera |
| Camera |
| Image sensor |
4 x 1/2.9” progressive scan RGB CMOS |
| Lens |
Fixed 3.2 mm, F2.0 |
| Horizontal field of view: 180° |
| Vertical field of view: 90° |
| M12 mount |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.17 lux, F2.0 |
| B/W: 0.05 lux, F2.0 |
| Shutter speed |
1/33500 to 1/10 s |
| Camera angle adjustment |
Pan ±180° |
| Tilt 0°, 35°, 45°, 55° |
| Roll ±5° |
| System on chip (SoC) |
| Model |
ARTPEC-6 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| Motion JPEG |
| Resolution |
4320x1920 to 480x270 |
| Frame rate |
8.3 MP (client dewarp): up to 25/30 fps (50/60 Hz) without WDR, |
| up to 12.5/15 fps (50/60 Hz) with WDR |
| 7.5 MP (dewarped): up to 12.5/15 fps (50/60 Hz) |
| Video streaming |
8.3 MP (client dewarp): 1 individually configurable stream in |
| H.264 and Motion JPEG |
| 7.5 MP (dewarped): 2 individually configurable streams in H.264 |
| and Motion JPEG |
| Axis Zipstream technology in H.264 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264 |
| Image settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: up to |
| 120 dB depending on scene, white balance, day/night threshold, |
| exposure mode, compression, dynamic text and image overlay, |
| exposure control, noise reduction, fine tuning of behavior at low |
| light, polygon privacy masks |
| Audio |
| Audio output/output |
Two-way audio connectivity via AXIS T61 Audio and I/O |
| Interfaces with portcast technology |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS* , SSL/TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T |
| Event triggers |
Analytics, edge storage events, shock detection |
| MQTT subscribe |
| Event actions |
Day/night mode, overlay text, video recording to edge storage, |
| pre- and post-alarm video buffering, send SNMP trap |
| File upload: FTP, SFTP, HTTP, HTTPS network share, email |
| Notification: email, HTTP, HTTPS TCP |
| MQTT publish |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter, leveling guide |
| Analytics |
| Applications |
Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, |
| AXIS Video Motion Detection, active tampering alarm |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Casing |
IP66-/IP67- and NEMA 4X-rated, IK10-rated impact-resistant |
| casing with polycarbonate hard coated clear dome, aluminum |
| base and dehumidifying membrane |
| Color: white NCS S 1002-B |
| For repainting instructions of skin cover |
| , contact your Axis partner. |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) |
| ¾” (M25) conduit side entries |
| Sustainability |
PVC free |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, |
| typical 7 W, max 12.9 W |
| Connectors |
Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces |
| with portcast technology |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Support for recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-30 °C to 50 °C) (-22 °F to 122 °F) |
| -20 °C to 50 °C (-4 °F to 122 °F) when using AXIS T61 Audio |
| and I/O Interface Series |
| Maximum temperature (intermittent): 60 °C (140 °F) |
| Humidity 10–100% RH (condensing) |
|
|
| Approvals |
EMC |
| EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, |
| EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, |
| ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, |
| KC KN32 Class A, KC KN35 |
| Safety |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IS 13252 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, |
| IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, |
| IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, |
| NEMA TS 2 (2.2.7-2.2.9) |
| Network |
| NIST SP500-267 |
|
|
|
|
| Weight |
2.0 kg (4.5 lb) |
| Mounting height |
Recommended: 4–15 m |
| Included accessories |
Installation guide, Windows decoder 1-user license, Resistorx® |
| L-key, weathershield, mounting bracket, cable gasket, Axis |
| U-shape conduit adapter 30 mm |
| Video management software |
AXIS Companionb , AXIS Camera Station, video management software from Axis Application Development Partners available on axis.com/vms (Compatible with 7.5 MP (dewarped) only) |
|
|
|
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) |
| Approvals |
EMC |
| EAC, EN 55032 Class A, EN 55035, EN 50121-4, |
| IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, |
| RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, |
| CISPR 24, CISPR 35 |
| Safety |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, |
| CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, |
| IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, |
| IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, |
| NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, |
| 505.7, 506.6, 507.6, 509.7, 512.6) |
| Network |
| NIST SP500-267 |
| Dimensions |
Height: 170 mm (6.6 in) |
| Width in diameter: 195 mm (7.6 in) |

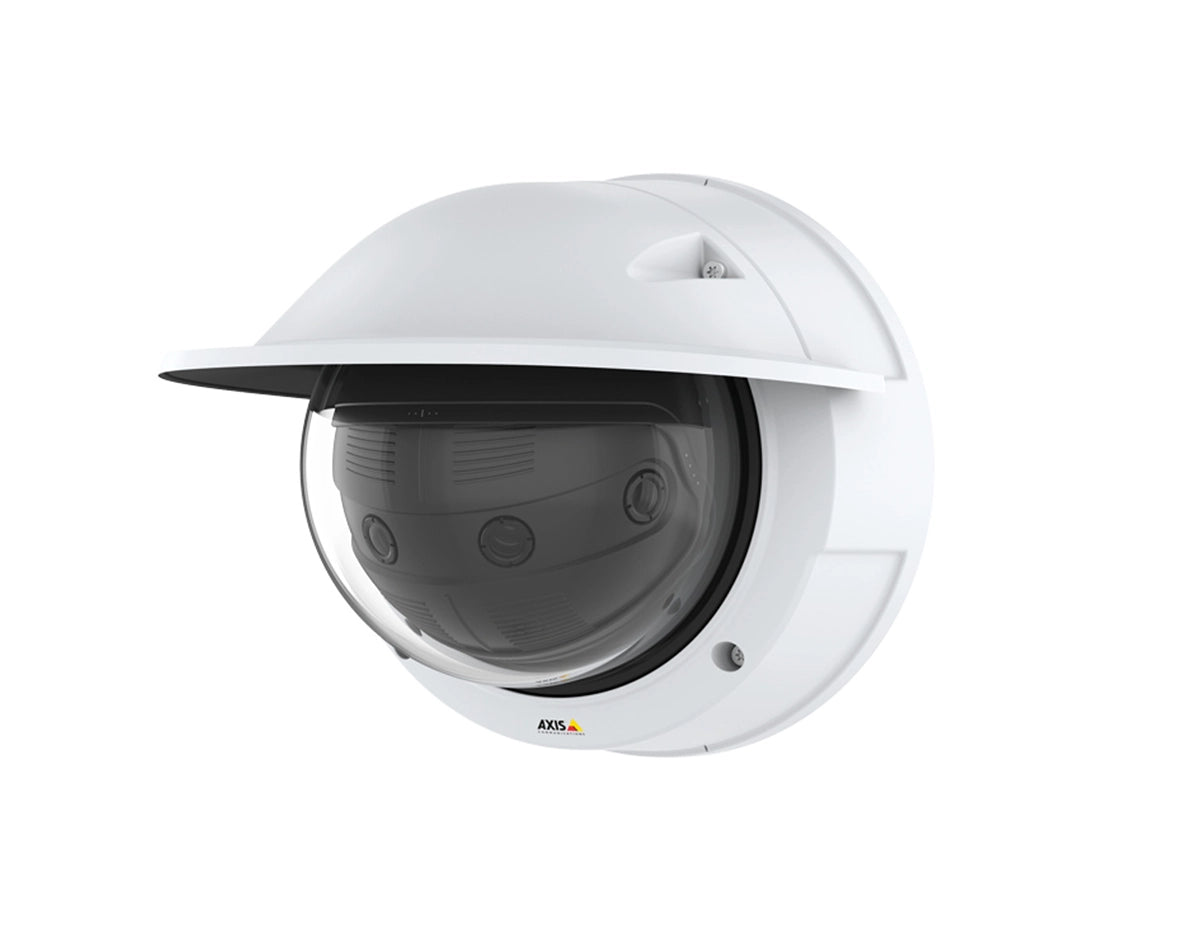

| With weathershield: |
| Height 221 mm (8.7 in) |
| Width 206 mm (8.1 in) |
| Weight |
2.2 kg (4.9 lb) |
| Mounting height |
Recommended: 4–15 m |
| Included accessories |
Installation guide, Windows® decoder 1-user license, |
| weathershield, RESITORX® T20 bit, connector guard |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
